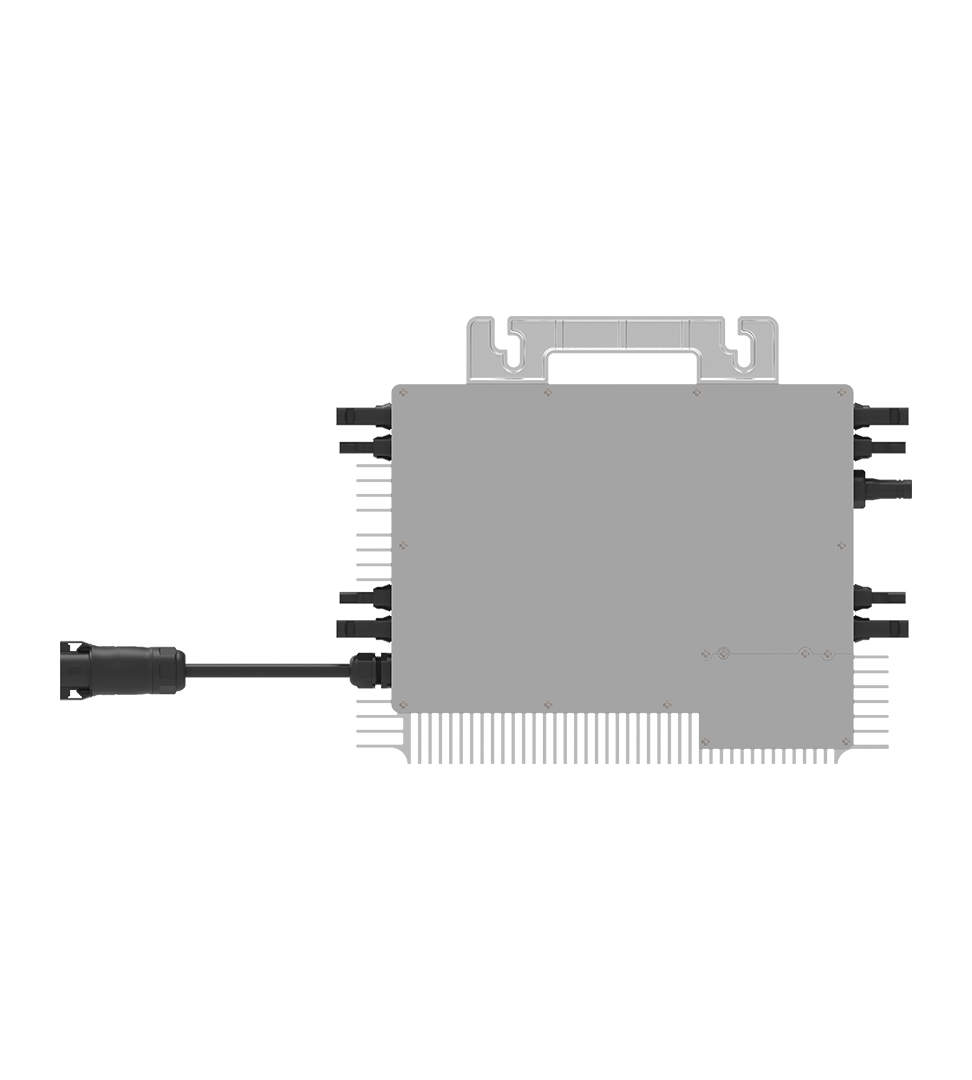

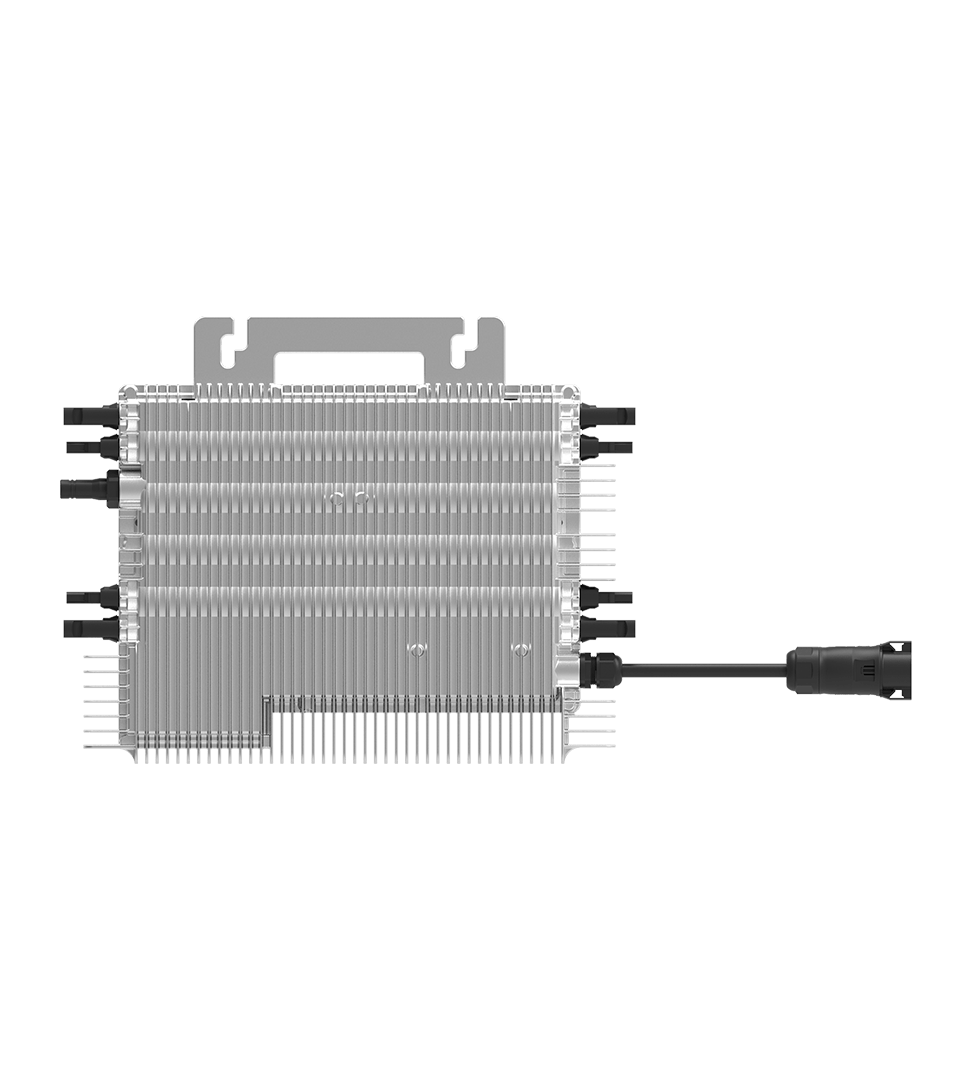

Deye Micro Inverter| SUN-M200G4-EU-Q0

Price
€265,00
€265,00
Availability In Stock
14 Days Return Policy
VAT included
Up to 10 Years Warranty

2000W & 15A Ultra-Power: Easily supports 4 extra-large PV panels (up to 700W each) for maximum solar harvesting.

True 4-MPPT Optimization: Four independent trackers eliminate shadow effects, boosting energy yield on any roof or balcony.

Built-in NA Relay (EU Compliant): Meets strict VDE standards. No external boxes, no messy wiring—just a clean, safe installation.

Built-in Wi-Fi Monitoring: Track real-time energy data directly on the Deye Cloud App without buying extra hubs.

IP67 Rating & 10-Year Warranty: Fully weatherproof (-40°C to +65°C) and backed by an official decade-long guarantee.

Deye Micro Inverter| SUN-M200G4-EU-Q0

€265,00

Key Features

Independent Channels. Unstoppable Performance.


Got complex roofs, varying angles, or partial shading? No problem. Equipped with 4 fully independent MPP trackers, the SUN-M200G4-EU-Q0 ensures every single panel performs at its absolute best. Seamlessly compatible with modern, high-power PV modules—with the M200G4 supporting up to a massive 700W per channel—this microinverter guarantees maximum energy harvest in any challenging condition.

2000WRated Output Power
700WMax PV Input per Channel
4 IndependentMPP Trackers

DEYECLOUD app requires 2.4GHz Wi-Fi. Module-level monitoring enabled by default.

DOWNLOADS & DOCUMENTS

SUN-M130/160/180/200/220G4-EU-Q0Datasheet SUN-M130/200G4-EU-Q0 InstructionsUser Manual

Technical Specifications

Max. PV Input Power (W)
210-700 (4 Pieces)
Max. PV Input Voltage (V)
60
Start-up Voltage (V)
20
MPPT Voltage Range (V)
25–55
Rated PV Input Voltage (V)
42.5
Max. Input Short-Circuit Current (A)
22.5+22.5+22.5+22.5
Max. Operating PV Input Current (A)
15+15+15+15
No. of MPP Trackers / Strings per Tracker
4 / 1
Rated AC Output Active Power (W)
2000
Max. AC Output Apparent Power (VA)
2000
Rated AC Output Current (A)
9.1 / 8.7
Max. AC Output Current (A)
9.1 / 8.7
Rated Output Voltage / Range (V)
220 / 230, 0.85Un–1.1Un
Grid Connection Form
L/N/PE
Rated Output Grid Frequency / Range (Hz)
50 Hz / 45–55 Hz, 60 Hz / 55–65 Hz
Max. Units per Branch
3
Power Factor Adjustment Range
0.9 leading to 0.9 lagging
Total Current Harmonic Distortion (THDi)
<3%
DC Injection Current
<0.5% In
Max. Efficiency
96.5%
Euro Efficiency
96%
MPPT Efficiency
>99%
DC Reverse Polarity Protection
YES
AC Output Overcurrent Protection
YES
AC Output Overvoltage Protection
YES
AC Output Short Circuit Protection
YES
Thermal Protection
YES
Insulation Impedance Detection
YES
Anti-islanding Protection
YES
Surge Protection Level
Type II (AC)
Communication Interface
Wi-Fi
Operating Temperature Range
-40°C to +65°C
Permissible Ambient Humidity
0–100%
Permissible Altitude
2000 m
Noise
≤25 dB
Ingress Protection (IP) Rating
IP67
Inverter Topology
Isolated
Over Voltage Category
OVC II (DC), OVC III (AC)
Cabinet Size W×H×D (mm)
311×250.5×36.5 (excl. connectors & brackets)
Weight (kg)
5.1
Warranty
10 Years
Type of Cooling
Natural Cooling
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G99, VDE-AR-N 4105
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

What's in the Box

  1. 1 Deye Micro Inverter (SUN-M130/160/180/200/220G4-EU-Q0-I)x1
  2. 2 LY01 / Betteri BC01 DC Connector Adapterx1
  3. 3 AC Waterproof Connectorx1
  4. 4 Quick Installation Guidex1

Frequently Asked Questions

You can connect up to 4 solar panels to a single unit. The inverter is equipped with 4 independent MPP trackers, each monitoring and optimising one panel individually — ensuring maximum output even when panels face different directions or experience partial shading.

No. These microinverters feature built-in Wi-Fi communication, allowing you to connect and monitor the system directly through the Deye Cloud APP without needing any additional gateway devices. Module-level data is available in real time at no extra cost.

The SUN-M220G4-EU-Q0-I supports a maximum PV input power of 210–770W per channel across all 4 independent MPPT inputs, making it ideal for modern large-format high-power panels used in both residential and commercial rooftop installations.

The entire SUN-M130/160/180/200/220G4-EU-Q0-I series comes with a standard 10-year warranty. This covers manufacturing defects and performance deviations under normal operating conditions. EU statutory consumer rights (2-year guarantee) and a 14-day right of return also apply to all orders.

Yes. These inverters carry an IP67 ingress protection rating, making them completely waterproof and dustproof. They operate safely in extreme ambient temperatures ranging from -40°C to +65°C — handling Nordic winters and Mediterranean summers alike without performance loss.

The SUN-M130G4 through SUN-M200G4 models support a maximum operating PV input current of 15A per channel (15+15+15+15A). The SUN-M220G4 model upgrades this to 18A per channel (18+18+18+18A), covering the latest high-current panel technology.

For the 2000W model (SUN-M200G4-EU-Q0-I), you can safely connect a maximum of 3 units per AC branch. For smaller models in the series, refer to the installation manual for the recommended maximum per branch based on your circuit breaker rating.

Yes. All models in the SUN-M130/160/180/200/220G4-EU-Q0-I series are equipped with a rapid shutdown function. In the event of a grid failure or emergency, the system instantly halts operation to ensure electrical safety and compliance with European and national grid safety standards.
