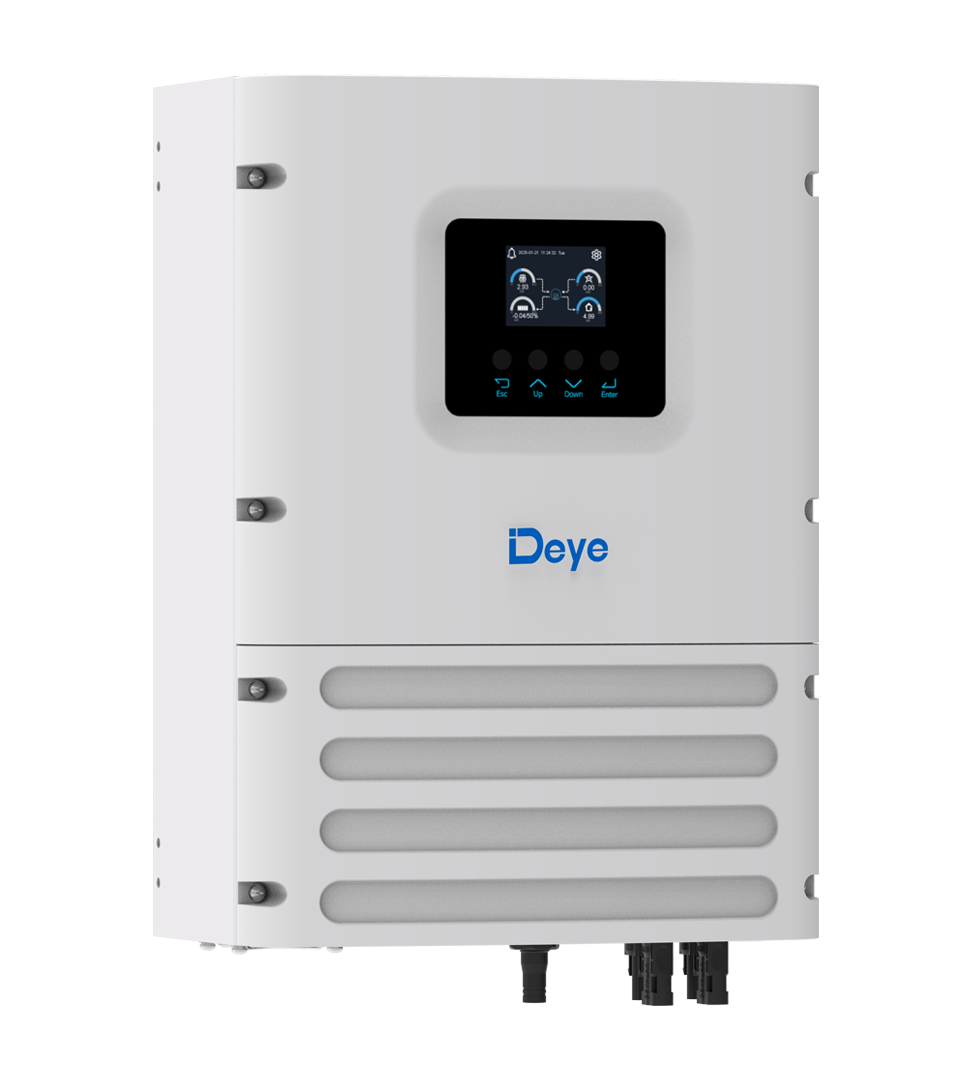

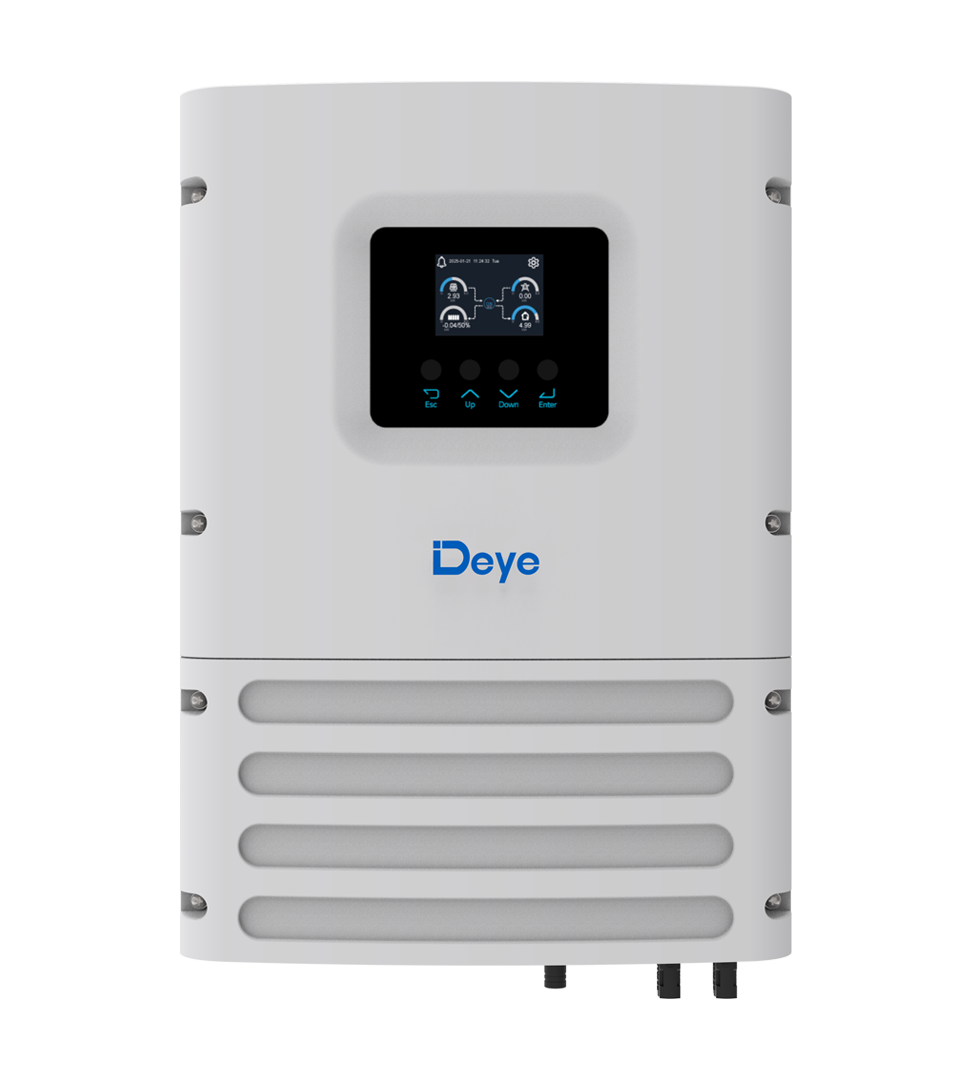

Deye Off-Grid Inveter| SUN-6K-OG01LP1-EU-AM2

Price
Availability Out Of Stock
14 Days Return Policy
VAT included
5 Years Warranty

12kW PV Oversizing (Dual MPPT): Supports up to 18A+18A input, perfectly matching the latest high-power panels to maximize solar yield in high-irradiance regions.

12kW Peak Surge (6kW Continuous): Pure sine wave 230V output effortlessly starts heavy inductive loads like water pumps and air conditioners.

135A Fast Charging: Highly flexible battery management compatible with 40-60V Lead-acid and Lithium-ion systems, featuring built-in BMS.

60Hz & Generator Auto-Match: Seamless 50/60Hz adaptation and smart generator integration (35A input) ensure 24/7 power in remote or unstable grid areas.

IP65 Tropicalized Design: Built for extreme outdoor conditions (up to +60°C) with integrated Type II DC/AC surge protection.

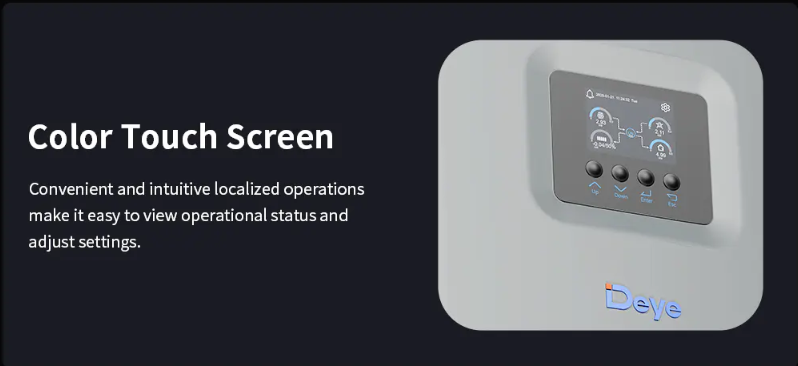

Smart Cloud Monitoring: Features an intuitive LCD display and versatile connectivity (WIFI/Bluetooth/CAN/RS485) for effortless remote management.

Compatible with 48V Lead-acid / Lithium Batteries

Deye Off-Grid Inveter| SUN-6K-OG01LP1-EU-AM2

€0,00

Key Features

Massive 12kW PV Access — Power Through the Clouds

Harness more energy than ever before. With support for up to 12,000W of solar panels, this inverter ensures your home stays powered even on overcast days.

12000WMax PV Access
9600WMax PV Input
500VMax Voltage

Dual MPPT Trackers — Optimize Every Angle

Maximize your roof's potential. Two independent MPPT trackers allow you to install solar panels on different roof orientations to capture peak sunshine.

2MPPT Trackers
18A+18AInput Current
150-425VMPPT Range

6kW Reliable Output — Power Your Whole Home

Run your heavy appliances without worry. Delivering 6000W of continuous pure sine wave power, it easily handles air conditioners and kitchen tools.

6000WRated Output
12000WPeak Power
26.1AMax Current

Smart Battery Flexibility — Lead or Lithium Choice

Compatible with both standard 48V Lead-acid and Lithium-ion batteries, featuring self-adaptive BMS communication for easy integration.

40-60VBattery Range
135AMax Charge
BMSSmart Adaptation

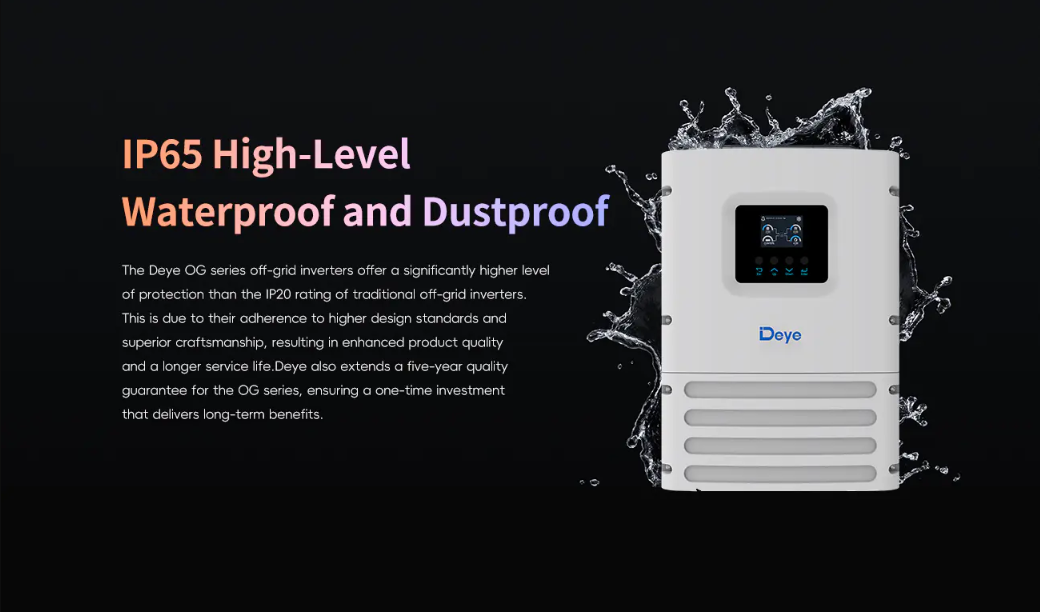

Built for Extreme Environments — IP65 Reliability

The IP65-rated enclosure provides total protection against dust and water, ensuring reliable operation in temperatures from -40°C to +60°C.

IP65Protection
-40~+60°CTemp Range
<55dBLow Noise

Built for Energy Autonomy

Easily Upgrade Your Existing Setup


Breathe new life into your current solar system. With built-in AC coupling support, you can easily add this inverter and battery storage to an existing grid-tied system without the need to replace your original equipment

Technical Specifications

Compatibility and electrical specs for battery storage
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range
40-60V
Max. Charging Current
135A
Max. Discharging Current
135A
Charging Strategy
Self-adaption to BMS
Solar panel input capacity and MPPT specs
Max. PV Access Power
12000W
Max. PV Input Power
9600W
Max. PV Input Voltage
500V
Start-up Voltage
125V
MPPT Voltage Range
150-425V
Max. Operating PV Input Current
18A+18A
No. of MPP Trackers
2
Power output ratings for household loads
Rated AC Output Power
6000VA / 6000W
Max. AC Output Power
6000VA / 6000W
Max. AC Output Current
26.1A
Peak Power
12000W (10s)
Rated Output Voltage
230V
Rated Output Frequency
50Hz / 60Hz
Output Waveform
Pure Sine Wave
System performance and safety features
Max. Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
>99%
Protection Rating
IP65
Surge Protection
TYPE II (DC), TYPE II (AC)
Physical and environmental specifications
Dimensions (WxHxD)
306 × 427.5 × 175.77 mm
Weight
12.65 kg
Operating Temperature
-40 to +60°C
Noise Level
<55 dB
Cooling
Intelligent Air Cooling
Warranty
5 Years Standard

DOWNLOADS & DOCUMENTS

DatasheetDatasheet User ManualUser Manual

What's in the Box

  1. 1 Deye 6kW Off-grid Inverter (SUN-6K-OG01LP1-EU-AM2)×1
  2. 2 WiFi Datalogger (Plug-in)×1
  3. 3 Wall Mounting Bracket×1
  4. 4 Stainless Steel Mounting Hardware Kit×1
  5. 5 User Manual & Warranty Documentation×1
  6. 6 Battery Connection Cables×1 pair

Frequently Asked Questions

It is a powerful 6kW off-grid hybrid inverter designed for energy independence, supporting massive solar arrays up to 12,000W.

This inverter supports up to 12,000W of total solar access power, with a maximum direct input of 9,600W.

Yes. With a 6,000W continuous output and 12,000W peak power (10s), it can easily start and run heavy inductive loads.

It is fully compatible with both 48V Lead-acid and Lithium-ion batteries with automatic BMS communication.

Yes. It features an IP65-rated enclosure, providing complete protection against dust and water jets.

It features two independent MPPT trackers (18A+18A), allowing for solar panel installation on different roof orientations.

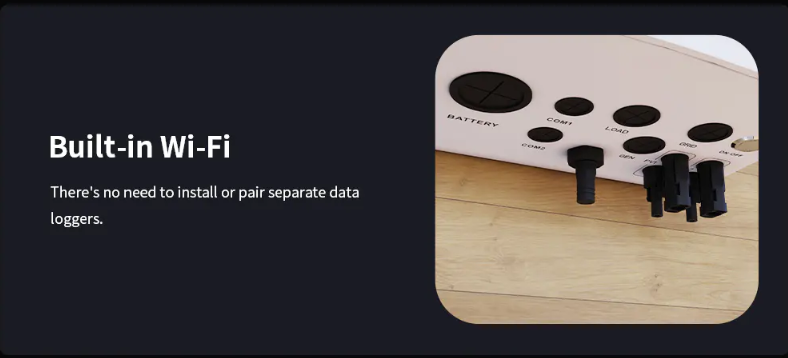

Absolutely. You can monitor production and battery status via the Deye Cloud App using the included WiFi datalogger.

The inverter is designed for extreme climates, operating reliably from -40°C to +60°C.

Yes, this model supports parallel operation to expand your total system capacity as your energy needs grow.

Deye provides a standard 5-year warranty on this model, with high-quality components designed for long service life.
