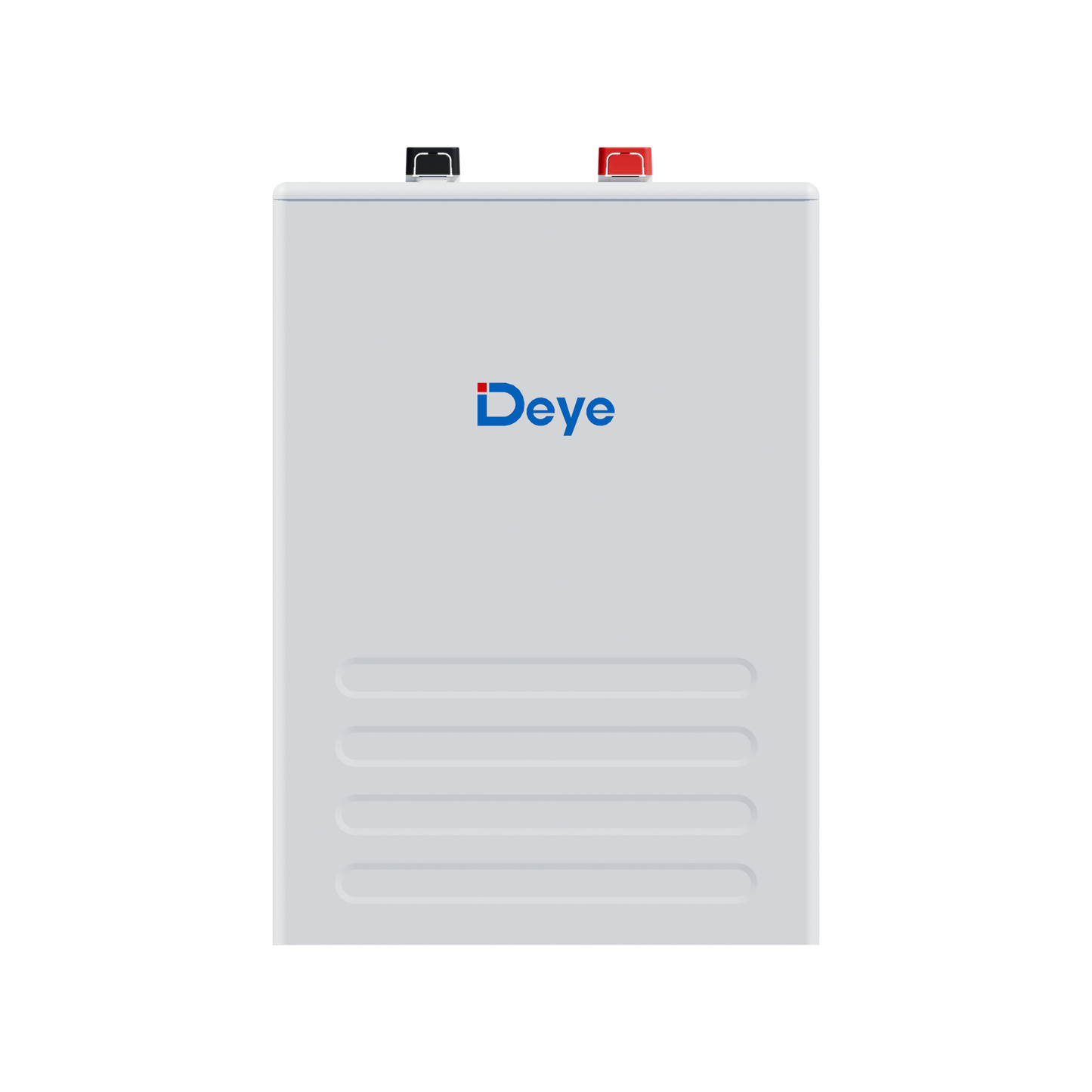

Deye Rozwiązanie do magazynowania energii | Seria SE-F | Bateria SE-F5

Dostępność Brak w magazynie
14 Days Return Policy
VAT included
5 Years Warranty

Konfigurowalny wygląd: Wersja Common / LED / Display

Kompleksowa ochrona: Zaawansowany BMS z aktywnym bezpiecznikiem

Doskonała wydajność: Obsługuje maks. 1C ładowania & 1,2C rozładowania (SE-F5 & F5 Plus)

Łatwa instalacja: Design plug-and-play z szybkozłączkami

Rozszerzalny: Stosowalny do 64kWh dla rosnących potrzeb energetycznych

Inteligentne zarządzanie: Monitoring w czasie rzeczywistym przez aplikację Deye Cloud

Compatible with Deye low-voltage hybrid inverter and PCS systems

Deye Rozwiązanie do magazynowania energii | Seria SE-F | Bateria SE-F5

€0,00

Key Features

5.12 kWh. Compact. Expandable.

The SE-F5 provides 5.12 kWh nominal energy from a 51.2 V / 100 Ah LiFePO4 pack. The official Deye product page lists 80% recommended DoD, 6,000+ cycles, and support for 32 units in parallel, with up to 64 units via CAN-Bridge.

5.12kWh Nominal Energy
6,000+Cycle Life
32 / 64Units Parallel

Slim Format. Flexible Installation.

Official specifications list a compact 370 x 548 x 140 mm enclosure and approx. 41 kg weight. The battery supports wall-mounted, floor-mounted, and stack-mounted installation for more layout flexibility in indoor residential ESS projects.

41kg Weight
140mm Depth
3Mounting Modes

Official Current, Temperature, and Safety Data.

Deye lists 100 A max continuous charge current, 120 A max continuous discharge current, and 150 A peak discharge current for 10 seconds. Official operating temperatures are 0 C to 55 C for charging and -20 C to 55 C for discharging, with UN38.3, MSDS, CE, and CB documentation available from the official page.

100 ACharge Current
120 ADischarge Current
150 A10 s Peak

Official 5-Year Warranty and 8 MWh Throughput.

The current Deye SE-F5 product page lists a 5-year warranty period and 8 MWh energy throughput. Expansion remains modular: use up to 32 units in parallel as standard, or scale further with the official CAN-Bridge parallel solution.

32Max Units
5Year Warranty
8MWh Throughput

Communication and Monitoring from the Official Manual.

The official page and manual list CAN2.0, RS485, and Bluetooth + APP communication. Front-panel status feedback is provided by LED indicators for SOC, working, and protecting plus a buzzer alarm, while the manual confirms the battery has a built-in BMS.

CAN2.0Comms
BTBluetooth
APPMonitoring

Built for Real-World Use

Self-Consumption - Store Solar, Cut Bills

SE-F5 is positioned by Deye as a low-voltage residential battery for hybrid inverter systems. A single unit stores 5.12 kWh of energy and can be expanded step by step for higher self-consumption ratios.

Idealne dla: Best for: Solar homes looking to improve daily self-use

Official documentation confirms CAN2.0, RS485, Bluetooth + APP communication.

Intelligent Energy Management

Solar Priority Mode

Use SE-F5 in a hybrid inverter system to prioritize storing daytime PV energy before relying on the grid. The official brochures position the battery in bundled residential ESS solutions with Deye low-voltage inverters.

Use only official Deye charge, discharge, temperature, and parallel limits when configuring operating modes.

Technical Specifications

Basic product information
Model
SE-F5
System Type
Low-voltage residential battery
Target Market
Asia, Africa & LATAM
Cell Chemistry
LiFePO4 (LFP)
Rated Capacity
100 Ah
Nominal Voltage
51.2 V
Nominal Energy
5.12 kWh
Scalability
Max. 32 pcs in parallel; up to 64 pcs with CAN-Bridge
Battery electrical parameters
Operating Voltage
44.8 V - 57.6 V
Max. Continuous Charge Current
100 A
Peak Charge Current (10 sec)
120 A
Max. Continuous Discharge Current
120 A
Peak Discharge Current (10 sec)
150 A
Performance and durability
Recommended Depth of Discharge
80% DoD
Cycle Life
>= 6,000 cycles at 25 +/- 2 C, 70% EOL
Warranty Period
5 years
Energy Throughput
8 MWh
Communication and monitoring
Communication
CAN2.0, RS485, Bluetooth + APP
Monitoring
Deye Cloud APP via Bluetooth
LED Indicator
LED (SOC, working, protecting)
Buzzer
Included
BMS
Built-in BMS
Mechanical specifications
Dimensions (W x H x D)
370 x 548 x 140 mm
Dimensions Note
Without hanging board
Weight
Approx. 41 kg
IP Rating
IP21
Installation Method
Wall-mounted / floor-mounted / stack-mounted
Altitude
<= 3000 m
Environmental specifications
Charge Temperature
0 C to 55 C
Discharge Temperature
-20 C to 55 C
Storage Temperature
0 C to 35 C
Relative Humidity
95% (non-condensing)
Safety and transport documentation
Certification
CE / CB
Transport
UN38.3
Documentation
MSDS

PLIKI DO POBRANIA I DOKUMENTY

Deye SE-F5 & F5 Pro & F5 Plus & F12 & F12 Max & F16 & F16 Max Series Brochure V1.1Brochure Deye ESS User Manual SE-F5 EU (EN) V08User Manual

What's in the Box

  1. 1 Battery packx1
  2. 2 PCS communication cablex1
  3. 3 Ground wirex1
  4. 4 Hookx2
  5. 5 Positive and negative battery power cablesx1 each
  6. 6 Expansion boltx4
  7. 7 Boltx4
  8. 8 Bracketx4
  9. 9 User manualx1
  10. 10 Logo sticker and positioning paperboardx1

Frequently Asked Questions

The Deye SE-F5 is a 51.2 V / 100 Ah low-voltage LiFePO4 battery with 5.12 kWh nominal energy. The official product page positions it for residential ESS use in Asia, Africa, and LATAM.

Official highlights include 80% recommended DoD, 6,000+ cycle life, CAN2.0 / RS485 / Bluetooth + APP communication, a built-in BMS, and wall-mounted, floor-mounted, or stack-mounted installation. Parallel expansion is rated for 32 units, with up to 64 units via CAN-Bridge.

Official specifications list 44.8-57.6 V operating voltage, 100 A max continuous charge current, 120 A max continuous discharge current, 120 A peak charge current for 10 seconds, and 150 A peak discharge current for 10 seconds. Dimensions are 370 x 548 x 140 mm, weight is approx. 41 kg, and protection is IP21.

Deye rates SE-F5 for 32 units in parallel as standard. The official online product page adds that up to 64 units can be paralleled with CAN-Bridge.

The official documentation lists wall-mounted, floor-mounted, and stack-mounted installation. Standard accessories include the hooks, brackets, expansion bolts, battery power cables, PCS communication cable, ground wire, user manual, logo sticker, and positioning paperboard.

The official product page lists UN38.3, MSDS, CE, and CB for SE-F5, alongside the product brochure and user manual downloads.

The official page lists CAN2.0, RS485, and Bluetooth + APP. The user manual also confirms Bluetooth-based Deye Cloud APP access for battery information and system visibility.

The current official SE-F5 product page lists a 5-year warranty period and 8 MWh energy throughput. Warranty conditions remain subject to Deye's official warranty terms.

Official temperature limits are 0 C to 55 C for charging, -20 C to 55 C for discharging, and 0 C to 35 C for storage.

The official Deye brochures position SE-F5 for low-voltage hybrid inverter and PCS systems, including bundled residential ESS solutions with Deye hybrid inverter platforms.

The official unpacking list includes the battery pack, PCS communication cable, ground wire, hooks, positive and negative battery power cables, expansion bolts, bolts, brackets, user manual, logo sticker, and positioning paperboard.

Yes. The official page and manual both list Bluetooth + APP support for SE-F5, in addition to CAN2.0 and RS485 communication.
