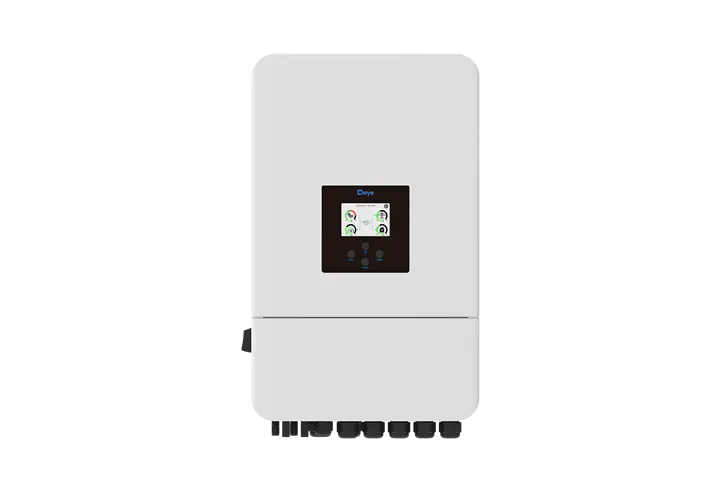

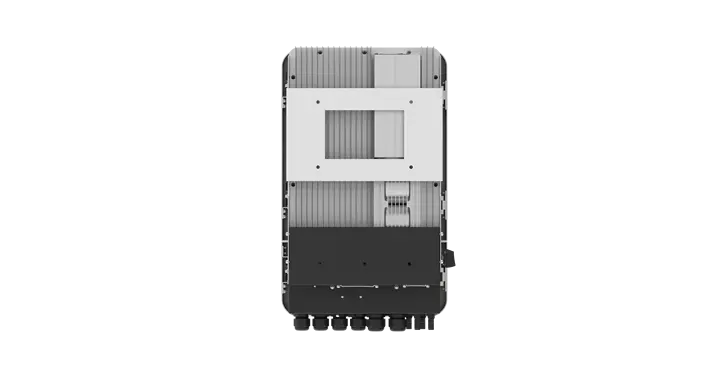

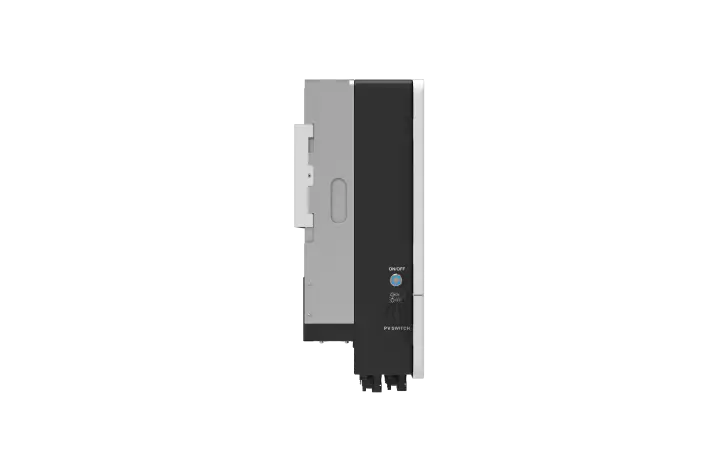

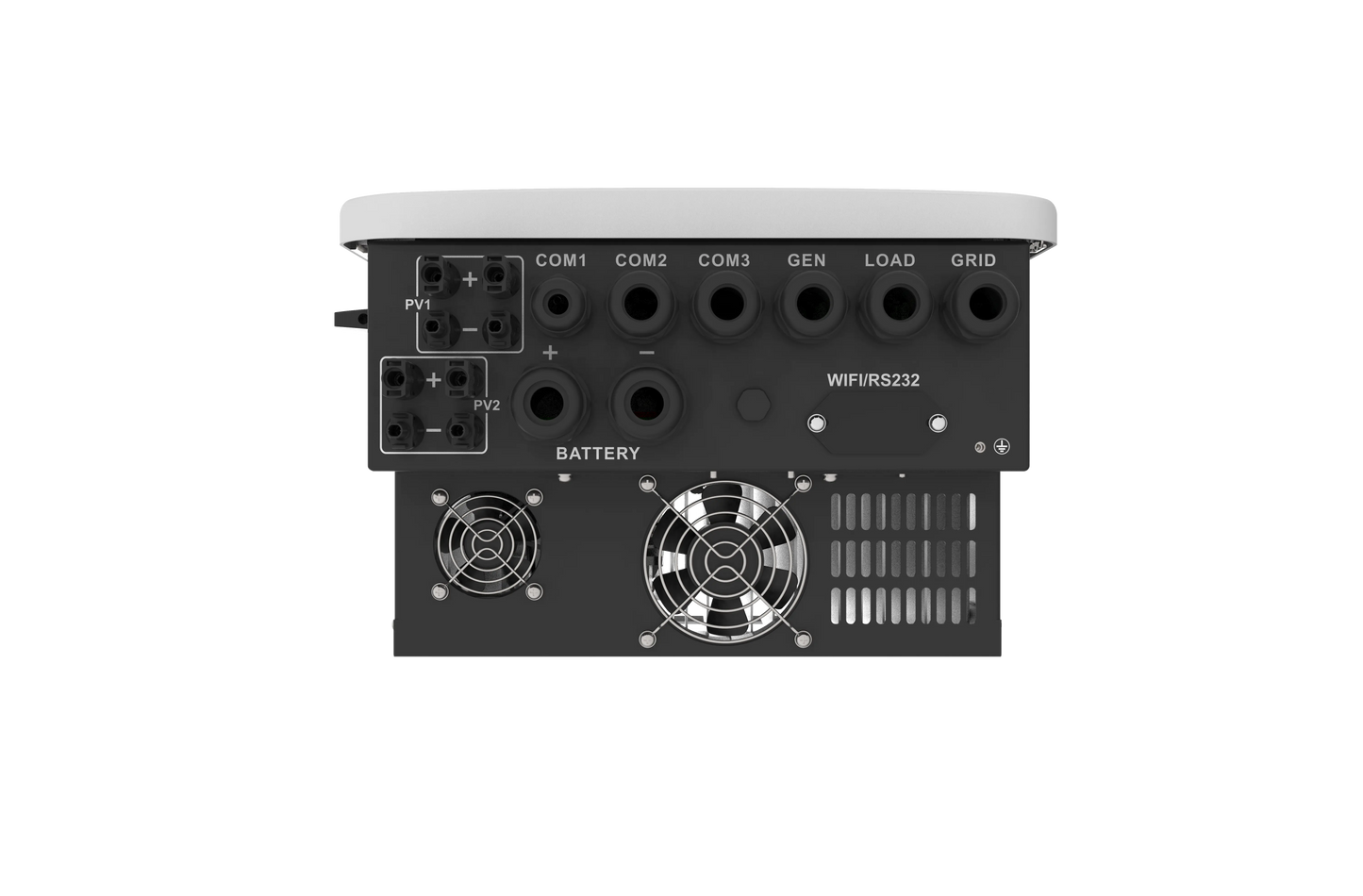

Deye Hybrid Inverter| SUN-7.5K-SG05LP1-EU-SM2-P

Price
Availability Out Of Stock
14 Days Return Policy
VAT included
5-10 Years Warranty

7.5kW Brazil Grid-Optimized: Custom-tailored capacity to streamline local single-phase grid connection approvals and maximize solar yield.

190A Fast Charge/Discharge (48V): Highly compatible with safe 40-60V Lead-acid or Lithium-ion batteries for rapid energy transfer.

Smart TOU Management: 6 programmable time periods for charging/discharging, perfectly designed to bypass Brazil’s expensive peak-hour electricity rates (Tarifa Branca).

Massive Scalability: Supports up to 16 units in parallel (on-grid/off-grid), offering unmatched flexibility for expanding farms or commercial sites.

Seamless Generator Integration: Dedicated generator port with auto-start ensures uninterrupted power during grid failures or in remote areas.

AC Coupling for Retrofits: Effortlessly upgrades existing traditional grid-tied solar systems into full energy storage setups.

Tropicalized IP65 & Smart Control: Rugged outdoor-ready design with a colorful touch LCD and comprehensive remote monitoring (WIFI/Bluetooth).

Pro Series: Enhanced 32A MPPT Input

Deye Hybrid Inverter| SUN-7.5K-SG05LP1-EU-SM2-P

€0,00

Key Features

Pro-Grade 32A MPPT Input — Support for High-Power Modules

Optimized for the latest generation of ultra-high-power solar modules. The enhanced 32A input ensures maximum energy capture from high-current bifacial panels.

32A+32AMax MPPT Input
48A+48AShort-Circuit
150-425V MPPT Range

Massive 15kW PV Access — Future-Proof Your Energy

Support for up to 15,000W of solar panels allows for extreme oversizing to maintain peak performance during low-light conditions and year-round autonomy.

15000W Max PV Access
12000W Max PV Input
500V Max Input

Industry-Leading 190A Charging — Ultra-Fast Storage

Rapidly store solar energy. With 190A charging current, you can fill your battery bank quickly during peak sunshine for use when demand spikes.

190AMax Charge
190AMax Discharge
40-60V Battery Range

7.5kW Continuous / 15kW Peak Power — Run Everything

Reliable pure sine wave output to start and run heavy inductive household loads like air conditioners and pumps with zero interruption.

7500W Rated Output
15000W Peak Power
34.1A Rated Current

Extreme Scalability — Parallel Up to 16 Units

Support for paralleling up to 16 units allows you to expand your system for large-scale residential or light commercial power plants.

16 UnitsMax Parallel
IP65Protection
BMSSmart Adaptation

Technical Specifications

Specifications for battery interface and management
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range
40–60 V
Max. Charging Current
190 A
Max. Discharging Current
190 A
Charging Strategy
Self-adaption to BMS
Solar panel input and MPPT specifications
Max. PV Access Power
16,000 W
Max. PV Input Power
12,800 W
Max. PV Input Voltage
500 V
Start-up Voltage
125 V
MPPT Voltage Range
150–425 V
Max. Operating Input Current
26 A + 26 A
Grid and load power output specifications
Rated Active Power
7,500 W
Max. Apparent Power
8,000 VA
Rated Output Current
34.1 A / 32.6 A
Peak Power (Off-grid)
2x Rated, 10s
Output Voltage/Range
220/230 V
Grid Form
Single Phase (L+N+PE)
System performance and integrated safety features
Max. Efficiency
97.60%
MPPT Efficiency
>99%
Protection Degree
IP65
Surge Protection
Type II (DC) / Type II (AC)
Safety Protections
Integrated Full Protection
Physical and environmental characteristics
Dimensions (WxHxD)
366 x 589 x 237 mm
Weight
26.8 kg
Operating Temperature
-40 to +60 °C
Noise
<30 dB
Cooling
Smart Fan Cooling

DOWNLOADS & DOCUMENTS

What's in the Box

  1. 1 SUN-7.5K-SG05LP1-EU-SM2-P×1
  2. 2 WiFi Datalogger×1
  3. 3 Split Core Current Transformer×1
  4. 4 Installation Hardware Kit×1

FAQ

The Pro series features an enhanced 32A MPPT input current (compared to 26A in standard models). This makes it fully compatible with the latest generation of ultra-high-power and bifacial solar modules, ensuring maximum energy harvest.

The SUN-7.5K-P is highly scalable, supporting up to 16 inverters in parallel for both on-grid and off-grid operation. This allows you to grow your system from a single home setup to a large power plant.

Yes. With a 7,500W rated continuous output and a massive 15,000W peak power (for 10 seconds), it can easily handle high-surge loads like air conditioners, water pumps, and kitchen appliances.

This inverter features an industry-leading 190A maximum charge and discharge current. This allows for extremely rapid energy transfer, ensuring your 48V battery bank is topped up quickly during peak solar hours.

The inverter is compatible with both 48V Lead-acid and Lithium-ion batteries. It features advanced self-adaptive BMS communication that automatically recognizes and optimizes charging for most major lithium battery brands.

Yes. The unit features a rugged IP65-rated enclosure, providing complete protection against dust and water. It is designed to operate reliably in extreme environments from -40°C to +60°C.

Absolutely. The inverter includes a dedicated port and smart logic to support diesel generators, providing an extra layer of energy security for off-grid or critical backup applications.

The inverter comes with integrated WiFi and Bluetooth. You can monitor real-time production, consumption, and battery status remotely via the Deye Cloud App on your smartphone.

Deye provides a standard 5-year warranty on the SUN-7.5K-P, which can often be extended to 10 years depending on your region and installation requirements.

Yes. You can program up to 6 different charging and discharging periods per day. This allows you to prioritize solar use, charge from the grid during off-peak hours, or discharge to avoid high utility rates.
