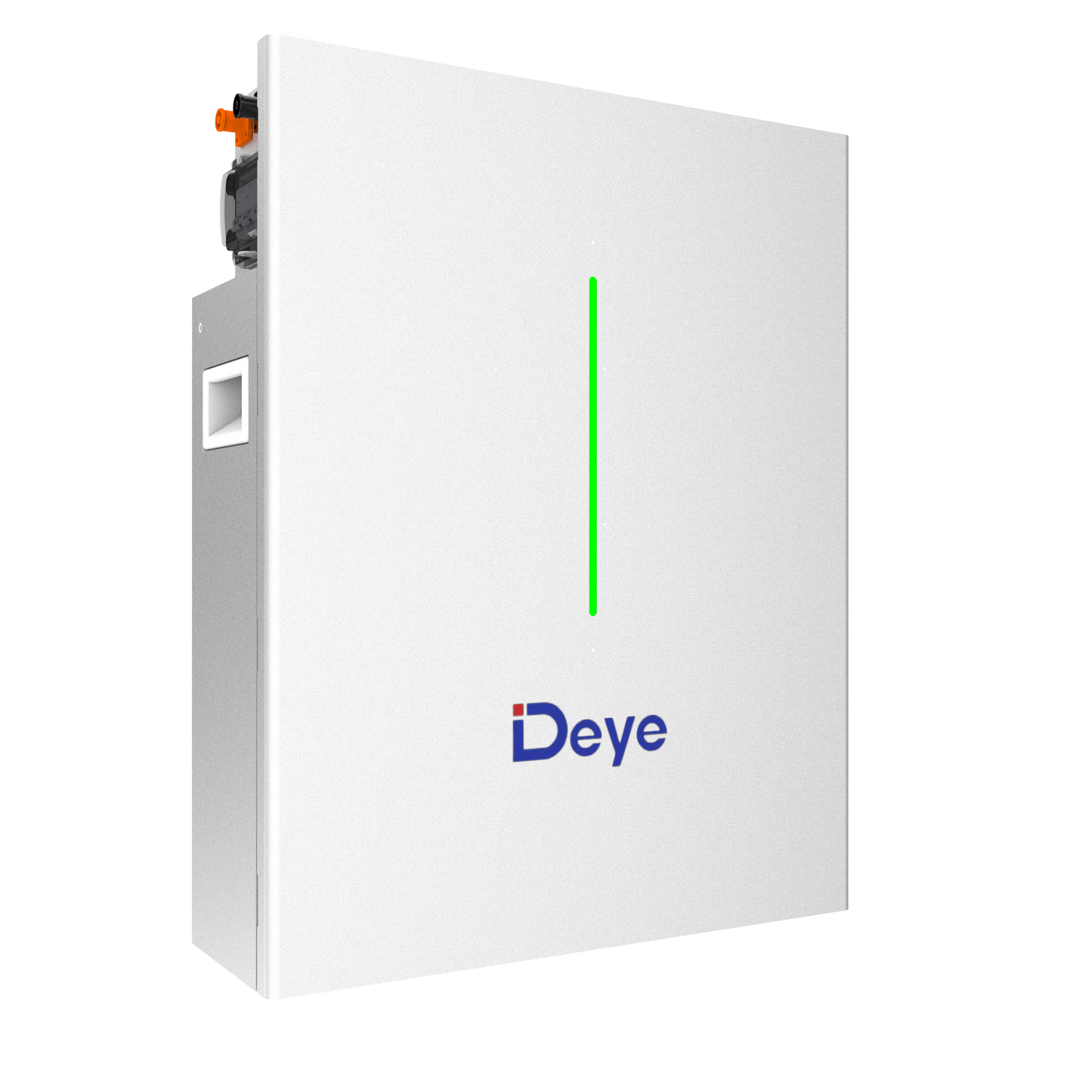

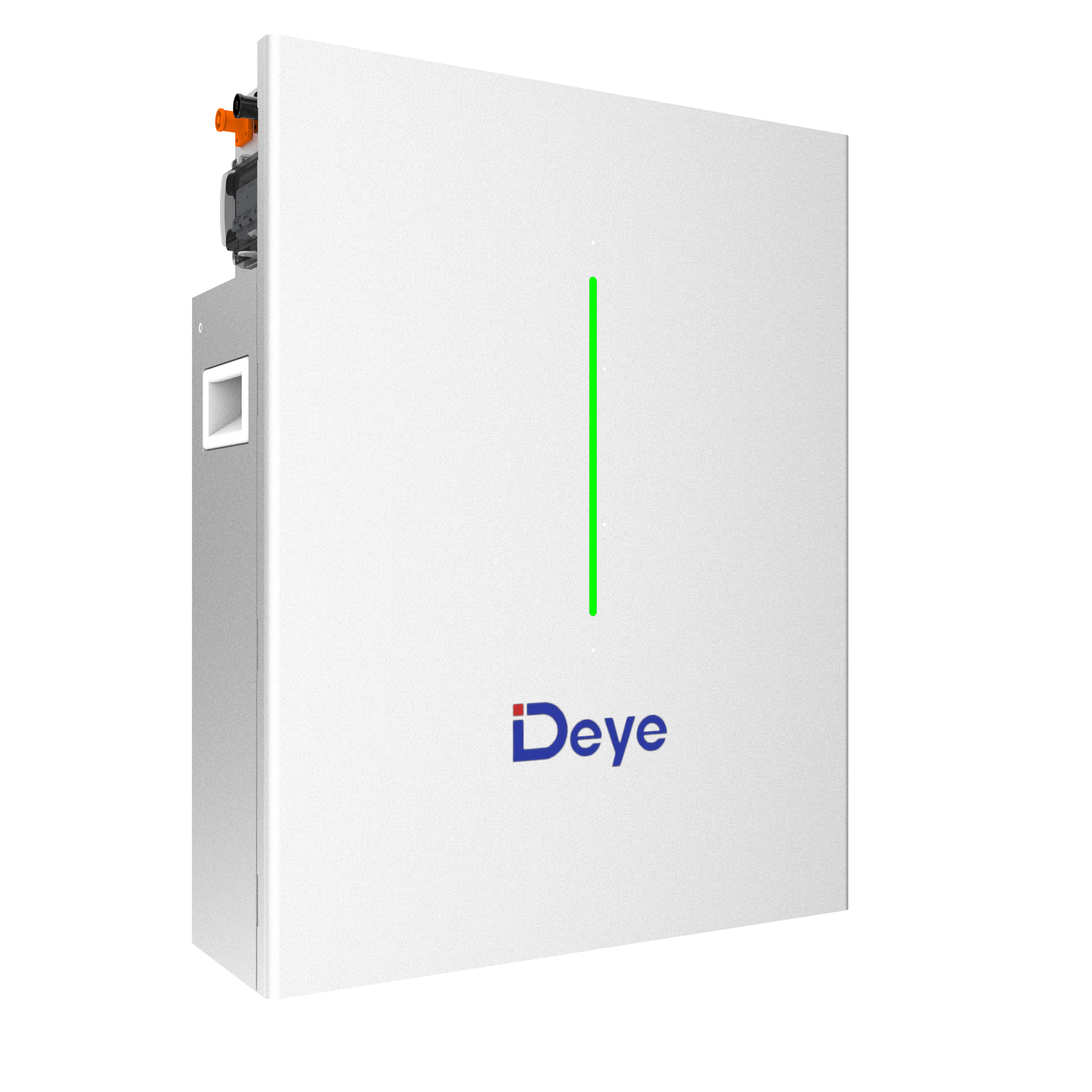

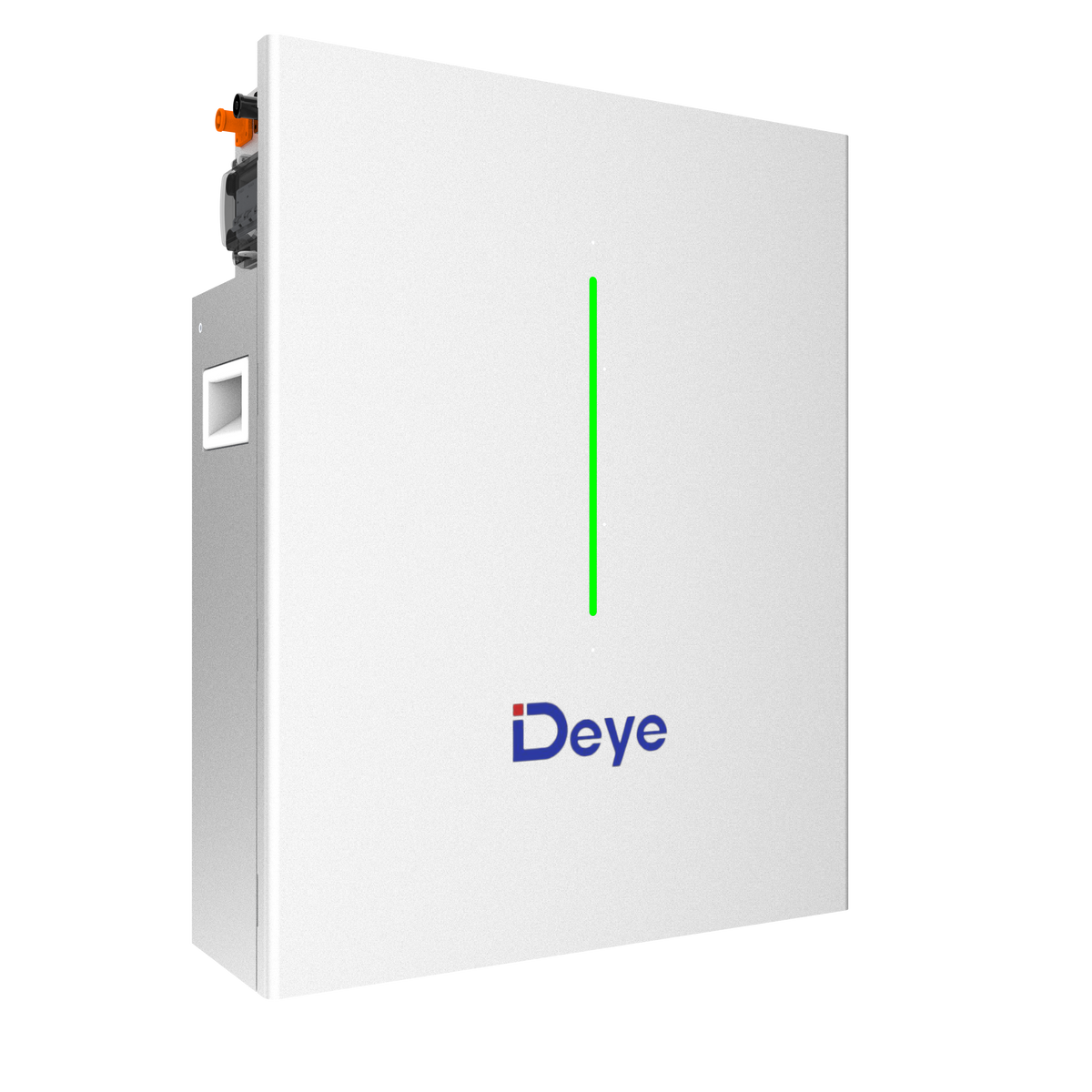

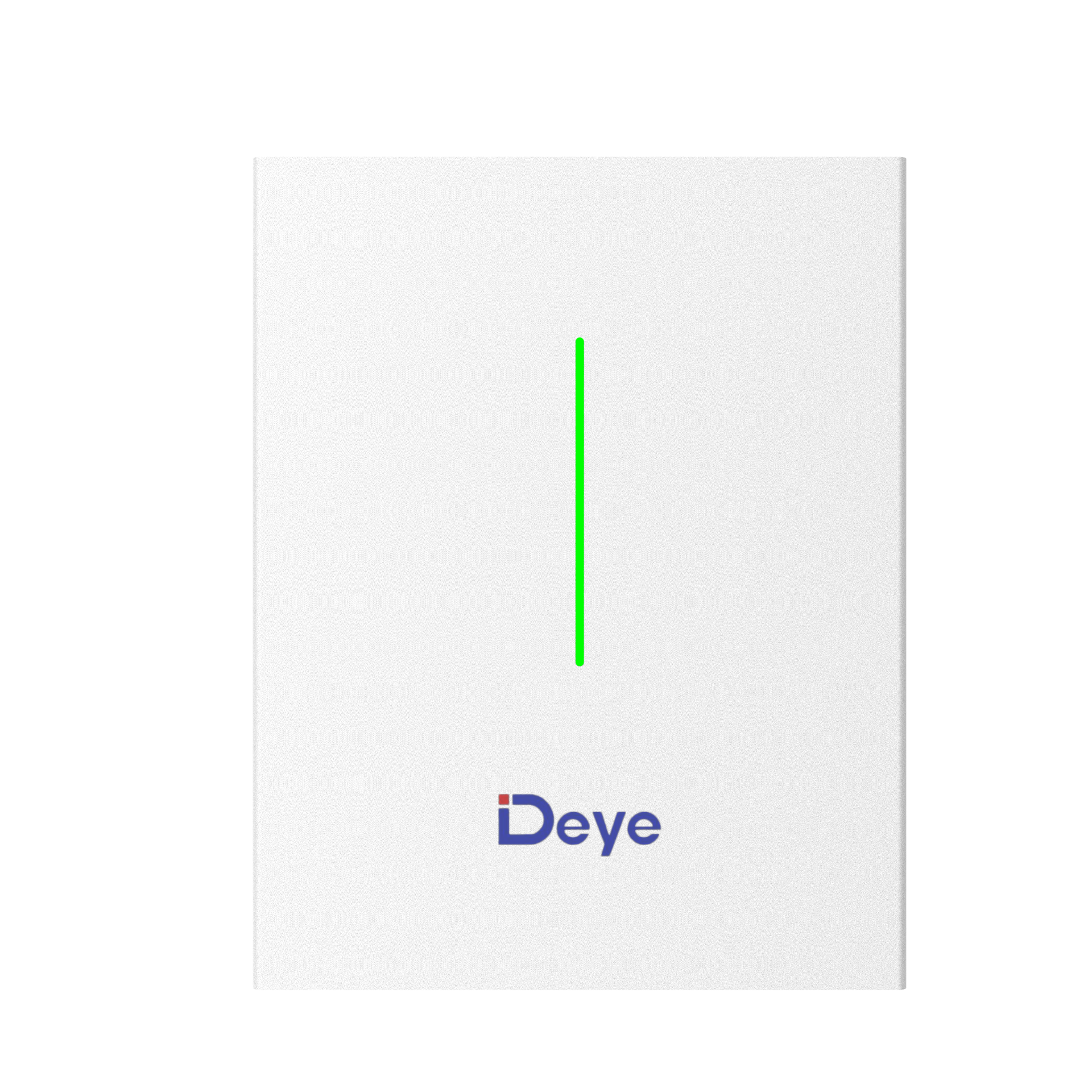

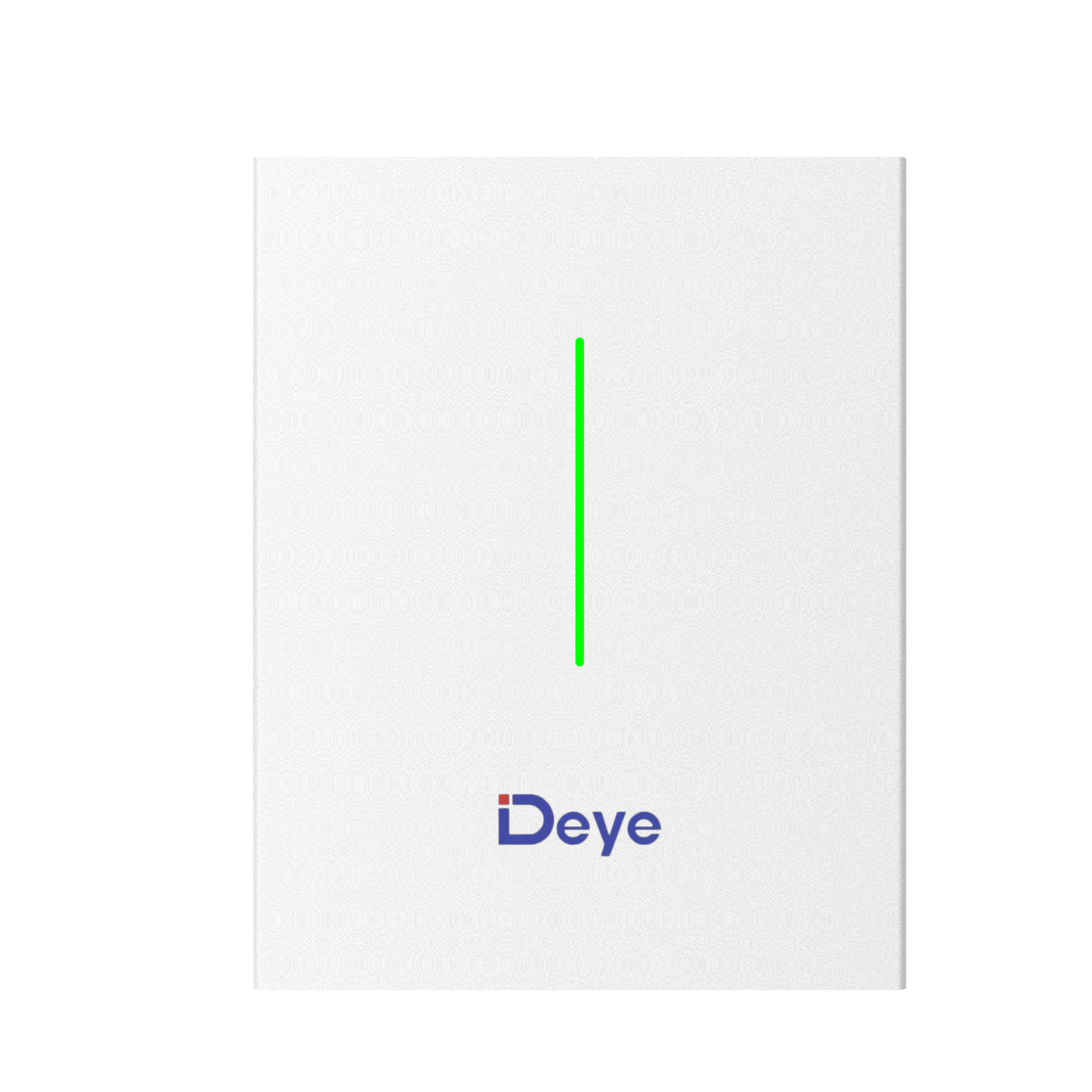

RW-F10.2 is a 51.2 V low-voltage LiFePO4 battery for EU & AU residential ESS applications, with 10.2 kWh rated energy, 9.2 kWh usable energy at 90% DoD, and 200 Ah rated capacity.
RW-F10.2 supports 43.2 V to 57.6 V operating voltage, 100 A / 100 A recommended charge and discharge current, 198 A / 240 A nominal charge and discharge current, 6 kW rated DC power, 12 kW max DC power, and 300 A peak discharge for 2 minutes at 25°C.
RW-F10.2 supports up to 32 packs in parallel, creating a system capacity up to 326 kWh in supported configurations.

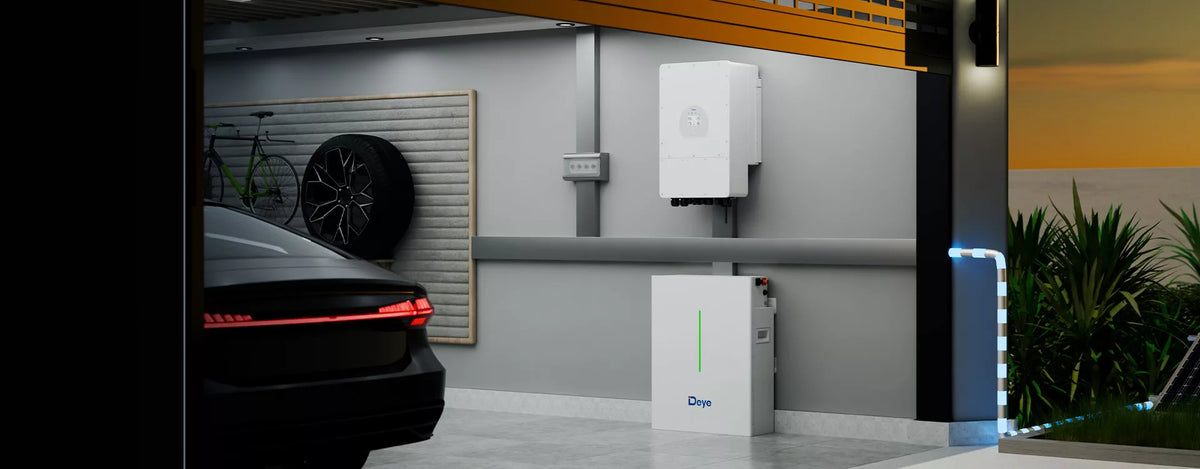

The battery supports wall-mounted and floor-mounted installation, has an IP65 enclosure rating, measures 600 x 760 x 200 mm without the hanging board, and weighs approximately 104 kg.
Charging range is 1°C to 55°C, discharge range is -20°C to 55°C, and storage range is 0°C to 35°C.

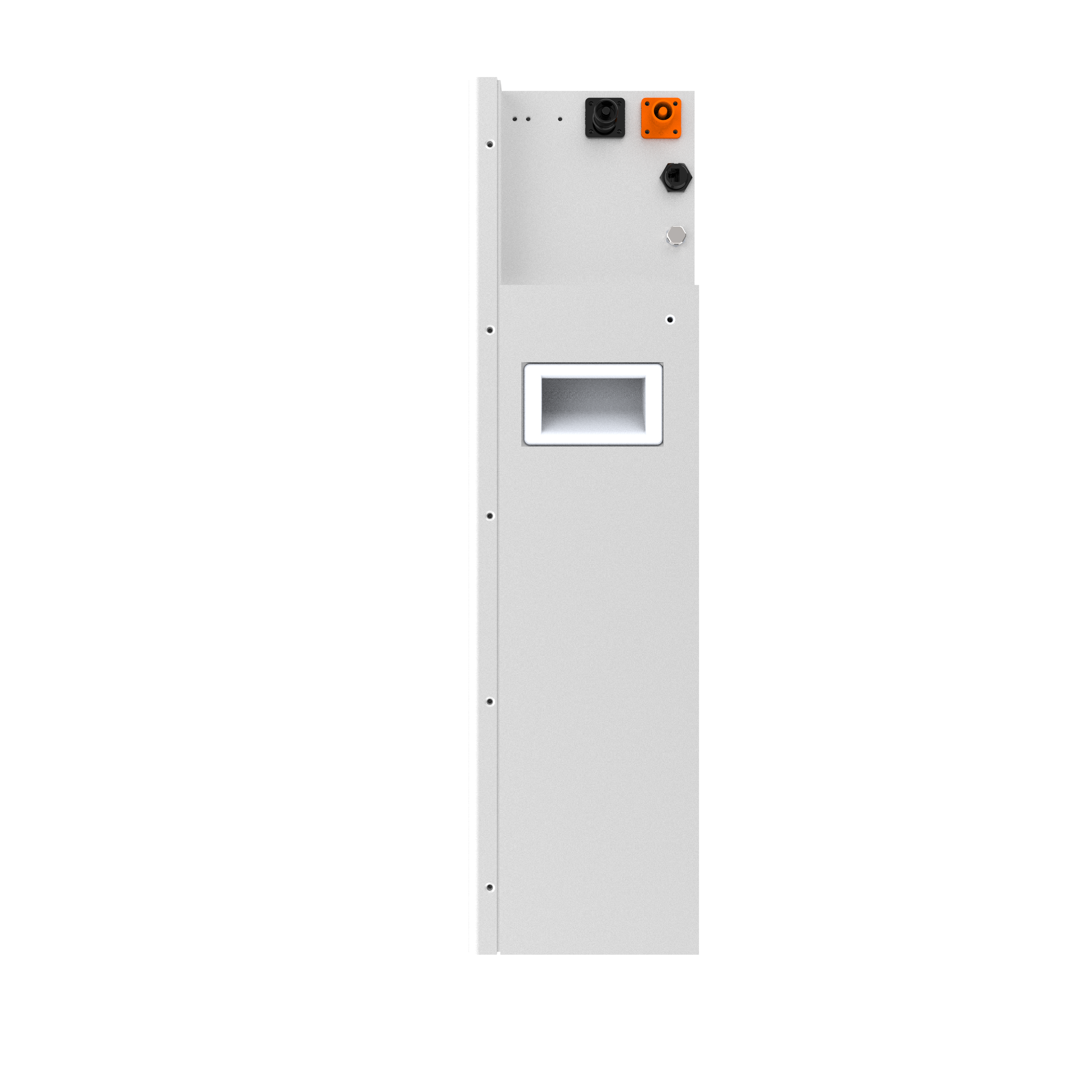

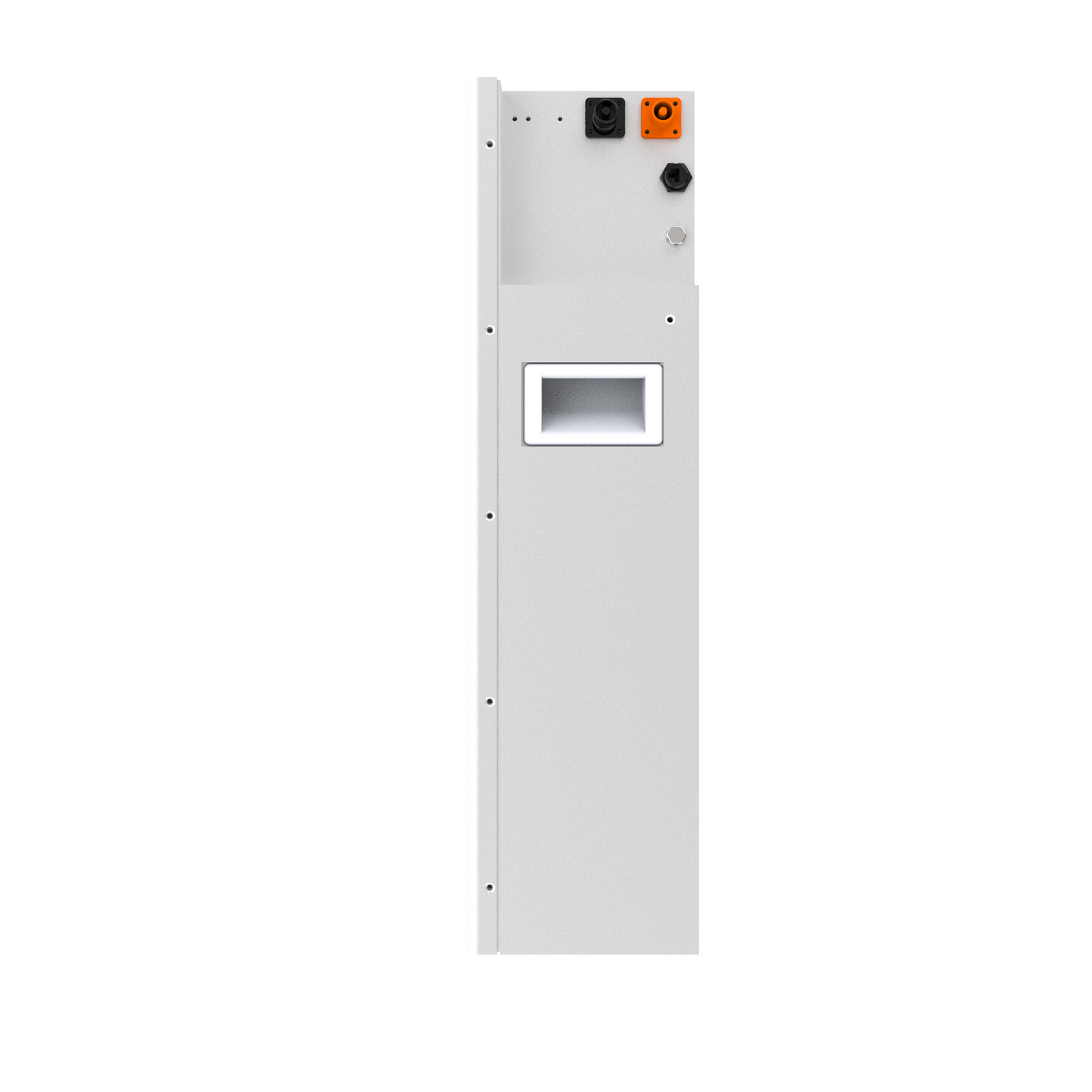

Communication support includes CAN2.0 and RS485. RW-F10.2 also includes a 125 A 4P, 60 Vdc built-in circuit breaker and LED status indication for SOC and working state.
RW-F10.2 is specified with at least 6,000 cycles under stated test conditions, 32 MWh energy throughput at 70% EOL, and a 10-year warranty period.
Certifications include UN38.3, IEC62619, CE, CEC 02-11, VDE2510-50, and CEC.
The download area includes RW-F10.2 brochure, datasheet, warranty, SDS, compatibility statement, EU and AU user manuals, and terminal crimping manual resources.
