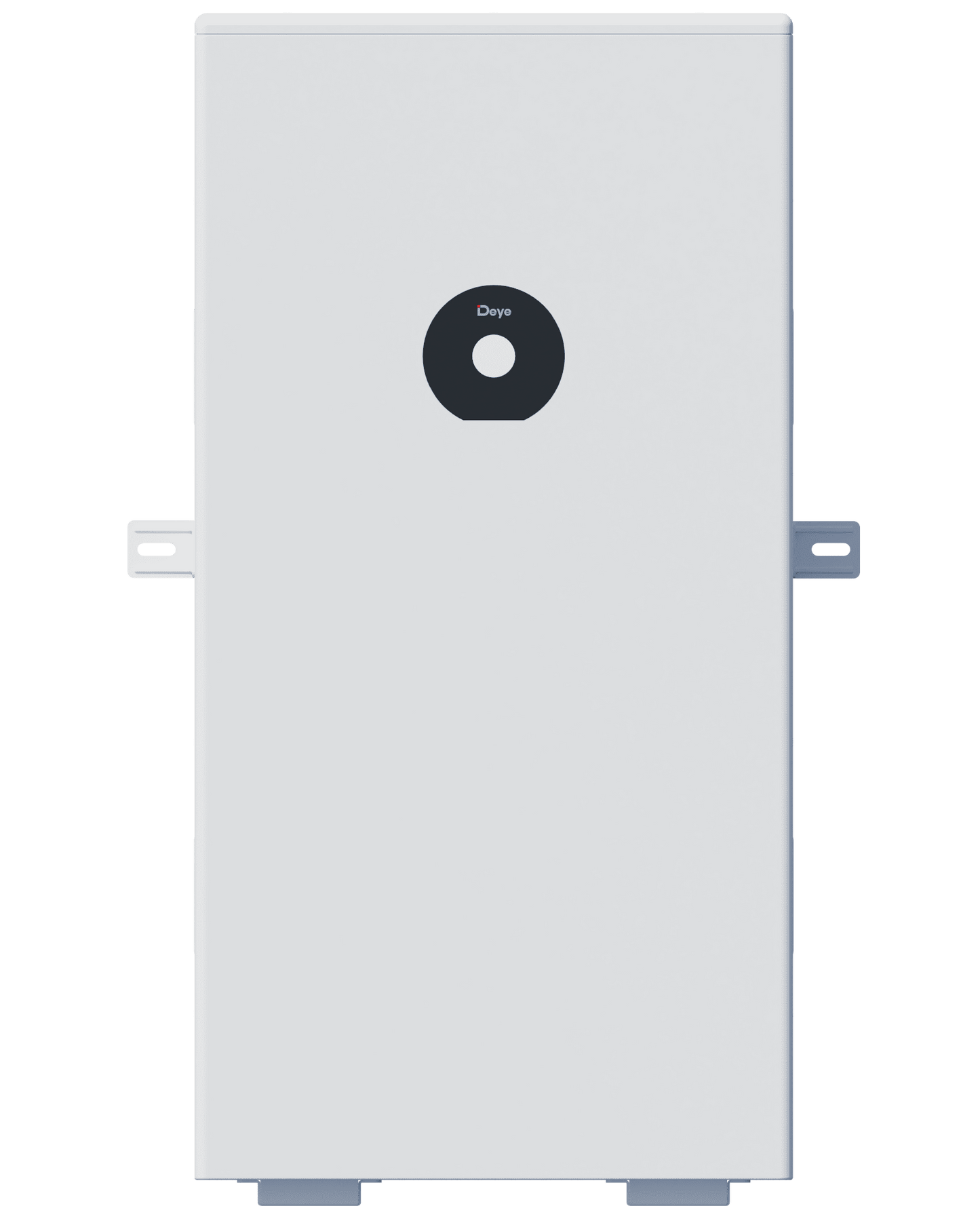

Deye Energy Storage Solution| SE-F16 Max

Price
Availability Out Of Stock
IP65 / NEMA 3R enclosure
10 Years Warranty
16 kWh LiFePO4 residential battery

16 kWh outdoor-ready LiFePO4 battery for larger residential ESS projects. Deye SE-F16 Max combines a 51.2 V low-voltage platform, 314 Ah rated capacity, and 16 kWh nominal energy for homes that need more solar storage and backup headroom.

Designed for high-capacity daily charge and discharge use. SE-F16 Max supports 11.8 kW max output power, 160 A max continuous charge current, 230 A max continuous discharge current, and 280 A peak discharge current for 10 seconds.

Protected installation for residential energy spaces. The IP65 / NEMA 3R enclosure, natural cooling, wall-mounted or floor-mounted installation, and optional heating support help installers plan flexible indoor or suitable outdoor ESS layouts.

Smart communication and scalable expansion. CAN2.0, RS485, Bluetooth, auto-networking, local battery monitoring, and ESS remote monitoring support integration with compatible Deye systems, while parallel expansion supports up to 32 units or 64 units with CAN-Bridge.

Long-cycle performance for everyday solar self-use. SE-F16 Max is specified with at least 6,000 cycles, 95% max energy RTE (DC), 50 MWh energy throughput, and a 10-year warranty period.

CAN2.0, RS485, Bluetooth

Key Features

Store 16 kWh of energy in a 51.2 V LiFePO4 platform.

SE-F16 Max gives larger residential ESS projects 16 kWh nominal and usable energy, 314 Ah rated capacity, and a stable 51.2 V low-voltage architecture.

16kWh Energy
314 AhCapacity
51.2 VNominal

11.8 kW output with stronger discharge headroom.

With 11.8 kW max output power, 160 A max continuous charge current, 230 A max continuous discharge current, and 280 A peak discharge for 10 seconds, SE-F16 Max is built for high-capacity daily storage use.

11.8kW Output
160 ACharge
230 ADischarge

IP65 / NEMA 3R protection with wide temperature support.

The IP65 / NEMA 3R enclosure, natural cooling, -20°C to 55°C discharge range, and optional heating support for low-temperature charging help fit more residential installation scenarios.

IP65Protection
NEMA 3REnclosure
-20°CDischarge Start

Wall or floor installation for larger energy rooms.

The 464 x 914 x 244.5 mm enclosure and approximately 118 kg weight give installers a clear profile for wall-mounted or floor-mounted residential ESS layouts.

464 x 914mm Front
244.5mm Depth
118kg Weight

Smart control and expandable low-voltage storage.

Auto-networking, local battery monitoring, remote ESS monitoring, and communication through CAN2.0, RS485, and Bluetooth support scalable Deye system integration up to 32 units, or 64 units with CAN-Bridge.

32 / 64Parallel Units
50MWh Throughput
10Year Warranty

Product Highlights

Advanced BMS protection for larger battery capacity.

SE-F16 Max combines an advanced BMS with active fuse protection, a built-in circuit breaker, and an IP65 / NEMA 3R enclosure to support safer low-voltage battery installation by qualified professionals.

Best for: Homes and small ESS projects needing protected high-capacity storage

A protected, connected 16 kWh LiFePO4 battery platform for higher-capacity residential solar storage and backup planning.

Technical Specifications

Core battery identity and capacity details.
Model
SE-F16 Max
Application Region
EU, AU & NA
Battery Chemistry
LiFePO4
Rated Capacity
314 Ah
Nominal Energy
16 kWh
Usable Energy
16 kWh
Nominal Voltage
51.2 V
Scalability
Max. 32 units in parallel; max. 64 units with CAN-Bridge
Low-voltage operating range, output power, and current ratings.
Operating Voltage
44.8 V - 57.6 V
Max. Output Power
11.8 kW
Charge / Discharge Rate
0.5C / 0.7C
Max. Continuous Charge Current
160 A
Max. Continuous Discharge Current
230 A
Peak Discharge Current
280 A (10 sec)
Recommended Depth of Discharge
90%
Cycle life, round-trip efficiency, throughput, and warranty data.
Cycle Life
At least 6,000 cycles (25°C ±2°C, 70% EOL)
Max. Energy RTE (DC)
95%
Energy Throughput
50 MWh
Warranty Period
10 Years
Communication interfaces, display status, and monitoring modes.
Communication Port
CAN2.0, RS485, Bluetooth
Display
LCD (SOC, Alarm), LED (Working)
Control & Monitoring
Auto-networking, local battery monitoring, remote ESS monitoring
Protection
Advanced BMS with active fuse; built-in circuit breaker
Mechanical size, protection rating, and installation options.
Dimensions (W x H x D)
464 x 914 x 244.5 mm
Weight Approx.
Approx. 118 kg
Ingress Protection / Enclosure Rating
IP65 / NEMA 3R
Cooling
Natural cooling
Installation
Wall-mounted, floor-mounted
Relative Humidity
0% - 95%
Altitude
≤3,000 m
Temperature ranges for charging, discharging, and storage.
Charge Temperature
0°C to 55°C (-20°C to 55°C with optional heating)
Discharge Temperature
-20°C to 55°C
Storage Temperature
0°C to 35°C
Certification set and available product documents.
Certifications
UN38.3, CE, CB, UL1973, UL9540A, UL9540-DC, FCC
Brochure
Deye SE-F12 Max & F16 Max Series Brochure
APP Quick Guide
Deye Cloud APP Quick Guide English

DOWNLOADS & DOCUMENTS

Deye SE-F12 Max & F16 Max Series Brochure 20260114 V1.2 (PDF)Brochure Deye Cloud APP Quick Guide English (PDF)App Guide

What's in the Box

  1. 1 Battery packx1
  2. 2 User manualx1
  3. 3 Positioning paperboardx1
  4. 4 Hanging lugs, hanging plate, and hooksx1 set
  5. 5 Positive and negative power cablesx1 set
  6. 6 Communication cablex1
  7. 7 Ground wirex1
  8. 8 Expansion bolt (M6 x 100)x6
  9. 9 Bolt (M6 x 14)x12
  10. 10 Wheel (Optional)x4

Frequently Asked Questions

SE-F16 Max is a 51.2 V LiFePO4 residential battery with 16 kWh nominal and usable energy, 314 Ah rated capacity, and IP65 / NEMA 3R enclosure protection.

SE-F16 Max supports 11.8 kW max output power, 160 A max continuous charge current, 230 A max continuous discharge current, and 280 A peak discharge current for 10 seconds.

SE-F16 Max supports up to 32 units in parallel. Supported configurations can scale to up to 64 units with CAN-Bridge.

The battery measures 464 x 914 x 244.5 mm, weighs approximately 118 kg, and supports wall-mounted or floor-mounted installation.

Charging range is 0°C to 55°C, or -20°C to 55°C with optional heating. Discharge range is -20°C to 55°C, and storage range is 0°C to 35°C.

Communication support includes CAN2.0, RS485, and Bluetooth. Display status includes LCD (SOC, Alarm) and LED (Working).

SE-F16 Max is specified with at least 6,000 cycles under stated test conditions, 95% max energy RTE (DC), 50 MWh energy throughput, and a 10-year warranty period.

Certifications include UN38.3, CE, CB, UL1973, UL9540A, UL9540-DC, and FCC.

Available product documents include the SE-F12 Max / F16 Max brochure and Deye Cloud APP quick guides.
