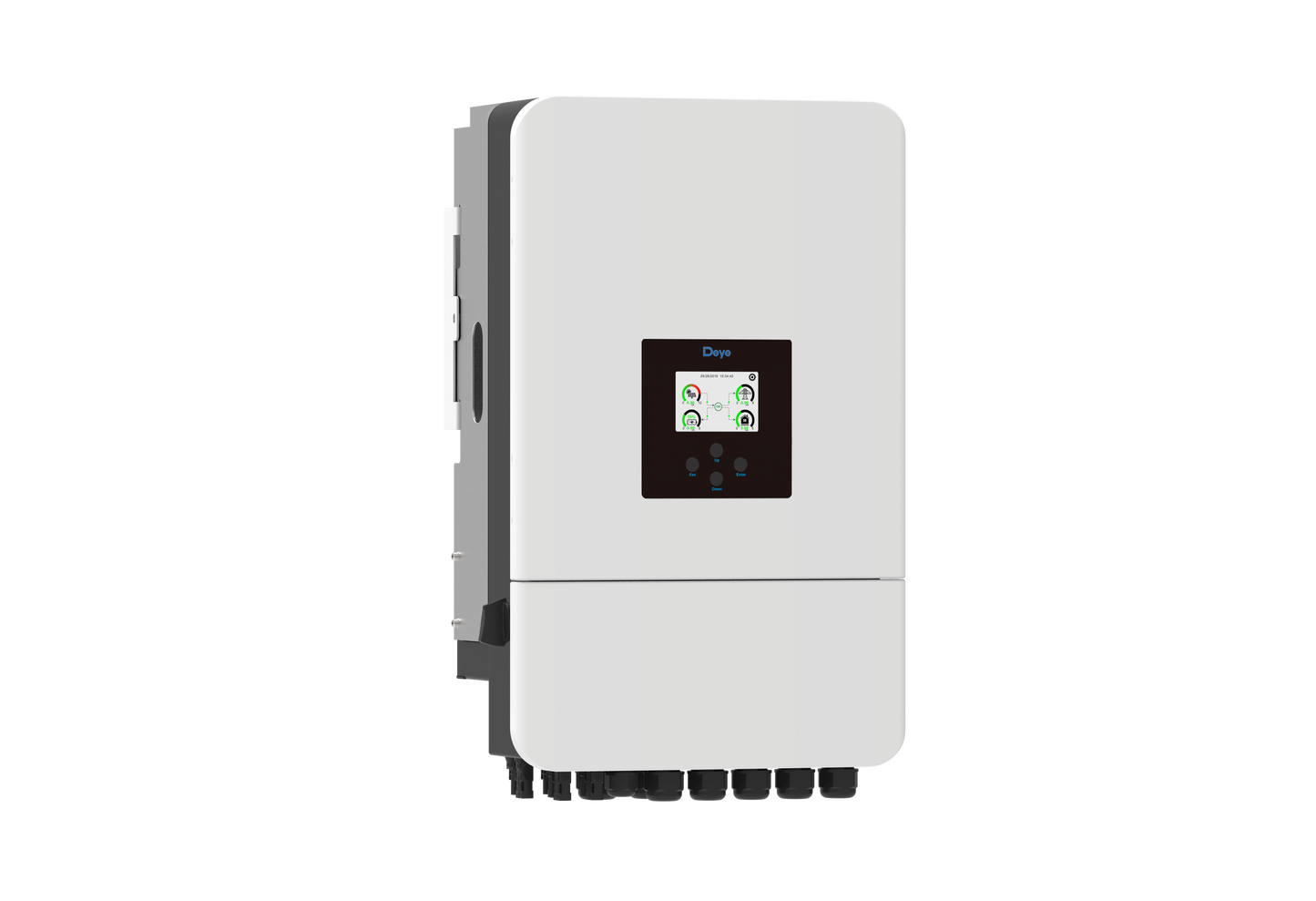

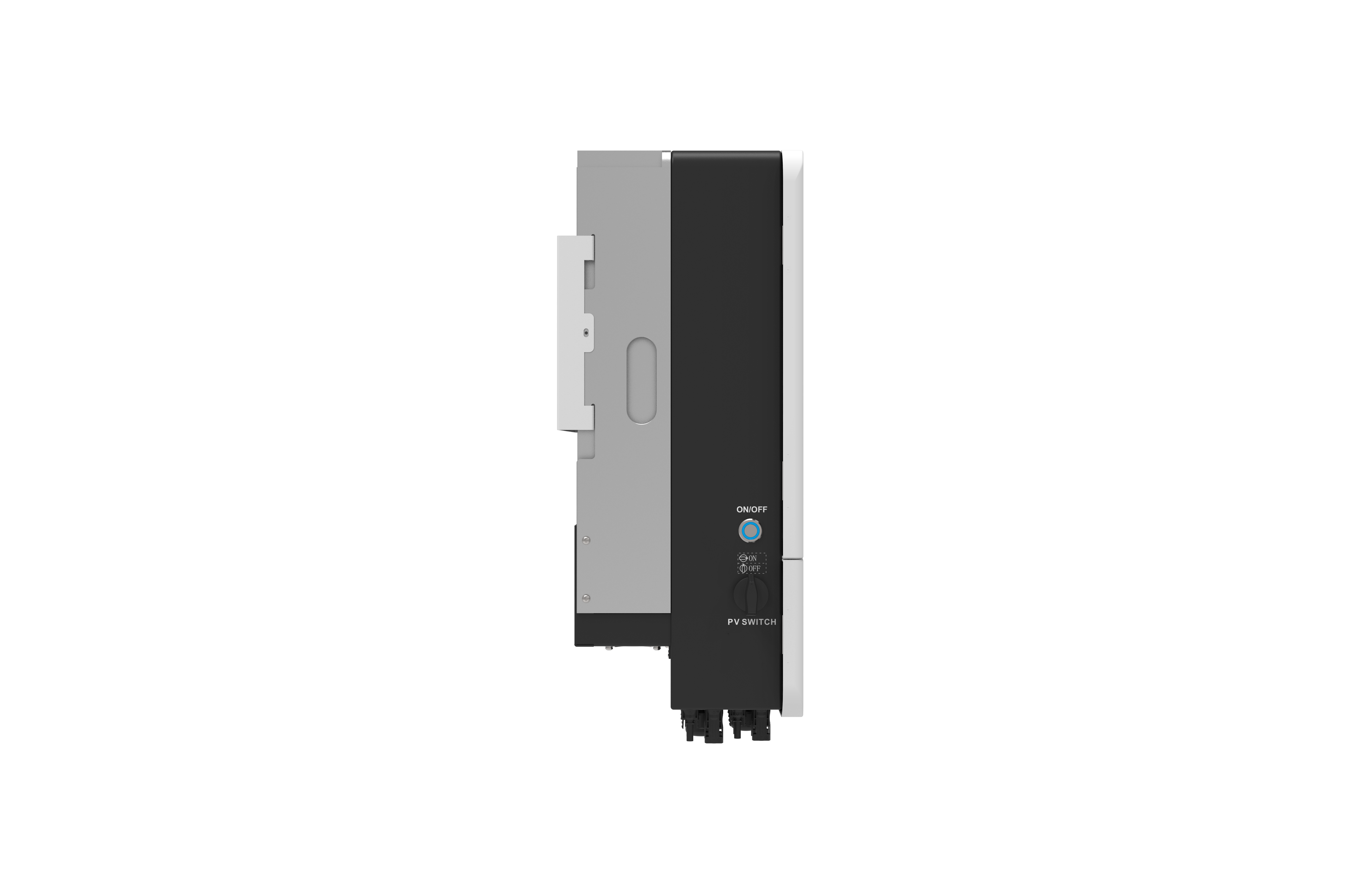

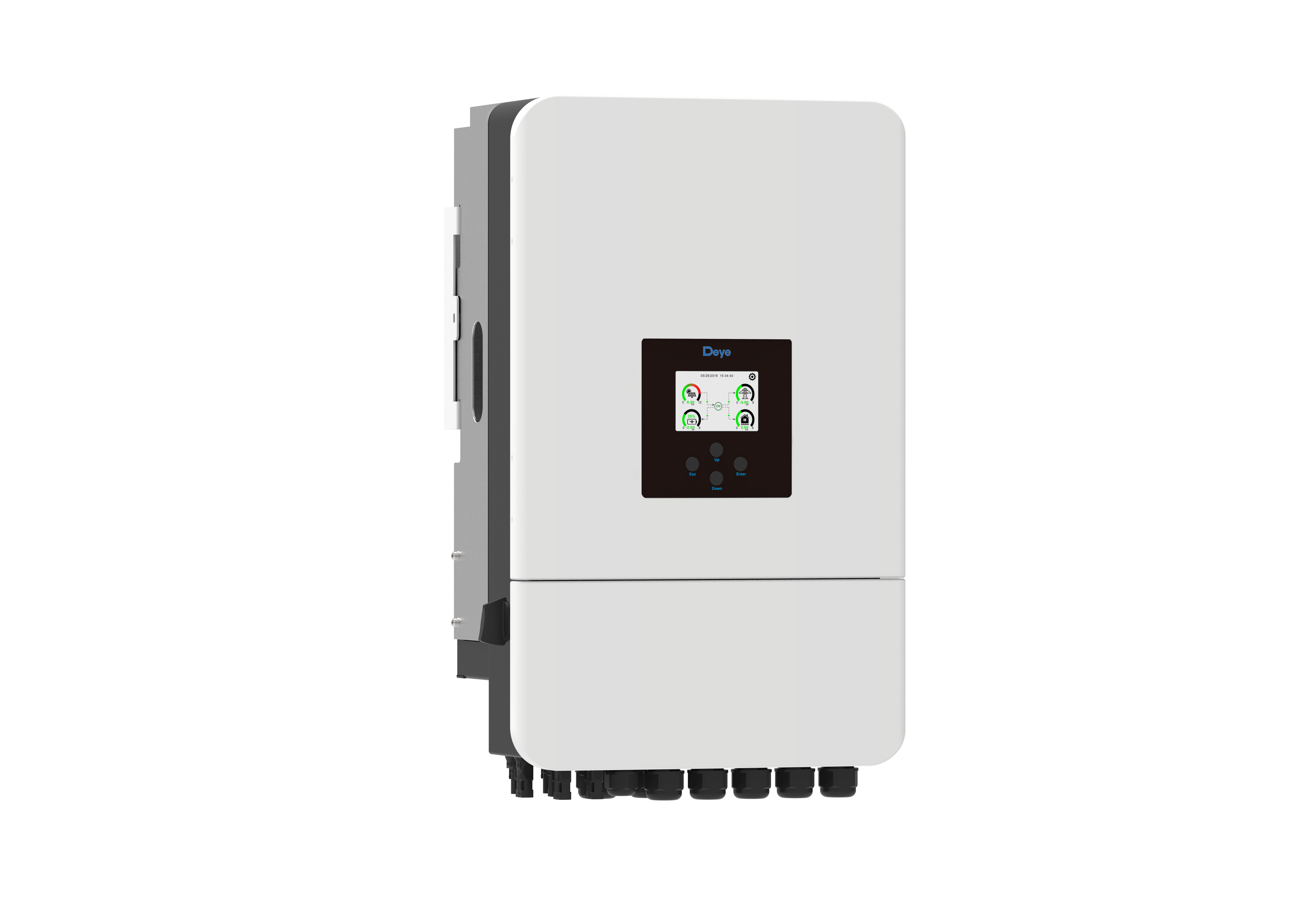

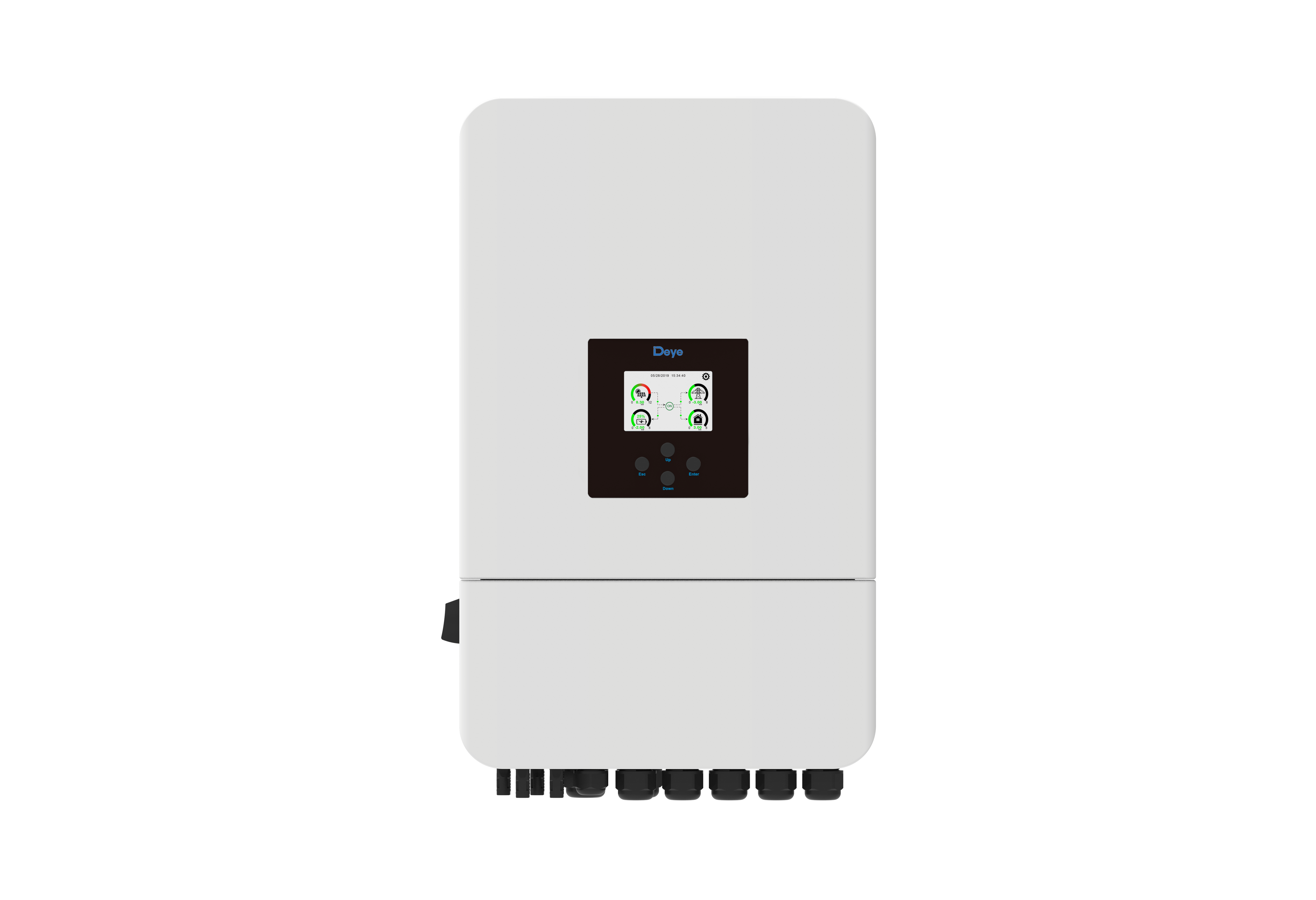

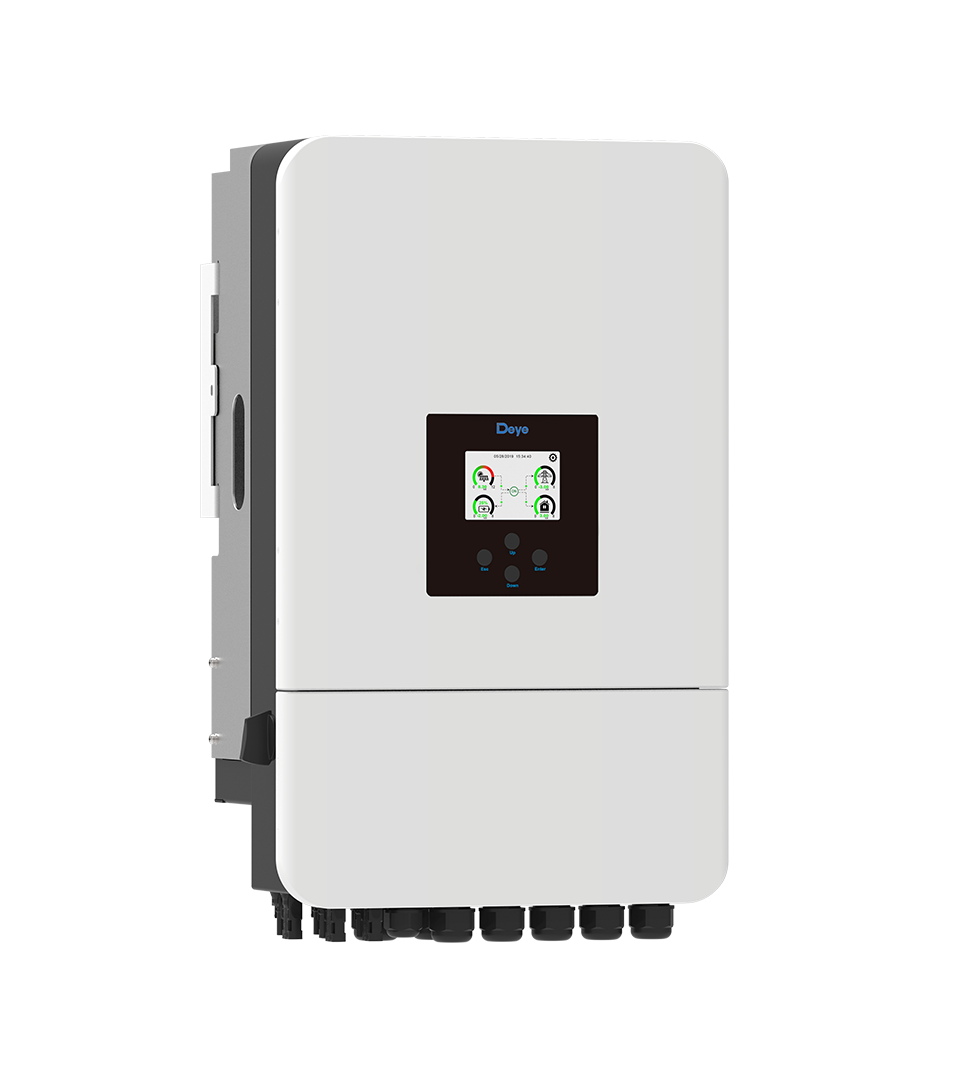

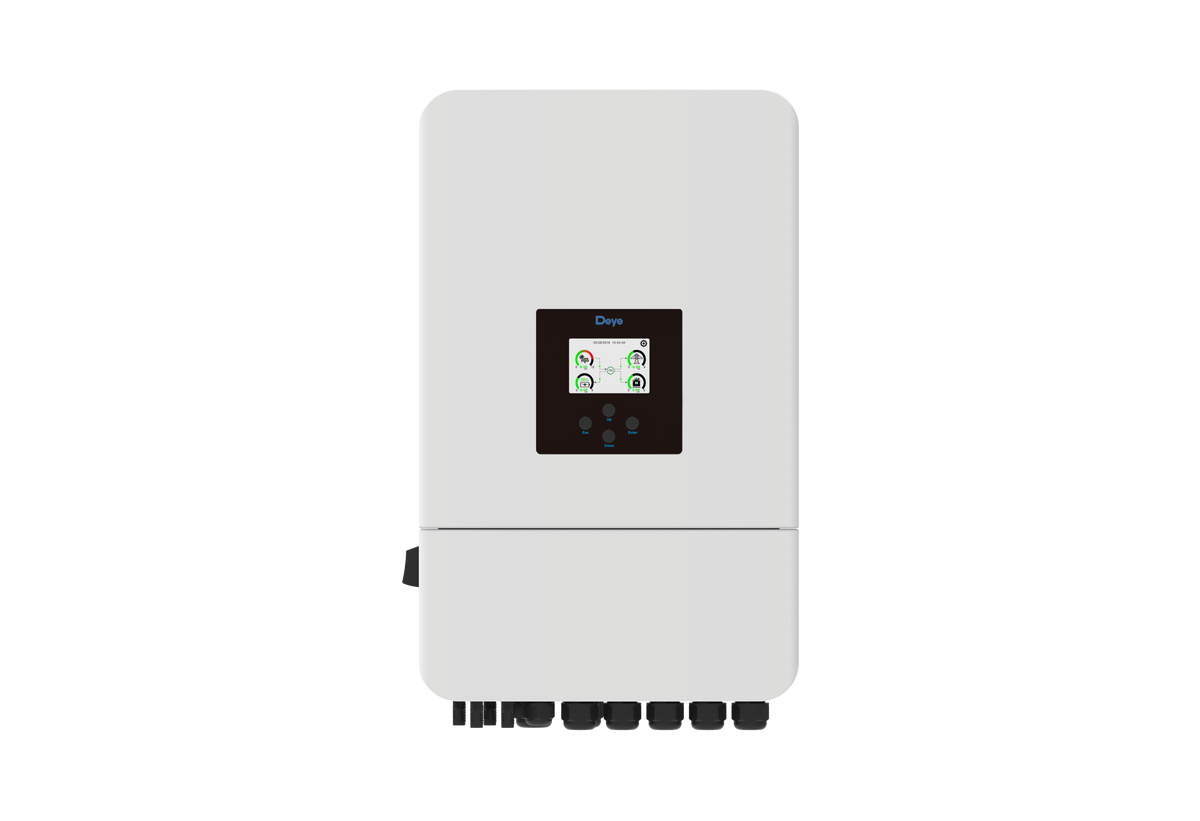

Deye Hybrid Inverter | SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P

Price
Output Power
Availability Out Of Stock
3.6-10 kW single-phase hybrid inverter
48 V low-voltage battery
2 MPPT | Up to 16 units parallel

Powerful single-phase solar storage, tailored to the home. The Deye SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P brings PV generation, low-voltage battery storage, backup support, and daily energy scheduling into one compact hybrid inverter platform.

Choose the output that fits the project. Select 3.6 kW, 5 kW, 6 kW, 7 kW, 7.6 kW, 8 kW, or 10 kW while keeping the same SG05LP1-P architecture with 2 MPPT and 40-60 V battery support.

Built to make stored solar easier to use. Up to 210 A max charging/discharging current, lithium BMS self-adaption, and 6 programmable charge/discharge periods help move solar energy into the evening, backup windows, or high-tariff hours.

Ready for retrofit and expansion. AC coupling supports compatible existing solar systems, generator energy storage adds resilience, and up to 16 units can operate in parallel for larger on-grid or off-grid installations.

Clean installation for everyday residential ESS. IP65 protection, LCD, intelligent air cooling, WIFI / RS485 / CAN communication, and Type II surge protection on DC and AC sides make it practical for European home energy projects.

Deye Hybrid Inverter | SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P

€0,00

Key Features

Right-size every home from 3.6 kW to 10 kW.

Match the inverter to a small home, a larger PV array, or a future battery upgrade without changing platform. Select the output power that fits the project while keeping the same SG05LP1-P architecture with 2 MPPT and 40-60 V low-voltage battery support.

3.6-10 kWOutput Range
1PSingle Phase
LVBattery

Move more solar into the evening with strong battery current.

Store solar when production is high and use it when the household needs it most. The platform works with lead-acid or lithium-ion batteries, supports lithium BMS self-adaption, and reaches up to 210 A max charging/discharging current depending on selected model.

40-60 VBattery
210 AMax Current
BMSSelf-adaption

Harvest more from complex rooftops with dual MPPT.

Two MPPT trackers help split PV strings across different roof faces or orientations. Depending on selected output power, PV access reaches up to 20 kW, with 500 V max PV input voltage and 2/1+1 or 2/2+2 string configuration.

2MPPT
500 VPV Voltage
PVHybrid Input

Backup, retrofit, and expansion options in one platform.

Upgrade compatible existing solar systems with AC coupling, add diesel-generator energy storage for extra resilience, and scale larger projects with up to 16 units in parallel for on-grid or off-grid operation.

16Parallel Units
ACCoupling
DGGenerator

Smarter daily control with outdoor-ready protection.

IP65 protection, LCD operation, WIFI / RS485 / CAN communication, and 6 programmable time periods help homeowners schedule charging and discharging around solar production, tariffs, and backup needs.

IP65Protection
6Time Periods
LCDDisplay

Electrical values vary by selected output power. Please use the technical table for final system sizing.

Comparison Table

Feature
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU
Current Model
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-AM2-P
SUN-7/7.6/8/10K-SG05LP1-EU-SM2
SUN-7.5K-SG05LP1-EU-SM2-P
Output Power Range3.6-10 kW 3.6-10 kW 3.6-10 kW 7-10 kW 7.5 kW
Battery Platform40-60 V LV 40-60 V LV 40-60 V LV 40-60 V LV 40-60 V LV
Max Battery CurrentUp to 210 A Up to 210 A Up to 210 A Up to 210 A Up to 190 A
MPPT / Strings2 / 1+1 or 2+2 2 / 1+1 or 2+2 2 / 1+1 or 2+2 2 / 2+2 2 / 2+2
Max PV Access Power7.2-20 kW 7.2-20 kW 7.2-20 kW 14-20 kW 15.2 kW
Max PV Input Voltage500 V 500 V 500 V 500 V 500 V
AC Coupling RetrofitSupported Supported Supported Supported Supported
Generator Energy StorageSupported Supported Supported Supported Supported
Parallel OperationMax. 16 units Max. 16 units Max. 16 units Max. 16 units Max. 16 units
DisplayLCD LCD LCD Colorful touch LCD Colorful touch LCD
CommunicationWIFI / RS485 / CAN WIFI / RS485 / CAN WIFI / RS485 / CAN RS485 / RS232 / CAN RS485 / RS232 / CAN
ProtectionIP65 IP65 IP65 IP65 IP65

Product Highlights

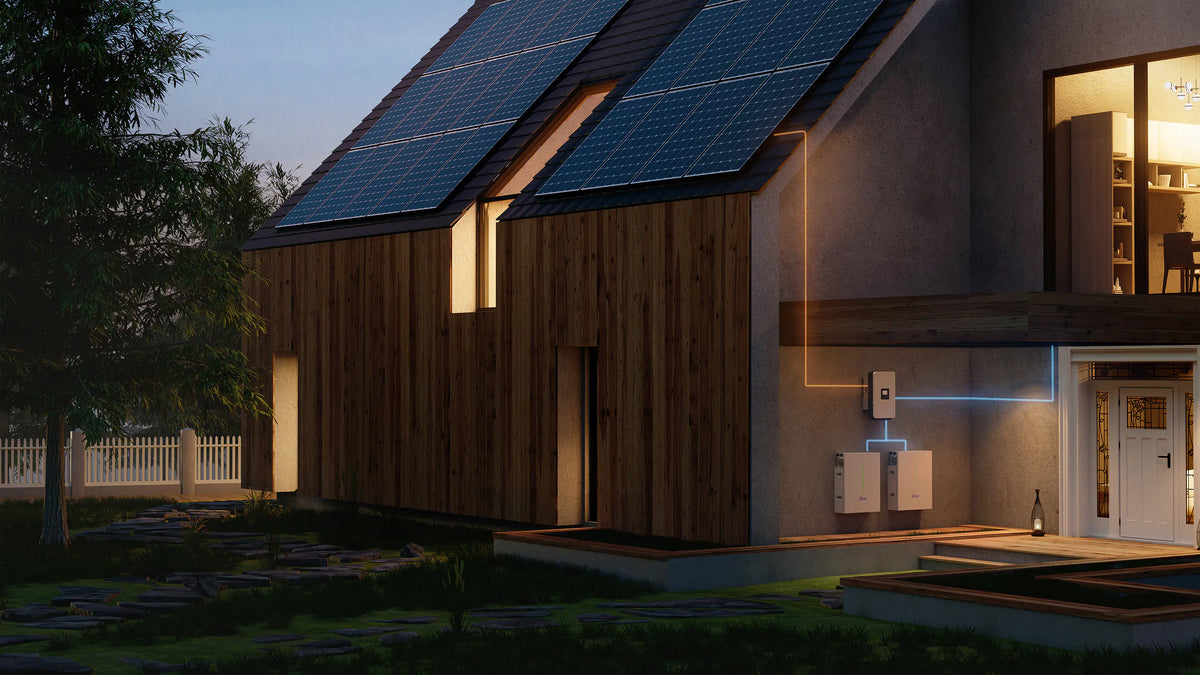

Turn daytime PV into evening household energy.

Hybrid PV input, battery charging, and 6 programmable time periods help SG05LP1-P move solar generation into the hours when the home needs it most.

Best for: Homes aiming to use more of their own daytime solar energy

A single-phase low-voltage hybrid inverter platform for solar self-use, backup, retrofit, generator, and expandable storage applications.

Technical Specifications

Core product identity, output range, battery platform, and installation profile.
Models
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P
Product Type
Single-phase low-voltage hybrid inverter
Output Power Options
3.6-10 kW
Grid Connection Form
L + N + PE
Battery Platform
40-60 V low-voltage battery
Parallel Operation
Max. 16 units in parallel for on-grid and off-grid operation
Ingress Protection
IP65
Battery-side voltage, current, lithium BMS adaptation, and scheduling data.
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range
40-60 V
Max. Charging Current
90 / 120 / 135 / 175 / 190 / 190 / 210 A
Max. Discharging Current
90 / 120 / 135 / 175 / 190 / 190 / 210 A
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Inputs
1
Battery Scheduling
6 time periods for battery charging/discharging
Solar input capacity, voltage limits, and MPPT/string configuration.
Max. PV Access Power
7.2 / 10 / 12 / 14 / 15.2 / 16 / 20 kW
Max. PV Input Power
5.76 / 8 / 9.6 / 11.2 / 12.16 / 12.8 / 16 kW
Max. PV Input Voltage
500 V
Start-up Voltage
125 V
MPPT Voltage Range
150-425 V
Rated PV Input Voltage
370 V
Max. Operating PV Input Current
13+13 A (3.6 kW) / 26+26 A (5-10 kW)
Max. Input Short-Circuit Current
17+17 A (3.6 kW) / 34+34 A (5-10 kW)
No. of MPPT / Strings
2/1+1 (3.6 kW) / 2/2+2 (5-10 kW)
AC power, current, passthrough, grid, and off-grid output data.
Rated AC Input/Output Active Power
3,600 / 5,000 / 6,000 / 7,000 / 7,600 / 8,000 / 10,000 W
Max. AC Input/Output Apparent Power
3,960 / 5,500 / 6,600 / 7,700 / 8,360 / 8,800 / 11,000 VA
Rated AC Input/Output Current
16.4/15.7 A, 22.7/21.7 A, 27.3/26.1 A, 31.9/30.5 A, 34.5/33 A, 36.4/34.8 A, 45.5/43.5 A
Max. AC Input/Output Current
18/17.2 A, 25/23.9 A, 30/28.7 A, 35.0/33.5 A, 38/36.3 A, 40/38.3 A, 50/47.9 A
Max. Continuous AC Passthrough
35 / 40 / 50 A
Peak Power (off-grid)
2 times rated power, 10 s
Rated Input/Output Voltage
220/230 V, 0.85Un-1.1Un
Grid Frequency / Range
50/45-55 Hz, 60/55-65 Hz
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
THDi
<3% of nominal power
DC Component of Grid
<0.5% In
Efficiency values and integrated protection functions.
Max. Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
>99%
Integrated Protection
DC reverse polarity, AC output overcurrent, thermal, AC output overvoltage, AC output short circuit, DC component monitoring, anti-islanding, DC switch, insulation impedance detection, residual current detection, AFCI optional
Surge Protection Level
Type II DC / Type II AC
Communication, display, environmental, mechanical, and warranty data.
Communication Interface
WIFI, RS485, CAN
Display
LCD
Operating Temperature Range
-40 to +60 C, >45 C derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000 m
Noise
<45 dB
Inverter Topology
Non-isolated
Over Voltage Category
OVC II (DC), OVC III (AC)
Cabinet Size (W x H x D)
330 x 580 x 232 mm (excluding connectors and brackets)
Weight
24.9 kg
Type of Cooling
Intelligent air cooling
Warranty
5 years

DOWNLOADS & DOCUMENTS

SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P DatasheetDatasheet SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P User ManualUser Manual

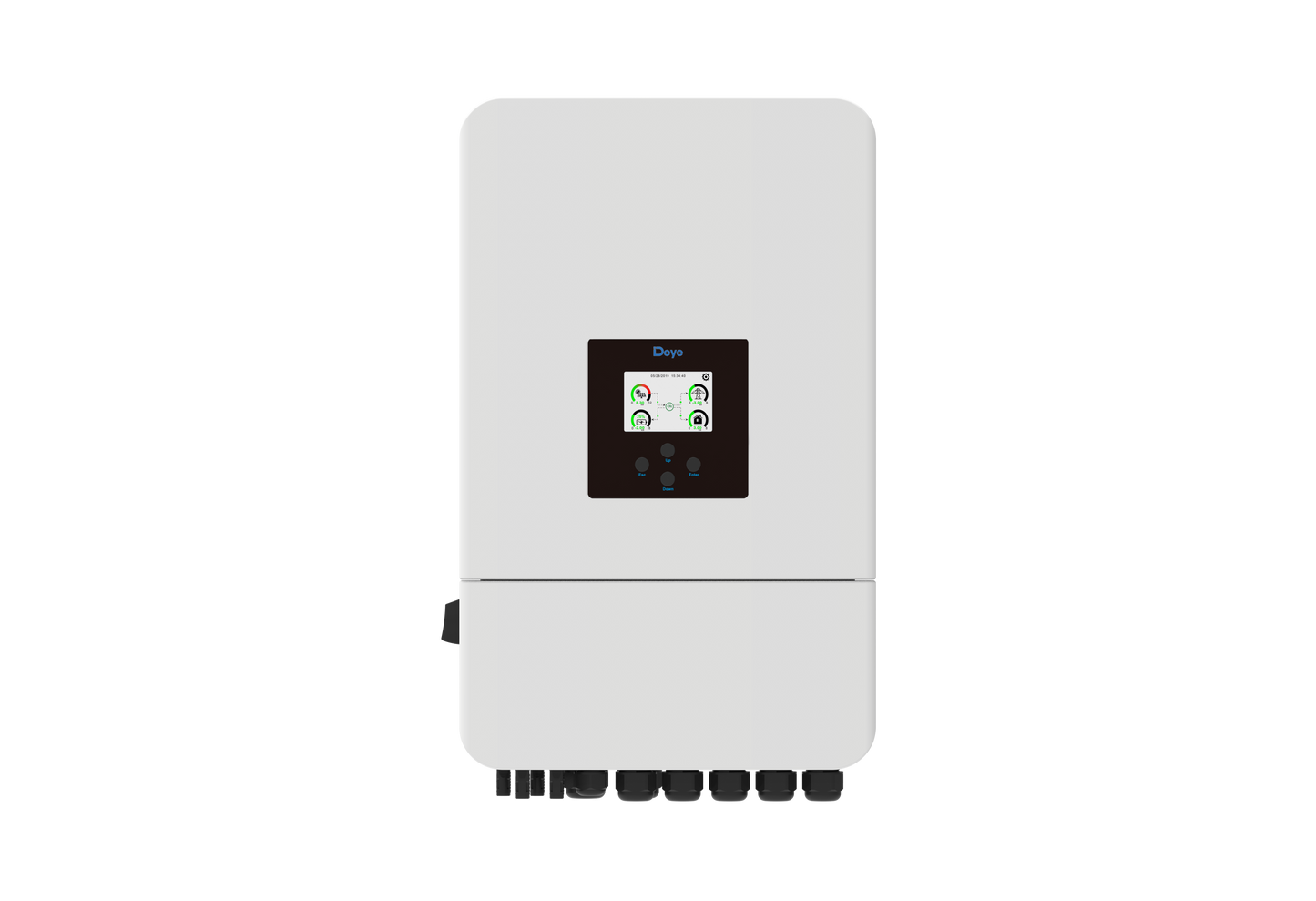

What's in the Box

Deye SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P – single-phase hybrid solar inverter with parallel-capable smart-meter kit
  1. 1 Deye SG05LP1-P single-phase hybrid inverterx1
  2. 2 Wall mounting bracketx1
  3. 3 Fastening screws / mounting accessoriesx1 set
  4. 4 Battery temperature sensorx1
  5. 5 User manualx1
  6. 6 Smart meter / CT accessoriesOptional
  7. 7 DataloggerOptional

Frequently Asked Questions

Deye SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P combines 3.6-10 kW single-phase hybrid output, 2 MPPT, 40-60 V low-voltage battery support, and on-grid/off-grid operation for residential solar storage projects.

Battery compatibility covers lead-acid and lithium-ion options across a 40-60 V voltage range. Lithium BMS self-adaption helps simplify integration, and max charging/discharging current reaches 90 / 120 / 135 / 175 / 190 / 190 / 210 A depending on selected model.

The SG05LP1-P platform uses 2 MPPT trackers. String configuration is 2/1+1 for the 3.6 kW model and 2/2+2 for 5-10 kW models, so installers can match PV strings to the chosen output power.

Yes. AC coupling can help retrofit compatible existing solar systems when the design, wiring, and commissioning are handled correctly.

Yes. Up to 16 inverters can operate in parallel for larger on-grid or off-grid systems, with multiple batteries in parallel when the full system is designed correctly.

Yes. Diesel generator energy storage support gives backup-focused installations another source of resilience during extended outages or weak-grid conditions.

IP65 ingress protection and intelligent air cooling support outdoor installation. Final placement, wiring, and protection must still follow the official manual and local electrical requirements.

Native interfaces include WIFI, RS485, CAN. With the optional Deye Smart Transmitter SUN-SMART-TX01, compatible CT and wireless energy-management accessories can also communicate via LoRa. Battery communication depends on the selected battery and system design.
