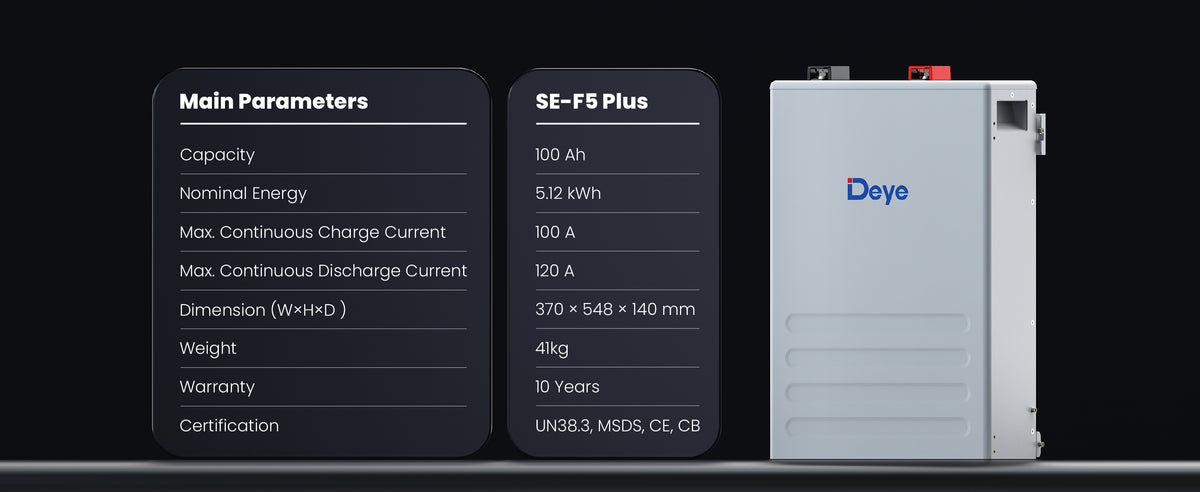

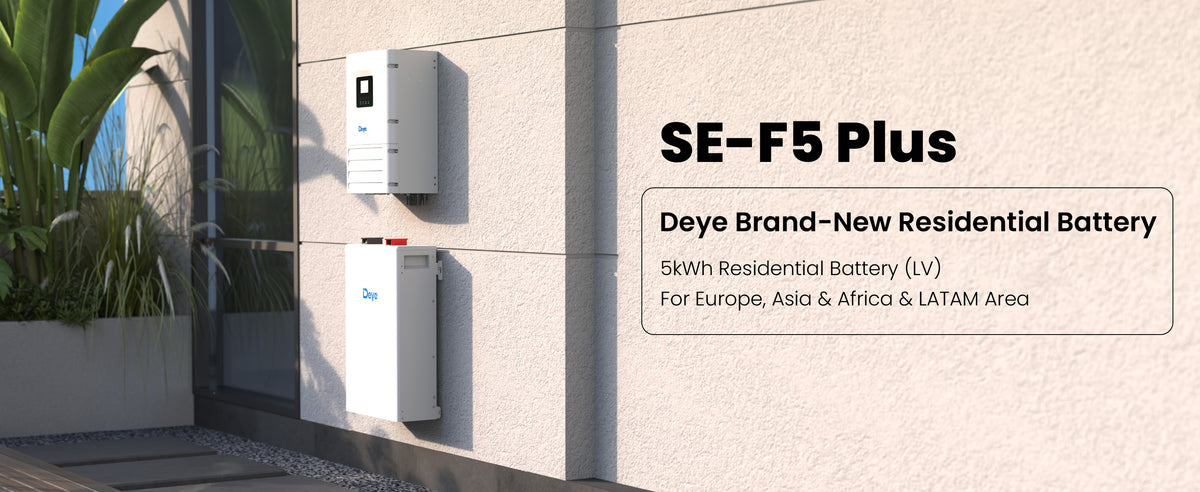

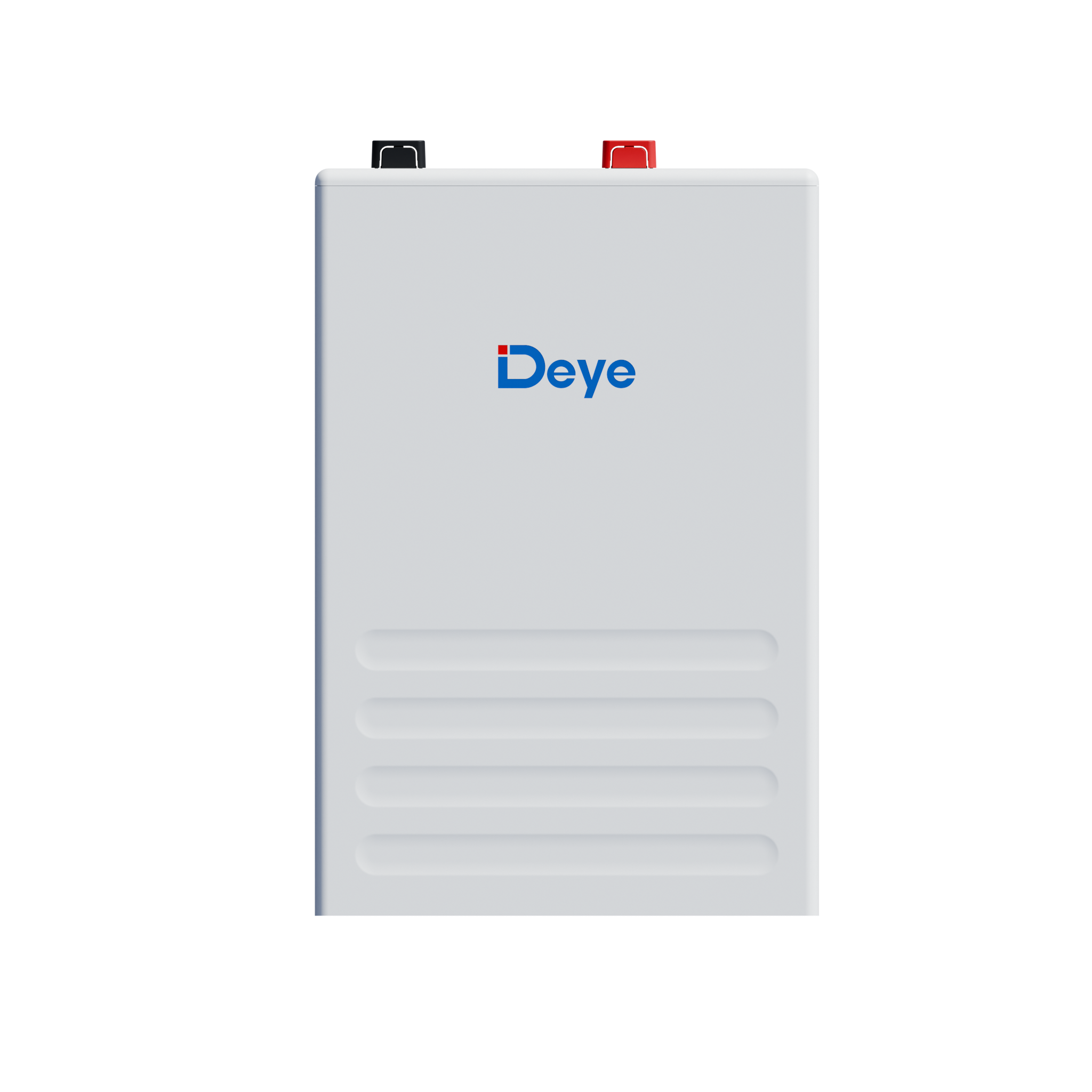

SE-F5 Plus is a residential LiFePO4 ESS battery for low-voltage home energy storage. It provides 5.12 kWh nominal energy, 100 Ah rated capacity, and 51.2 V nominal voltage.

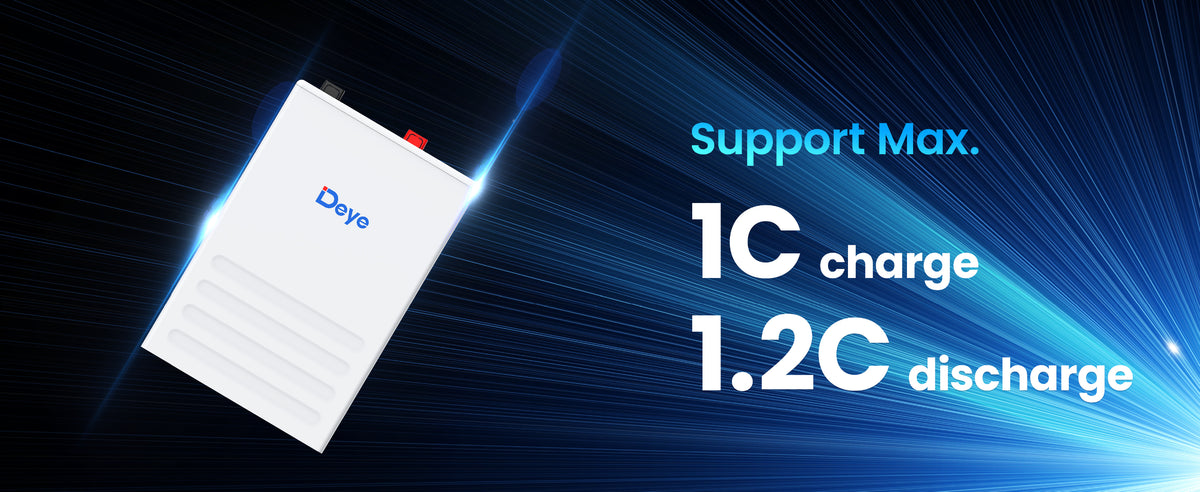

SE-F5 Plus supports a 44.8 V - 57.6 V operating voltage range, 100 A max. continuous charge current, 120 A peak charge current for 10 seconds, 120 A max. continuous discharge current, and 150 A peak discharge current for 10 seconds.

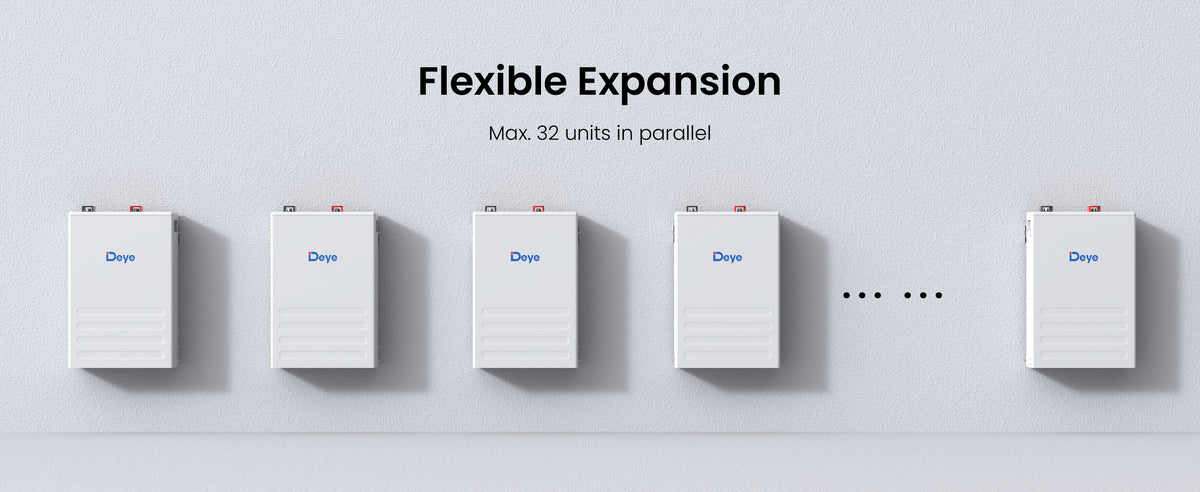

SE-F5 Plus supports up to 32 units in parallel. In supported configurations with CAN-Bridge, the system can scale up to 64 units.

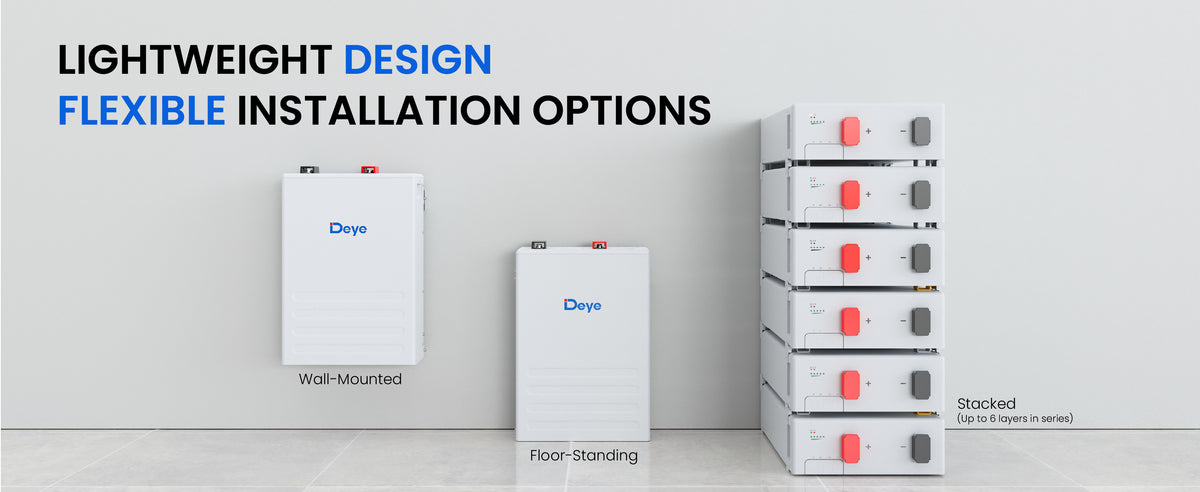

The battery measures 370 x 548 x 140 mm without the hanging board and weighs approximately 41 kg. It has an IP21 rating and supports wall-mounted, floor-mounted, and stack-mounted installation.

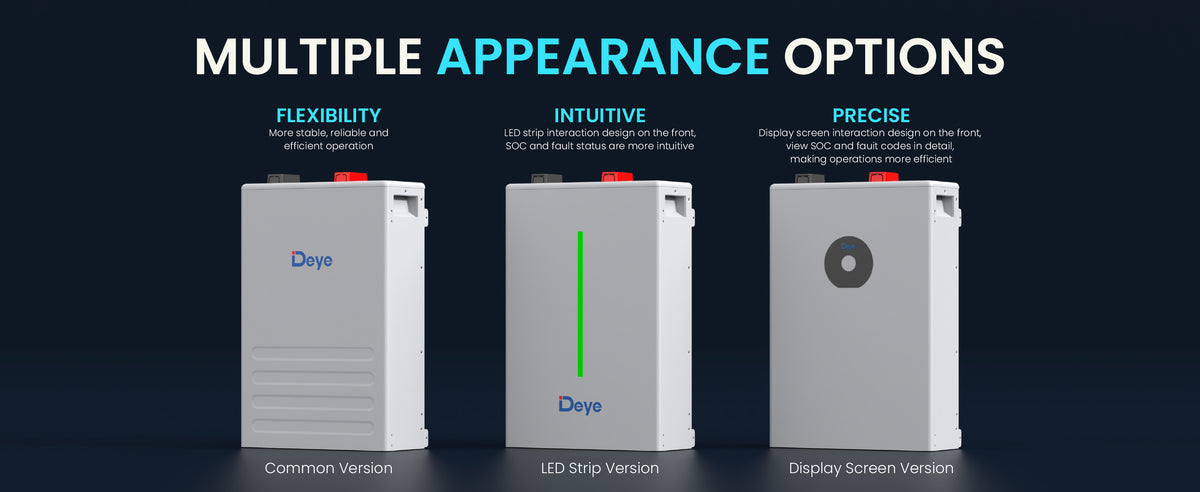

Communication support includes CAN2.0, RS485, and Bluetooth+APP. The product also provides SOC, working, protecting & buzzer indication.
The download area includes the SE-F series solution brochure, Deye ESS User Manual SE-F5 Plus EU (EN) V07, and Deye Cloud APP Quick Guide English. Product documentation also includes UN38.3 and MSDS references.
SE-F5 Plus supports -10°C to 55°C for charging, -20°C to 55°C for discharging, and 0°C to 35°C for storage. It also supports 95% non-condensing relative humidity and altitude up to 3000 m.
The package includes the battery pack, PCS communication cable, ground wire, hooks, positive and negative battery power cables, expansion bolts, bolts, brackets, user manual, logo sticker, and positioning paperboard.
The SE-F series solution brochure pairs SE-F5 Plus with Deye SUN-3K / 3.6K / 5K / 6K-OG01LP1-EU-AM2 low-voltage hybrid inverter systems.

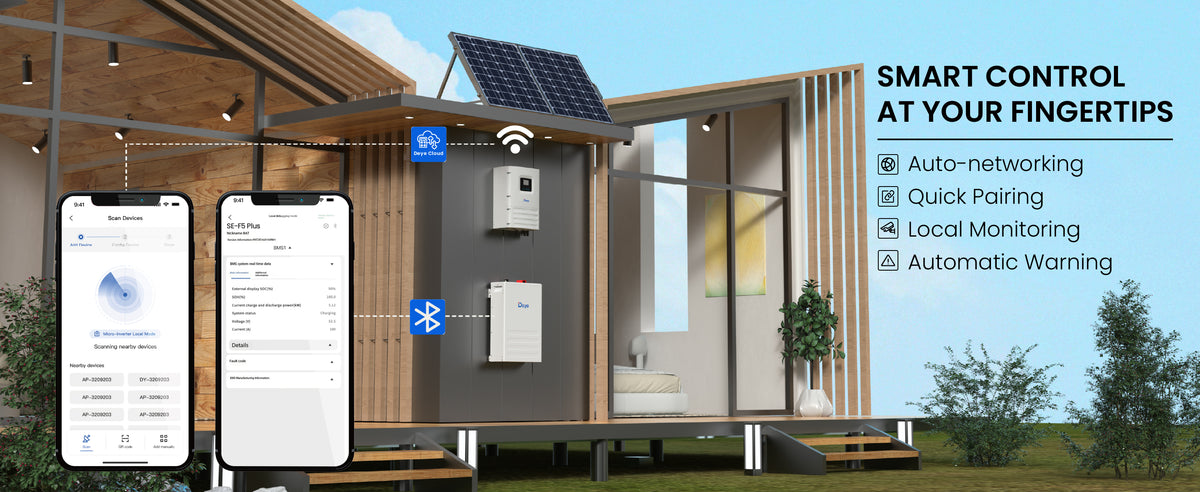

Yes. SE-F5 Plus supports Bluetooth+APP communication for app-supported monitoring in compatible system setups.
The SE-F5 Plus documentation includes a 10-year warranty reference and 16 MWh energy throughput. Warranty coverage is subject to Deye's applicable warranty terms.
