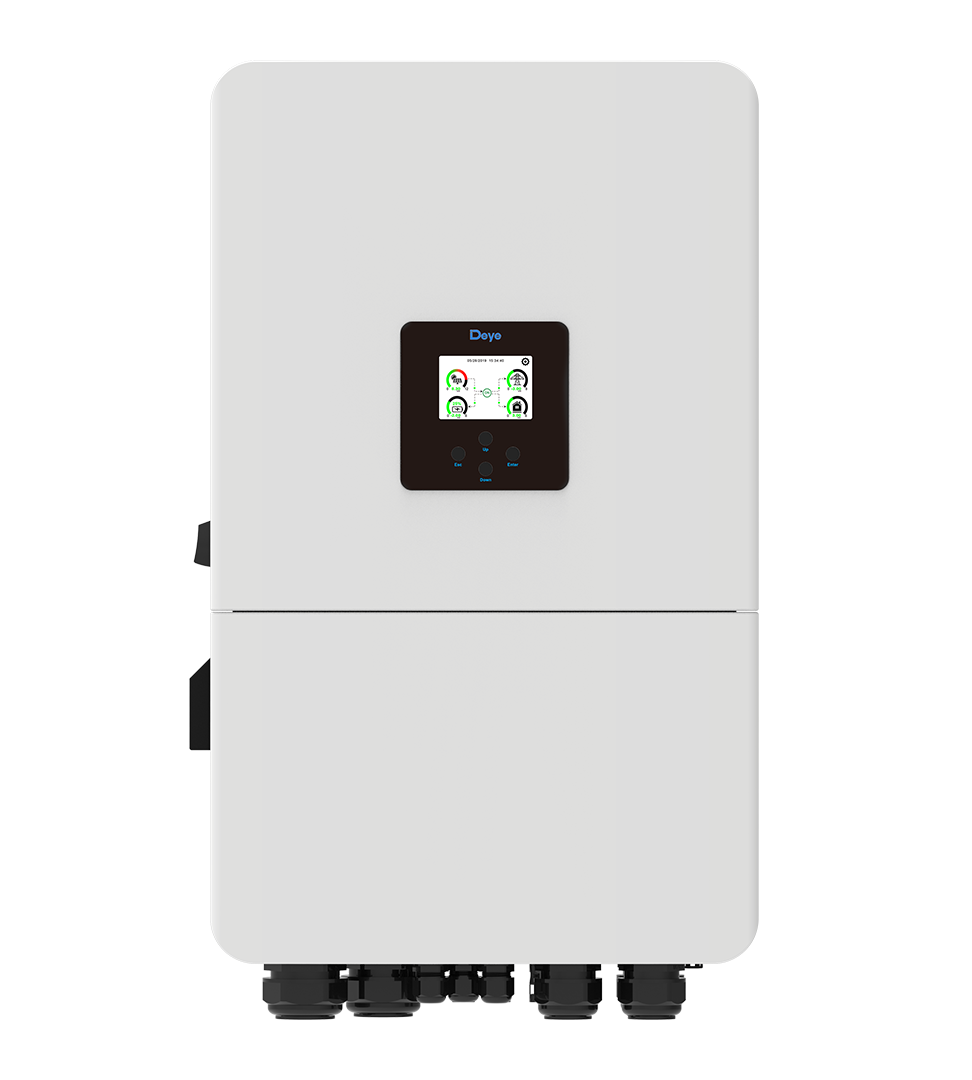

Deye Hybrid Inverter | SUN-6/8/10/12K-SG05LP3-EU-SM2

Price
Output Power
Availability Out Of Stock
6-12 kW three-phase hybrid inverter
48 V low-voltage battery
2 MPPT | LV battery supported

Flexible 6-12 kW three-phase hybrid inverter for low-voltage battery systems. The Deye SUN-6/8/10/12K-SG05LP3-EU-SM2 series gives homeowners and installers a scalable 48 V hybrid platform for solar self-use, backup-ready energy storage, and smart grid interaction.

Choose the right output power without changing the platform. Select 6 kW, 8 kW, 10 kW, or 12 kW from the same SG05LP3-EU-SM2 family, all with three-phase AC output, 2 MPPT design, LV battery support, and Deye hybrid operating modes.

Built for practical residential storage. The series supports lead-acid or lithium-ion batteries across a 40-60 V range, lithium BMS self-adaption, 6 programmable battery charge/discharge time periods, and up to 240 A max charging/discharging current depending on selected model.

More design freedom for solar and backup projects. Use AC coupling to retrofit compatible existing solar systems, connect up to 10 units in parallel for on-grid or off-grid operation, support multiple batteries in parallel, and store energy from a diesel generator when the site requires it.

Outdoor-ready, installer-friendly hardware. IP65 protection, intelligent air cooling, LCD display, and WIFI / RS485 / CAN communication make this series a strong fit for European three-phase home energy storage projects.

Deye Hybrid Inverter | SUN-6/8/10/12K-SG05LP3-EU-SM2

€0,00

Key Features

Choose the power level that fits your home.

Pick the right 6-12 kW output for your home today without changing inverter families later. It keeps the same three-phase hybrid platform, so your installer can size the system around your real household load instead of forcing a one-size-fits-all setup.

6-12 kWSelectable Power
3-PhaseHome Supply
48 VBattery Platform

Store more solar energy for evenings and outages.

Pair the inverter with a low-voltage battery system to keep more of your daytime solar power for night-time use, peak-rate hours, or backup moments. It supports lead-acid or lithium-ion batteries, 40-60 V operation, and up to 135-240 A charge/discharge current depending on the selected model.

40-60 VBattery Range
135-240 ABattery Current
BMSSelf-Adaption

Get more from the roof you already paid for.

Two MPPT trackers help the system harvest solar from different roof directions more effectively. With 12-24 kW max PV access power, 9.6-19.2 kW max PV input power, and 800 V max PV voltage, the inverter gives your solar array room to work hard.

2MPPT
12-24 kWPV Access
800 VPV Input

Ready when your energy needs grow.

Start with the system your home needs now, then expand as your energy use changes. The platform supports up to 10 units in parallel, multiple batteries in parallel, generator charging, and AC coupling for compatible existing solar systems.

10Parallel Units
ACCoupling
DGGenerator

Built for daily life, not just the equipment room.

IP65 protection, intelligent air cooling, LCD display, and WIFI / RS485 / CAN communication help the inverter fit real homes and real weather. Six battery charge/discharge time periods let you schedule energy use around solar production and electricity tariffs.

IP65Protection
6Time Periods
WIFIMonitoring

Electrical values vary by selected output power. Please use the technical table for final system sizing.

FeatureCurrent Model
SUN-6/8/10/12K-SG05LP3-EU-SM2
SUN-14/15/16/18/20K-SG05LP3-EU-SM2
Output Power Options6 / 8 / 10 / 12 kW 14 / 15 / 16 / 18 / 20 kW
Max Charging/Discharging Current135-240 A 260-350 A
Number of Battery Inputs1 2
Max PV Access Power12-24 kW 28-40 kW
MPPT / Strings2 / 1+1 or 2+2 2 / 2+2
Max Continuous AC Passthrough45 A 70 A
Cabinet Size (W x H x D)386 x 660 x 250 mm 456 x 750 x 268.5 mm
Weight35.2 kg 51.9 kg
Shared Platform48 V LV battery, IP65, WIFI/RS485/CAN 48 V LV battery, IP65, WIFI/RS485/CAN

Product Highlights

Turn daytime PV into usable home energy.

With hybrid PV input, battery charging, and programmable operating modes, SG05LP3 helps households store solar energy and use it when it matters most.

Best for: Three-phase homes planning low-voltage battery storage

A three-phase low-voltage hybrid inverter platform for solar self-use, backup, retrofit, generator, and expandable storage applications.

Technical Specifications

Core product identity, battery platform, and system architecture.
Models
SUN-6/8/10/12K-SG05LP3-EU-SM2
Product Type
Three-phase hybrid inverter
Output Power Options
6-12 kW
Grid Connection Form
3L + N + PE
Battery Platform
48 V low-voltage battery
Inverter Topology
Non-isolated (solar), isolated (battery)
Parallel Operation
Max. 10 units in parallel for on-grid and off-grid operation
Battery-side voltage, current, BMS, and scheduling data.
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range
40-60 V
Max. Charging/Discharging Current
135-240 A
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Inputs
1
Battery Scheduling
6 time periods for battery charging/discharging
Solar input capacity, voltage limits, and MPPT/string configuration.
Max. PV Access Power
12-24 kW
Max. PV Input Power
9.6-19.2 kW
Max. PV Input Voltage
800 V
Start-up Voltage
160 V
MPPT Voltage Range
200-650 V
Rated PV Input Voltage
550 V
Max. Operating PV Input Current
20+20 A (6 kW) / 26+26 A (8-12 kW)
Max. Input Short-Circuit Current
30+30 A (6 kW) / 39+39 A (8-12 kW)
No. of MPPT / Strings
2/1+1 (6 kW) / 2/2+2 (8-12 kW)
AC power, current, passthrough, grid, and off-grid output data.
Rated AC Input/Output Active Power
6,000 / 8,000 / 10,000 / 12,000 W
Max. AC Input/Output Apparent Power
6,600 / 8,800 / 11,000 / 13,200 VA
Rated AC Input/Output Current
9.1/8.7 A, 12.2/11.6 A, 15.2/14.5 A, 18.2/17.4 A
Max. AC Input/Output Current
10/9.6 A, 13.4/12.8 A, 16.7/16 A, 20/19.2 A
Max. Continuous AC Passthrough
45 A
Peak Power (off-grid)
2 times rated power, 10 s
Rated Input/Output Voltage
220/380 V, 230/400 V; 0.85Un-1.1Un
Grid Frequency / Range
50/45-55 Hz, 60/55-65 Hz
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
THDi
<3% (of nominal power)
DC Component of Grid
<0.5% In
Inverter and MPPT efficiency data.
Max. Efficiency
97.6%
Euro Efficiency
97.0%
MPPT Efficiency
>99%
Integrated protection, display, communication, and surge protection data.
Integrated Protection
DC reverse polarity, AC output overcurrent, thermal, AC overvoltage, AC short circuit, DC component monitoring, anti-islanding, DC switch, insulation impedance, residual current detection
Surge Protection Level
TYPE II (DC), TYPE II (AC)
Display
LCD
Communication Interface
WIFI, RS485, CAN
Generator Support
Support storing energy from diesel generator
AC Coupling
AC couple to retrofit existing solar system
Mechanical size, cooling, IP rating, and site environment data.
Cabinet Size (W x H x D)
386 x 660 x 250 mm
Size Note
Excluding connectors and brackets
Weight
35.2 kg
Operating Temperature Range
-40 C to +60 C, >45 C derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
3000 m
Noise
<=55 dB
Ingress Protection Rating
IP65
Cooling
Intelligent air cooling
Grid regulation, safety standards, over-voltage category, and warranty note.
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Over Voltage Category
OVC II (DC), OVC III (AC)
Warranty
5 Years / 10 Years depending on final installation site

DOWNLOADS & DOCUMENTS

SUN-6/8/10/12K-SG05LP3-EU-SM2 DatasheetDatasheet SUN-6/8/10/12K-SG05LP3-EU-SM2 User ManualUser Manual

What's in the Box

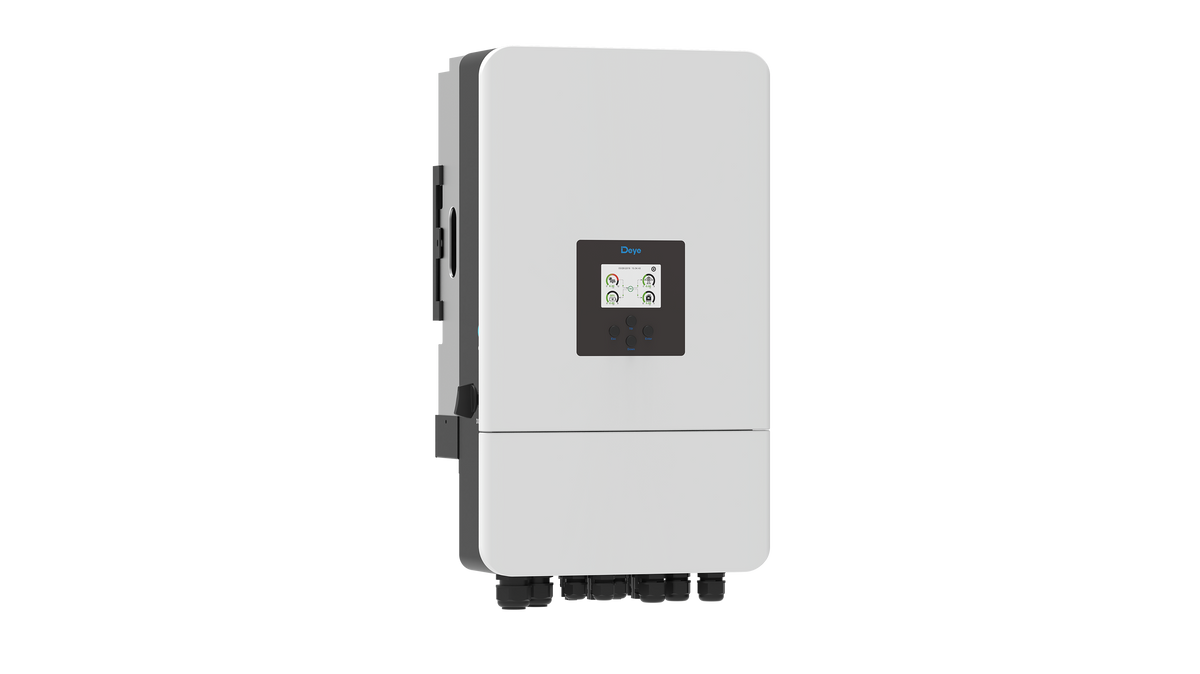

Deye Hybrid Inverter | SUN-6/8/10/12K-SG05LP3-EU-SM2 official image 2
  1. 1 Deye SG05LP3 three-phase hybrid inverterx1
  2. 2 Wall mounting bracketx1
  3. 3 Stainless steel anti-collision boltsx4
  4. 4 Parallel communication cablex1
  5. 5 Battery temperature sensorx1
  6. 6 User manualx1
  7. 7 Three-phase smart meter with sensor clampsOptional
  8. 8 DataloggerOptional

Frequently Asked Questions

It is a 6-12 kW three-phase low-voltage hybrid inverter series with 2 MPPT, 48 V battery support, and on-grid/off-grid operation for solar storage systems.

It supports lead-acid or lithium-ion batteries across a 40-60 V battery voltage range, with lithium BMS self-adaption and up to 135-240 A max charging/discharging current depending on the selected model.

The SG05LP3-EU-SM2 series uses 2 MPPT trackers. String configuration is 2/1+1 (6 kW) / 2/2+2 (8-12 kW) depending on the selected model group.

Yes. AC coupling support makes it suitable for retrofitting compatible existing solar systems into a hybrid storage setup.

Yes. You can connect up to 10 units in parallel for on-grid or off-grid operation, with support for multiple batteries in parallel.

Yes. The series supports storing energy from a diesel generator.

The inverter has an IP65 ingress protection rating and intelligent air cooling. Final installation must follow the official manual and local electrical requirements.

The inverter includes an LCD display and supports WIFI, RS485, and CAN communication for monitoring and system integration. For LoRa-based wireless integration, pair the system with the SUN-SMART-TX01 transmitter accessory.
