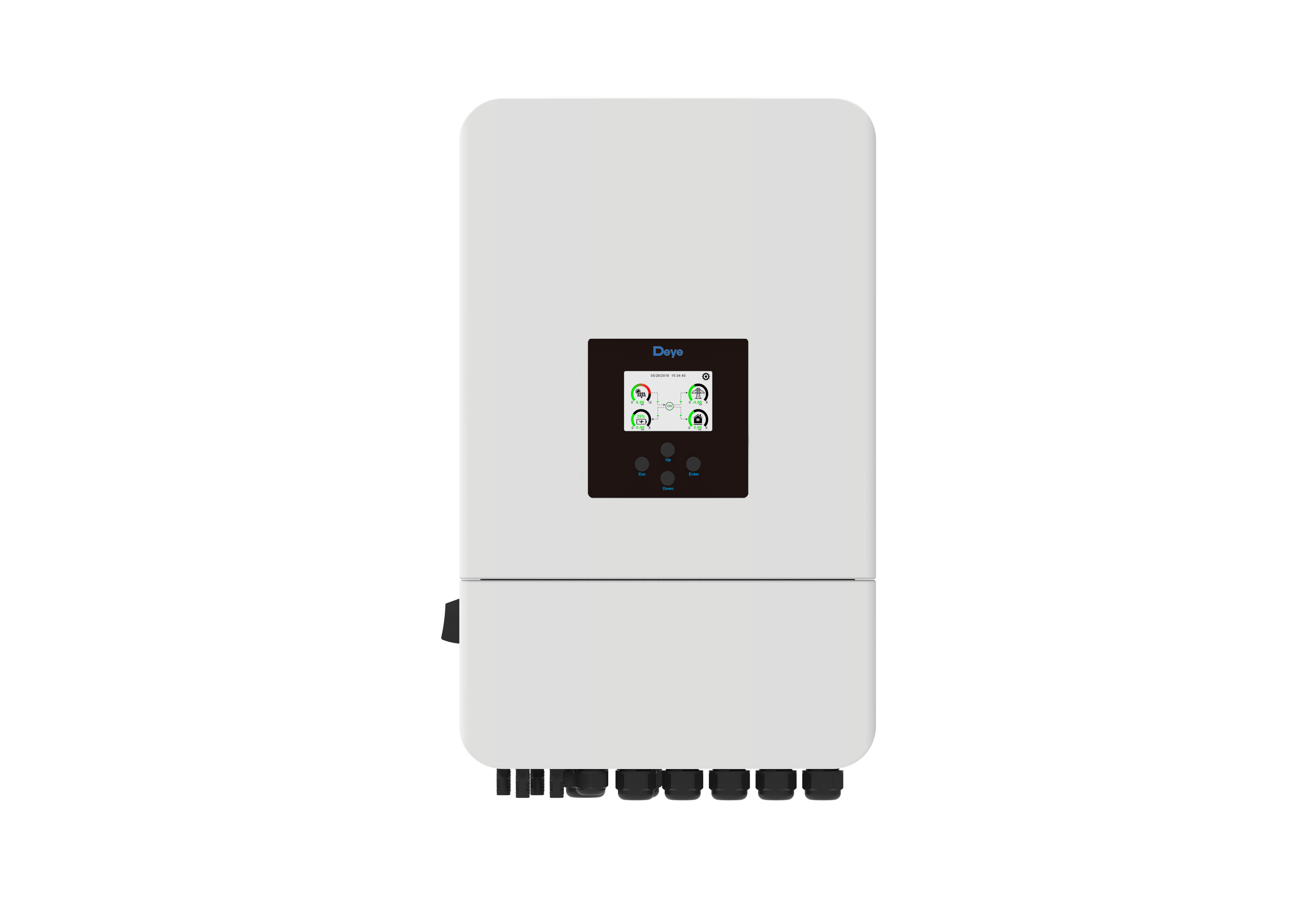

Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit

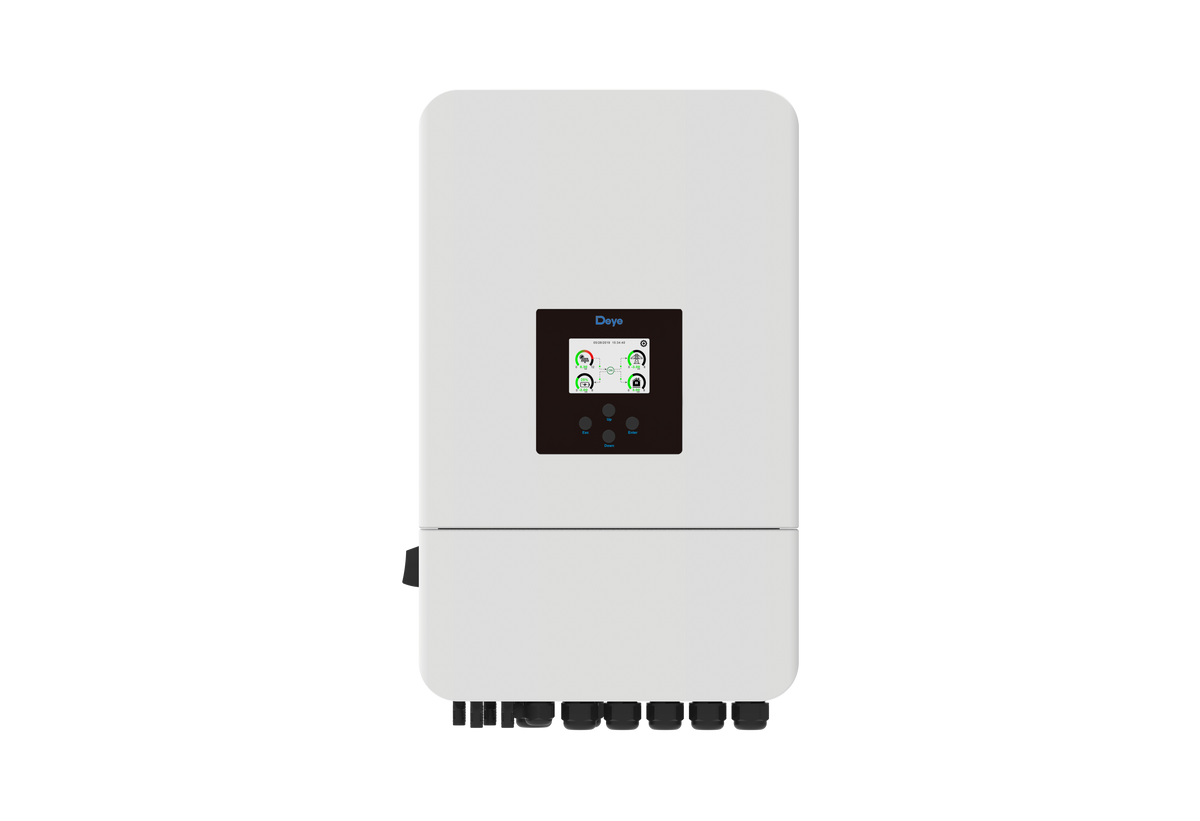

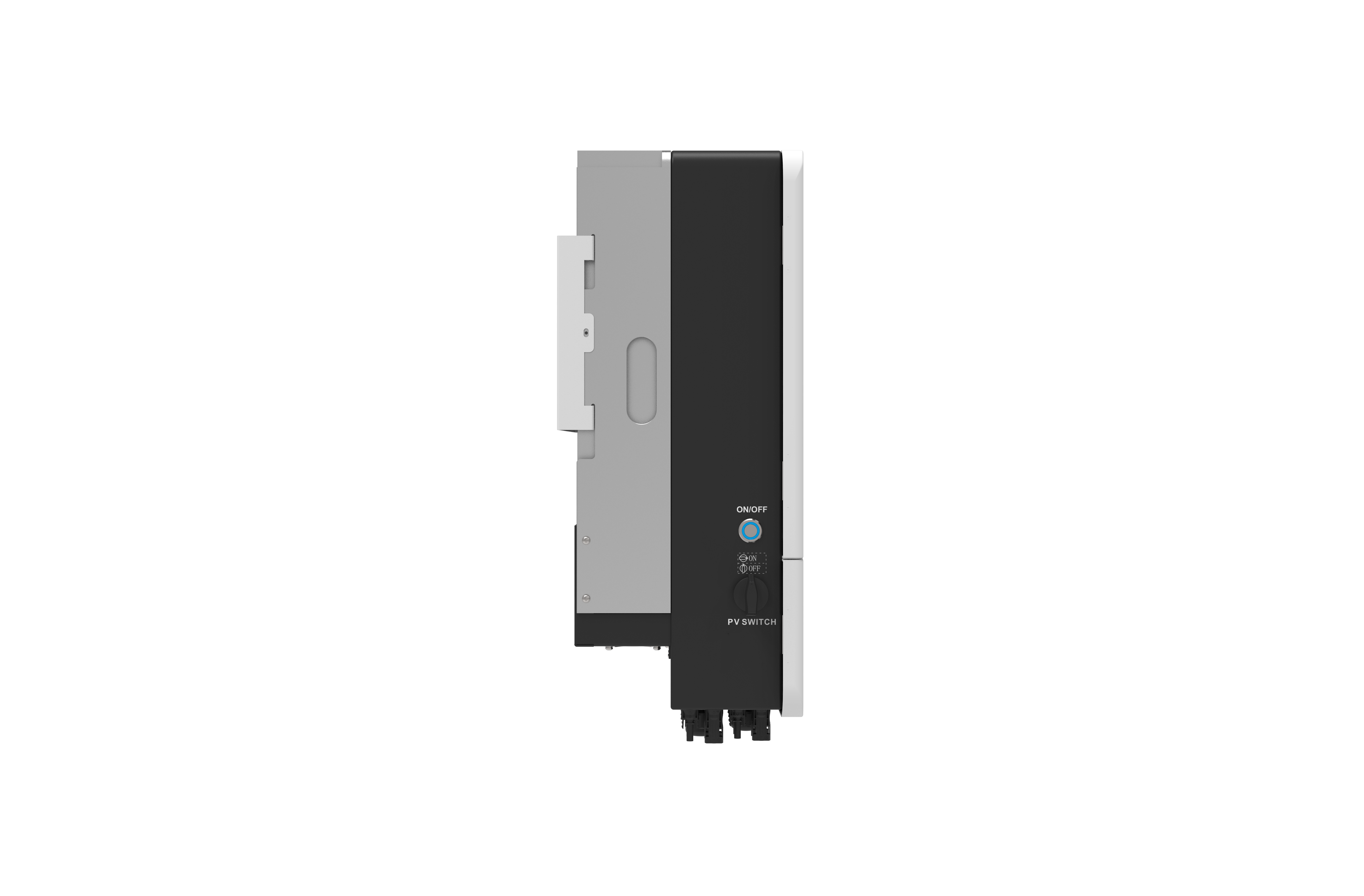

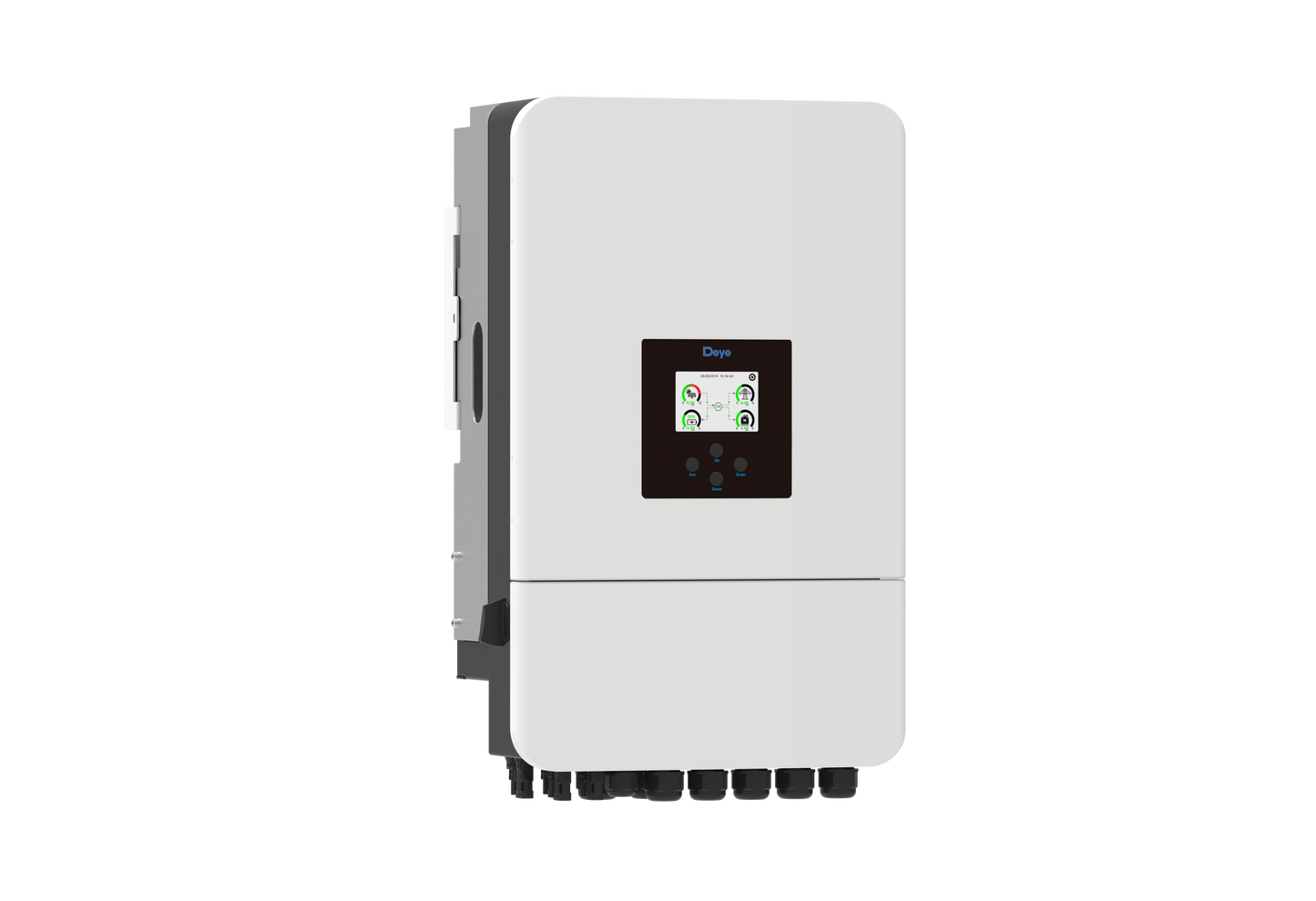

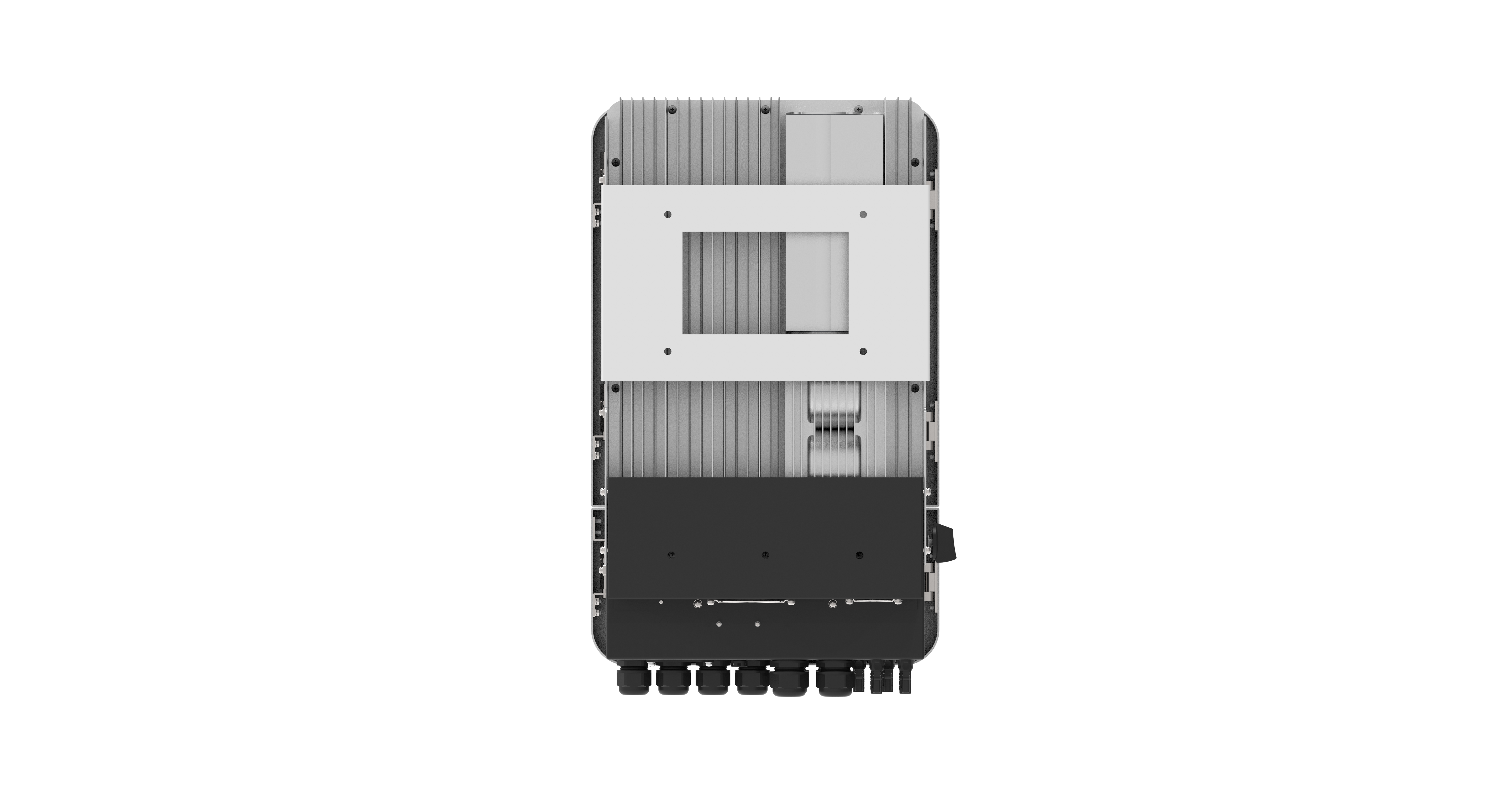

Deye Hybrid Inverter | SUN-7/7.6/8/10K-SG05LP1-EU-SM2

Price
Output Power
Availability Out Of Stock
7-10 kW single-phase hybrid inverter
48 V low-voltage battery
2 MPPT | Up to 16 units parallel

7-10 kW single-phase hybrid inverter platform for low-voltage battery systems. The Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 series is built for residential solar systems that need PV generation, battery storage, backup support, and daily energy scheduling in one compact platform.

Choose the right output power for the home. Select 7-10 kW output while staying on the same SG05LP1 single-phase hybrid architecture with 2 MPPT and 40-60 V battery support.

Designed for strong battery performance. The series supports lead-acid or lithium-ion batteries, lithium BMS self-adaption, 6 programmable charge/discharge time periods, and 175 / 190 / 190 / 210 A max charging/discharging current depending on selected model.

Built for backup, retrofit, and expandable storage projects. AC coupling supports compatible existing solar systems, diesel generator energy storage support adds resilience, and up to 16 units can operate in parallel for larger on-grid or off-grid installations.

Installation-friendly and outdoor-ready. IP65 protection, Colorful touch LCD, intelligent air cooling, RS485, RS232, CAN communication, and Type II surge protection on DC and AC sides make the platform practical for European residential ESS projects.

Deye Hybrid Inverter | SUN-7/7.6/8/10K-SG05LP1-EU-SM2

€0,00

Key Features

Serious single-phase power for bigger homes.

Choose 7 kW, 7.6 kW, 8 kW, or 10 kW output for homes with heavier daily loads, larger PV arrays, EV charging plans, or stronger backup expectations, while keeping a compact single-phase hybrid platform.

7-10 kWOutput Range
1PSingle Phase
LVBattery

High-current 48 V storage that can keep up with real homes.

Pair the inverter with lead-acid or lithium-ion low-voltage batteries across a 40-60 V range, with up to 210 A charge/discharge current depending on selected model for stronger daily self-use and backup performance.

40-60 VBattery
210 AMax Current
BMSSelf-adaption

More PV headroom for modern rooftop solar.

With 2 MPPT, 2+2 strings, 500 V max PV input voltage, and up to 20 kW max PV access power on the 10 kW model, the series gives installers more freedom for larger or split-orientation rooftops.

2MPPT
20 kWPV Access
500 VPV Voltage

Ready for retrofit, backup, and future expansion.

Add batteries to compatible existing solar systems with AC coupling, store energy from a diesel generator when needed, and scale demanding projects with up to 16 units in parallel for on-grid or off-grid operation.

16Parallel Units
ACCoupling
DGGenerator

Smarter daily control in an outdoor-ready design.

IP65 protection, a colorful touch LCD, intelligent air cooling, RS485 / RS232 / CAN communication, and 6 programmable time periods make it easier to tune battery charging around solar production, tariffs, and backup needs.

IP65Protection
6Time Periods
LCDTouch Display

Designed for larger single-phase residential ESS projects. Electrical values vary by selected output power; use the technical table for final system sizing.

Comparison Table

Feature
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P
SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-AM2-P
Current Model
SUN-7/7.6/8/10K-SG05LP1-EU-SM2
SUN-7.5K-SG05LP1-EU-SM2-P
Output Power Range3.6-10 kW 3.6-10 kW 3.6-10 kW 7-10 kW 7.5 kW
Battery Platform40-60 V LV 40-60 V LV 40-60 V LV 40-60 V LV 40-60 V LV
Max Battery CurrentUp to 210 A Up to 210 A Up to 210 A Up to 210 A Up to 190 A
MPPT / Strings2 / 1+1 or 2+2 2 / 1+1 or 2+2 2 / 1+1 or 2+2 2 / 2+2 2 / 2+2
Max PV Access Power7.2-20 kW 7.2-20 kW 7.2-20 kW 14-20 kW 15.2 kW
Max PV Input Voltage500 V 500 V 500 V 500 V 500 V
AC Coupling RetrofitSupported Supported Supported Supported Supported
Generator Energy StorageSupported Supported Supported Supported Supported
Parallel OperationMax. 16 units Max. 16 units Max. 16 units Max. 16 units Max. 16 units
DisplayLCD LCD LCD Colorful touch LCD Colorful touch LCD
CommunicationWIFI / RS485 / CAN WIFI / RS485 / CAN WIFI / RS485 / CAN RS485 / RS232 / CAN RS485 / RS232 / CAN
ProtectionIP65 IP65 IP65 IP65 IP65

Product Highlights

Turn daytime PV into evening household energy.

Hybrid PV input, battery charging, and 6 programmable time periods help SG05LP1-SM2 move solar generation into the hours when the home needs it most.

Best for: Homes aiming to use more of their own daytime solar energy

A single-phase low-voltage hybrid inverter platform for solar self-use, backup, retrofit, generator, and expandable storage applications.

Technical Specifications

Core product identity, output range, battery platform, and installation profile.
Models
SUN-7/7.6/8/10K-SG05LP1-EU-SM2
Product Type
Single-phase low-voltage hybrid inverter
Output Power Options
7-10 kW
Grid Connection Form
L + N + PE
Battery Platform
40-60 V low-voltage battery
Parallel Operation
Max. 16 units in parallel for on-grid and off-grid operation
Ingress Protection
IP65
Battery-side voltage, current, lithium BMS adaptation, and scheduling data.
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range
40-60 V
Max. Charging Current
175 / 190 / 190 / 210 A
Max. Discharging Current
175 / 190 / 190 / 210 A
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Inputs
1
Battery Scheduling
6 time periods for battery charging/discharging
Solar input capacity, voltage limits, and MPPT/string configuration.
Max. PV Access Power
14 / 15.2 / 16 / 20 kW
Max. PV Input Power
11.2 / 12.16 / 12.8 / 16 kW
Max. PV Input Voltage
500 V
Start-up Voltage
125 V
MPPT Voltage Range
150-425 V
Rated PV Input Voltage
370 V
Max. Operating PV Input Current
26+26 A
Max. Input Short-Circuit Current
34+34 A
No. of MPPT / Strings
2/2+2
AC power, current, passthrough, grid, and off-grid output data.
Rated AC Input/Output Active Power
7,000 / 7,600 / 8,000 / 10,000 W
Max. AC Input/Output Apparent Power
7,700 / 8,360 / 8,800 / 11,000 VA
Rated AC Input/Output Current
31.9/30.5 A, 34.6/33.1 A, 36.4/34.8 A, 45.5/43.5 A
Max. AC Input/Output Current
35/33.5 A, 38/36.4 A, 40/38.3 A, 50/47.9 A
Max. Continuous AC Passthrough
50 A
Peak Power (off-grid)
2 times rated power, 10 s
Rated Input/Output Voltage
220/230 V, 0.85Un-1.1Un
Grid Frequency / Range
50/45-55 Hz, 60/55-65 Hz
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
THDi
<3% of nominal power
DC Component of Grid
<0.5% In
Efficiency values and integrated protection functions.
Max. Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
>99%
Integrated Protection
DC reverse polarity, AC output overcurrent, thermal, AC output overvoltage, AC output short circuit, DC component monitoring, AFCI optional, anti-islanding, DC switch, insulation impedance detection, residual current detection
Surge Protection Level
Type II DC / Type II AC

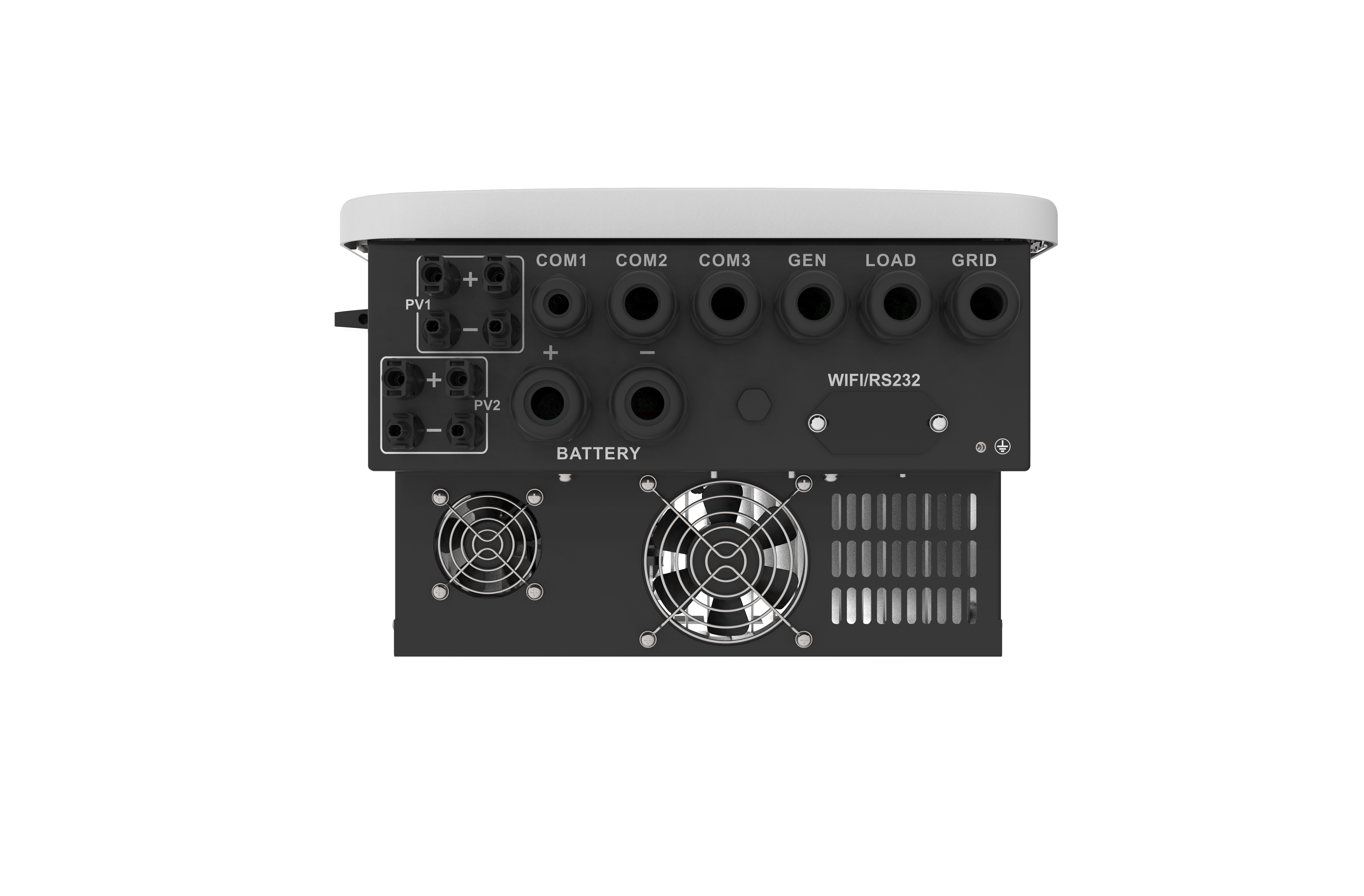

Communication, display, environmental, mechanical, and warranty data.
Communication Interface
RS485, RS232, CAN
Display
Colorful touch LCD
Operating Temperature Range
-40 to +60 C, >45 C derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000 m
Noise
<45 dB
Inverter Topology
Non-isolated
Over Voltage Category
OVC II (DC), OVC III (AC)
Cabinet Size (W x H x D)
366 x 589.5 x 237 mm
Weight
26.8 kg
Type of Cooling
Intelligent air cooling
Warranty
5 Years / 10 Years depending on final installation site and warranty policy

DOWNLOADS & DOCUMENTS

SUN-7/7.6/8/10K-SG05LP1-EU-SM2 DatasheetDatasheet SUN-7/7.6/8/10K-SG05LP1-EU-SM2 User ManualUser Manual

What's in the Box

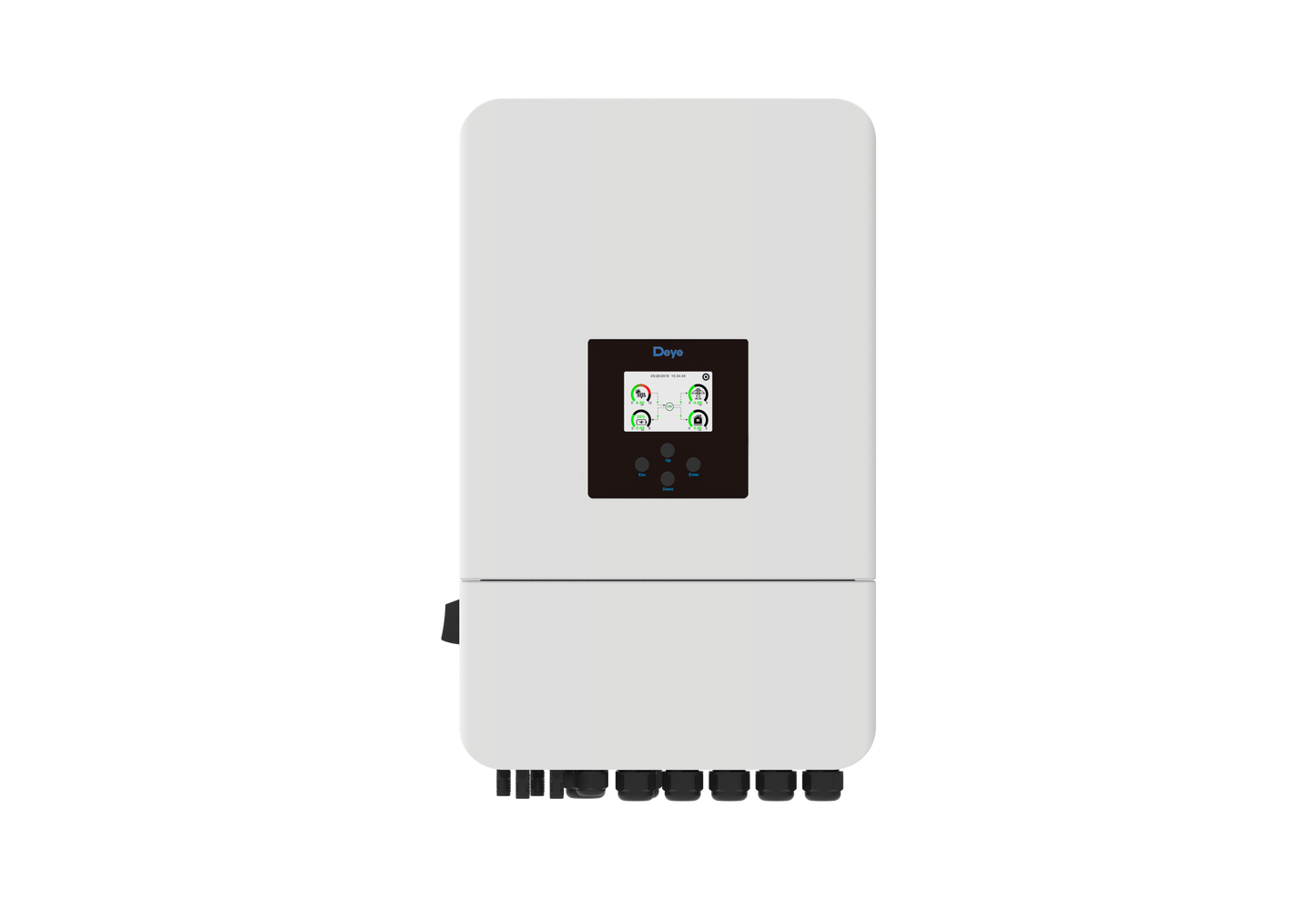

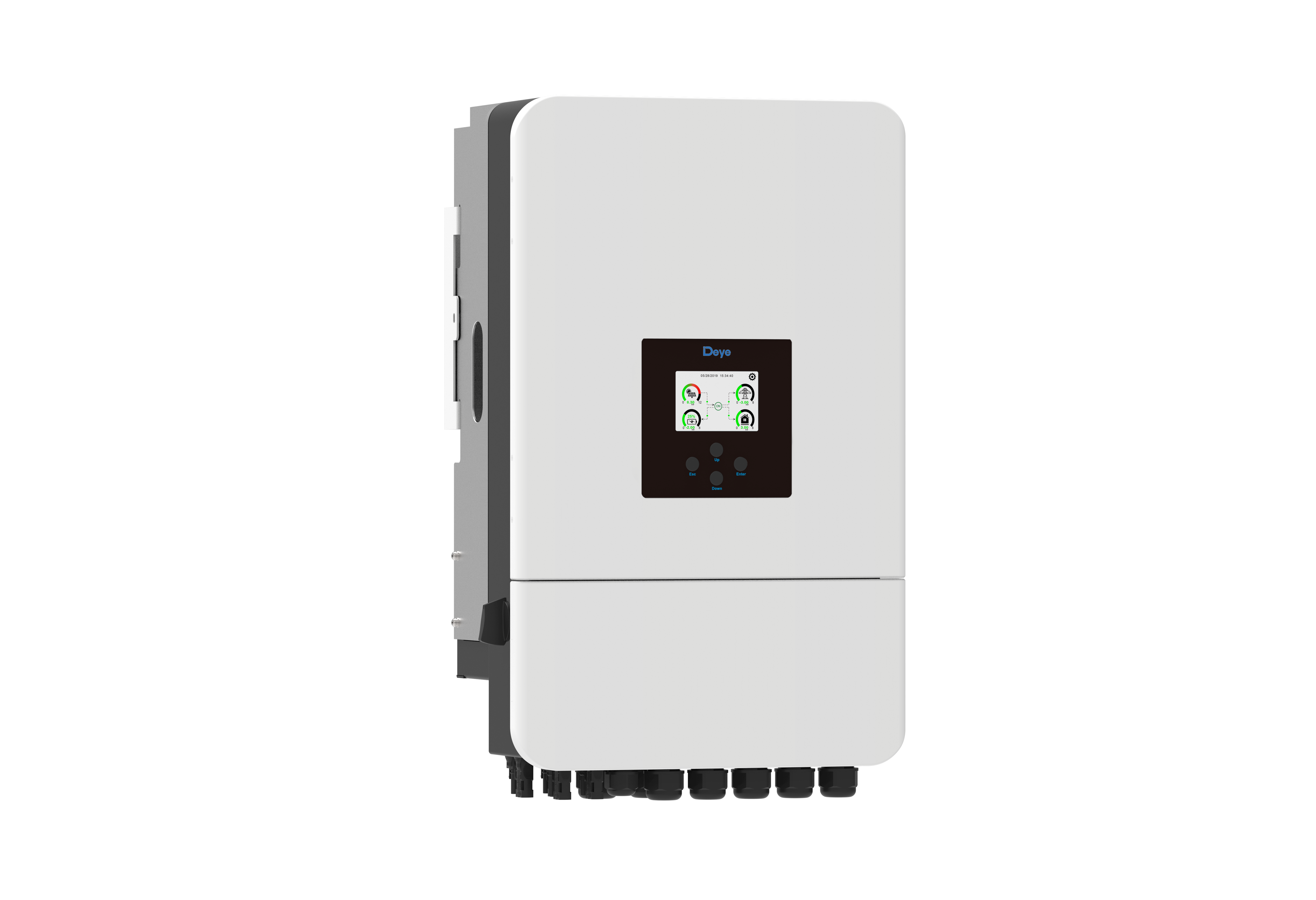

Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 – single-phase hybrid solar inverter with smart-meter kit
  1. 1 Deye SG05LP1-SM2 single-phase hybrid inverterx1
  2. 2 Wall mounting bracketx1
  3. 3 Fastening screws / mounting accessoriesx1 set
  4. 4 Battery temperature sensorx1
  5. 5 User manualx1
  6. 6 Smart meter / CT accessoriesOptional
  7. 7 DataloggerOptional

Frequently Asked Questions

Deye SUN-7/7.6/8/10K-SG05LP1-EU-SM2 combines 7-10 kW single-phase hybrid output, 2 MPPT, 40-60 V low-voltage battery support, and on-grid/off-grid operation for residential solar storage projects.

Battery compatibility covers lead-acid and lithium-ion options across a 40-60 V voltage range. Lithium BMS self-adaption helps simplify integration, and max charging/discharging current reaches 175 / 190 / 190 / 210 A depending on selected model.

The SG05LP1-SM2 platform uses 2 MPPT trackers. String configuration is 2/2+2 depending on selected output power, so installers can match PV strings to the chosen output power.

Yes. AC coupling can help retrofit compatible existing solar systems when the design, wiring, and commissioning are handled correctly.

Yes. Up to 16 inverters can operate in parallel for larger on-grid or off-grid systems, with multiple batteries in parallel when the full system is designed correctly.

Yes. Diesel generator energy storage support gives backup-focused installations another source of resilience during extended outages or weak-grid conditions.

IP65 ingress protection and intelligent air cooling support outdoor installation. Final placement, wiring, and protection must still follow the official manual and local electrical requirements.

Native interfaces include RS485, RS232, CAN. With the optional Deye Smart Transmitter SUN-SMART-TX01, compatible CT and wireless energy-management accessories can also communicate via LoRa. Battery communication depends on the selected battery and system design.
