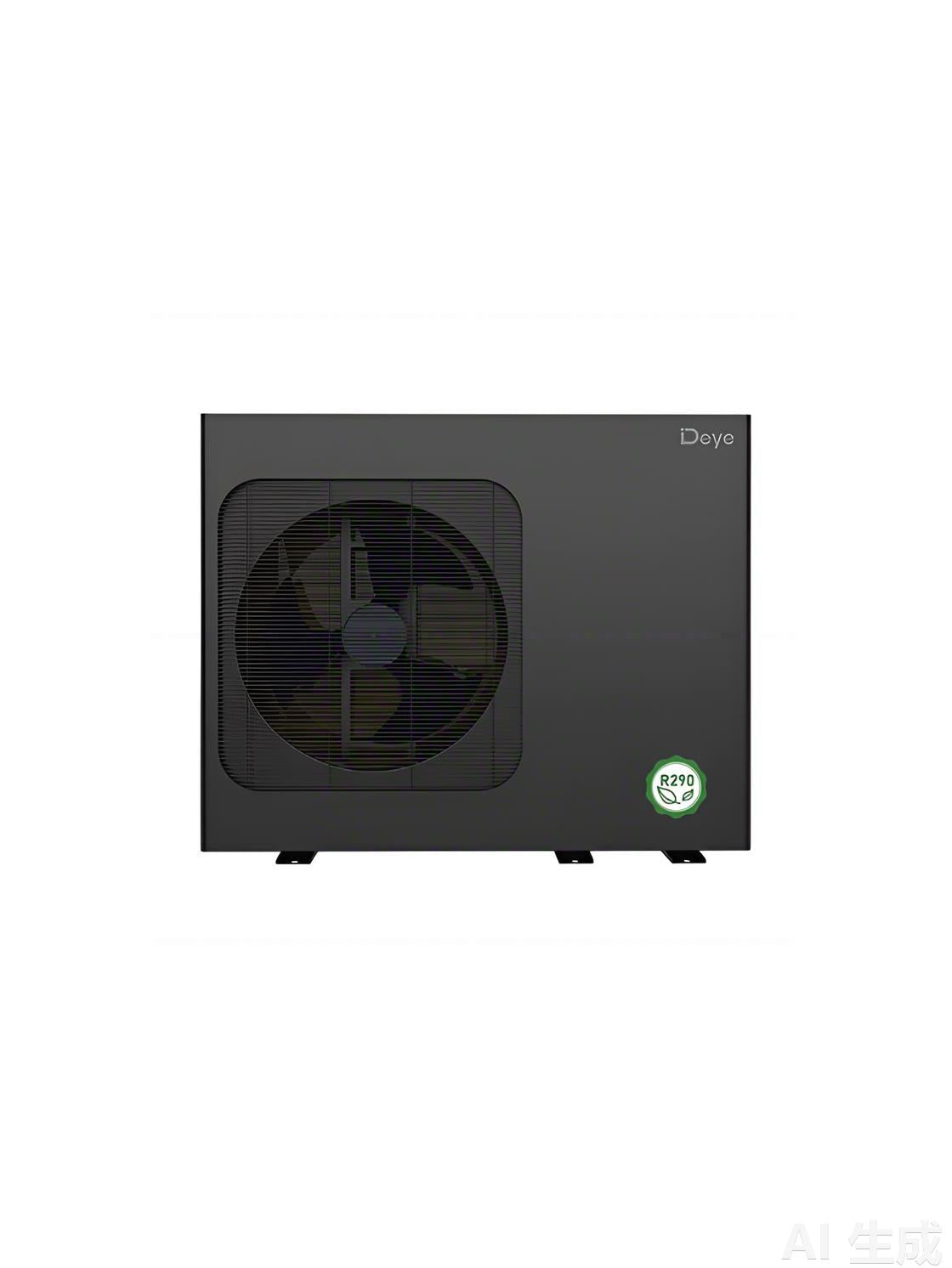

Deye Solar R290 Air to Water Heat Pump | 10/12/16kW Hybrid ACDC

Price
Capacity
Availability Out Of Stock
14 Days Return Policy
VAT included
Unit 3 Years, Compressor 5 Years

⚠ Important Notice:

Installation is not included in the purchase price. This system must be installed by a certified professional to ensure safety, compliance, and optimal performance. Deyestore will not be held responsible for any damages, malfunctions, or warranty claims caused by incorrect, unauthorized, or non-compliant installation. For full details, please refer to the Installation Notice.

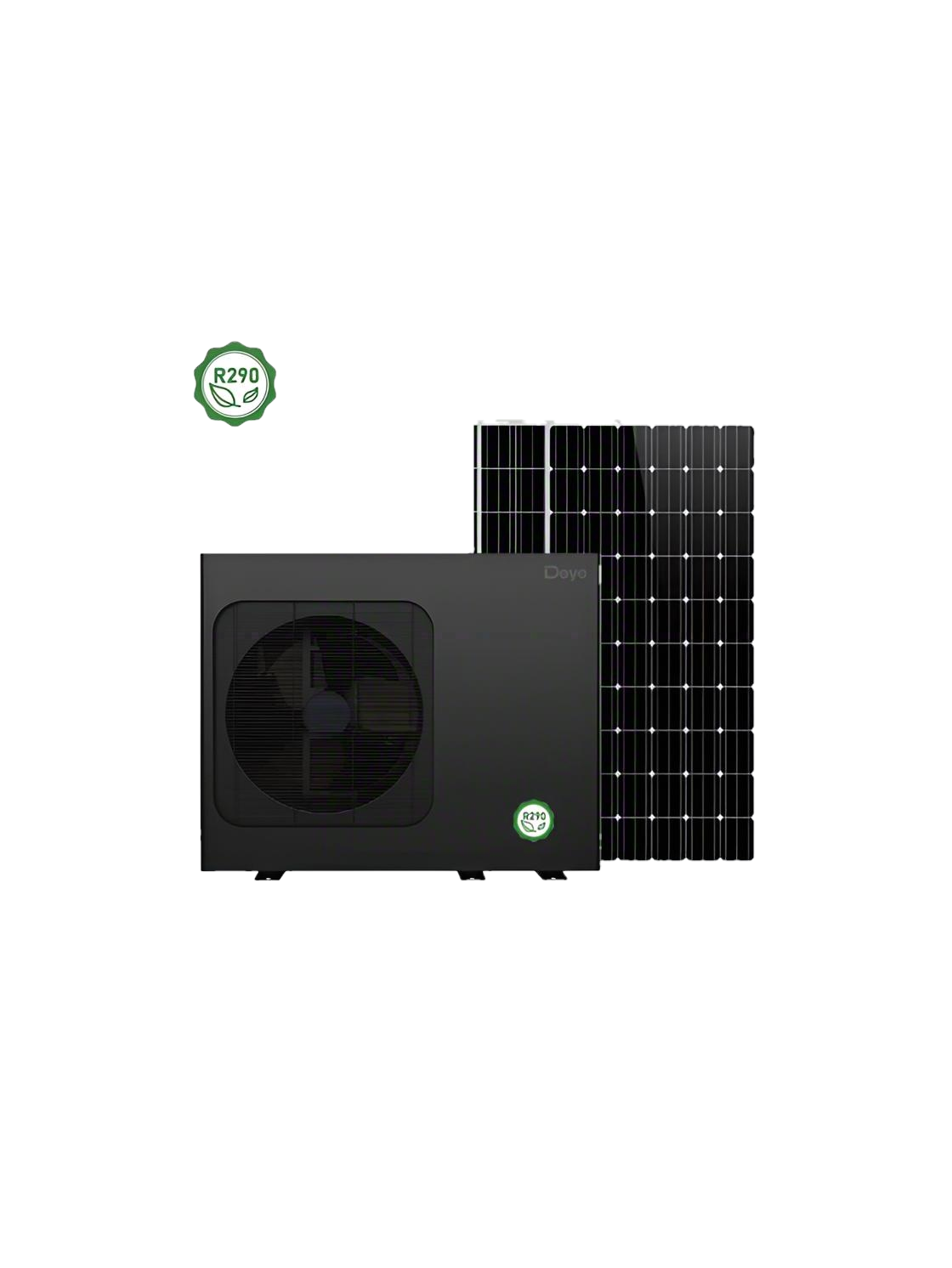

Solar-powered comfort for the whole home. The Deye Solar R290 Air to Water Heat Pump uses Hybrid ACDC technology to combine direct PV power and grid AC backup for heating, cooling, and domestic hot water.

Use solar when you have it, use AC power when you do not. Connect compatible PV panels to the built-in MPPT input to support daytime comfort loads, or run it like a conventional electric heat pump from AC grid power when PV is not installed, not available, or not producing enough energy.

Choose the right size and power supply for the home. Select 10kW single-phase, 12kW single-phase, 12kW three-phase, or 16kW three-phase models to match the property, hot-water demand, electrical supply, and available solar capacity.

Smarter comfort inside the Deye home energy ecosystem. R290 refrigerant, full DC inverter operation, Wi-Fi control, Deye Cloud energy management, and all-season heating/cooling support make this a strong upgrade for homes moving toward lower running costs and lower carbon heating.

10 / 12 / 16 kW | 1Ph & 3Ph Hybrid ACDC Heat Pump

Deye Solar R290 Air to Water Heat Pump | 10/12/16kW Hybrid ACDC

$5,816.00

Key Features

Works beautifully with Deye solar and storage

Build the heat pump into a wider Deye home energy ecosystem. Pair it with compatible Deye solar inverters, battery storage, smart controls, and Deye Cloud monitoring so daytime PV can support comfort loads, stored energy can help cover evening demand, and the whole home feels easier to manage from one connected platform.

PVSolar Energy
ESSStorage Ready
CloudSmart Control

Solar when available, AC when needed

Let compatible PV panels support heating, cooling, and hot water during sunny hours, while AC grid power keeps the heat pump ready for evenings, cloudy weather, or homes that have not added solar yet.

PVDirect Input
ACGrid Backup
MPPTBuilt In

Heating, cooling, and hot water in one system

One outdoor monoblock can support space heating, summer cooling, and domestic hot water. Plan it with underfloor heating, radiators, fan coils, and DHW tanks for a cleaner boiler-replacement or new-build comfort system without stacking separate appliances.

4-in-1Floor/Heat / Cool / DHW
R290Low GWP
Wi-FiSmart Control

Choose single-phase or three-phase power

Select 10kW or 12kW single-phase models for many residential installations, or step up to 12kW / 16kW three-phase options for homes and projects with higher demand or three-phase electrical supply.

10/12/16kWCapacity
1Ph/3PhPower Supply
R290Refrigerant

Comfort-ready for European homes

From warm floors in winter to fan-coil cooling in summer, the system is designed around everyday family routines. Add reliable hot water for showers and cleaning, and the home feels simpler to run all year.

FloorHeating
Fan CoilCooling
DHWHot Water

Comparison Table

FeatureCURRENT MODEL
10 kW Single Phase
DAWG1-ACDC-10R3EP
12 kW Single Phase
DAWG1-ACDC-12R3EP
12 kW Three Phase
DAWG1-ACDC2-12R3EP
16 kW Three Phase
DAWG1-ACDC2-16R3EP
Capacity10 kW 12 kW 12 kW 16 kW
Model CodeDAWG1-ACDC-10R3EP DAWG1-ACDC-12R3EP DAWG1-ACDC2-12R3EP DAWG1-ACDC2-16R3EP
Power SupplyAC 220-240V / 1Ph / 50/60Hz AC 220-240V / 1Ph / 50/60Hz AC 380-415V / 3Ph / 50/60Hz AC 380-415V / 3Ph / 50/60Hz
Cooling A35/W1810.0 kW / EER 4.75 12.0 kW / EER 4.50 12.0 kW / EER 4.50 16.0 kW / EER 3.90
Cooling A35/W78.9 kW / EER 3.25 11.5 kW / EER 3.05 11.5 kW / EER 3.05 14.0 kW / EER 2.75
Heating A7/W3510.0 kW / COP 4.70 12.0 kW / COP 4.80 12.0 kW / COP 4.80 15.0 kW / COP 4.40
Heating A7/W4510.0 kW / COP 3.65 12.0 kW / COP 3.70 12.0 kW / COP 3.70 15.0 kW / COP 3.35
Heating A7/W559.5 kW / COP 3.05 12.0 kW / COP 3.10 12.0 kW / COP 3.10 15.0 kW / COP 2.85
Energy Class LWT 35 CA+++ A+++ A+++ A+++
Energy Class LWT 55 CA+++ A+++ A+++ A++
Sound Power57 dB 57 dB 57 dB 58 dB
Dimensions1283 x 455 x 1036 mm 1283 x 455 x 1036 mm 1283 x 455 x 1036 mm 1283 x 455 x 1036 mm
Net / Gross Weight150 kg / 174 kg 167 kg / 191 kg 186 kg / 210 kg 186 kg / 210 kg
Max Power Input3.4 kW 4.8 kW 4.8 kW 5.9 kW
Back-up Heater3 kW 3 kW 9 kW 9 kW
Refrigerant Charge1.1 kg 1.43 kg 1.43 kg 1.43 kg
Operating AmbientCooling -5 to 48 C; Heating -25 to 35 C; DHW -25 to 43 C Cooling -5 to 48 C; Heating -25 to 35 C; DHW -25 to 43 C Cooling -5 to 48 C; Heating -25 to 35 C; DHW -25 to 43 C Cooling -5 to 48 C; Heating -25 to 35 C; DHW -25 to 43 C
Setting Water Temp.Cooling 10 to 30 C; Heating 25 to 80 C; DHW 25 to 75 C Cooling 10 to 30 C; Heating 25 to 80 C; DHW 25 to 75 C Cooling 10 to 30 C; Heating 25 to 80 C; DHW 25 to 75 C Cooling 10 to 30 C; Heating 25 to 80 C; DHW 25 to 75 C
Flow Switch0.36 m3/h 0.6 m3/h 0.6 m3/h 0.6 m3/h

Technical Specifications

Available model options for the R290 Hybrid ACDC air-to-water heat pump range on this page.
Product Type
Solar R290 Air to Water Heat Pump Hybrid ACDC
Available Models
10kW single-phase / 12kW single-phase / 12kW three-phase / 16kW three-phase
Model Codes
DAWG1-ACDC-10R3EP / DAWG1-ACDC-12R3EP / DAWG1-ACDC2-12R3EP / DAWG1-ACDC2-16R3EP
Power Supply Options
AC 220-240V 1Ph or AC 380-415V 3Ph, depending on selected model
Applications
Space heating / Comfort cooling / Domestic hot water
Refrigerant
R290 / GWP 3
Control
Wi-Fi control
Energy Management
Deye Cloud Services App with energy monitoring and intelligent scheduling
Values shown in model order: 10kW 1Ph / 12kW 1Ph / 12kW 3Ph / 16kW 3Ph.
Cooling A35/W18
10.0 / 12.0 / 12.0 / 16.0 kW
Cooling A35/W7
8.9 / 11.5 / 11.5 / 14.0 kW
Rated Input A35/W18
2.11 / 2.67 / 2.67 / 4.10 kW
Rated Input A35/W7
2.74 / 3.77 / 3.77 / 5.09 kW
Values shown in model order: 10kW 1Ph / 12kW 1Ph / 12kW 3Ph / 16kW 3Ph.
Heating A7/W35
10.0 / 12.0 / 12.0 / 15.0 kW
Heating A7/W45
10.0 / 12.0 / 12.0 / 15.0 kW
Heating A7/W55
9.5 / 12.0 / 12.0 / 15.0 kW
COP A7/W35
4.70 / 4.80 / 4.80 / 4.40
COP A7/W45
3.65 / 3.70 / 3.70 / 3.35
COP A7/W55
3.05 / 3.10 / 3.10 / 2.85
Shared operating and installation data for the listed model options.
Seasonal Class LWT 35 C
A+++ / A+++ / A+++ / A+++
Seasonal Class LWT 55 C
A+++ / A+++ / A+++ / A++
Sound Power Level
57 / 57 / 57 / 58 dB
Net Dimensions
1283 x 455 x 1036 mm
Packing Dimensions
1360 x 545 x 1222 mm
Net Weight
150 / 167 / 186 / 186 kg
Gross Weight
174 / 191 / 210 / 210 kg
Max Power Input
3.4 / 4.8 / 4.8 / 5.9 kW
Back-up Heater Capacity
3 / 3 / 9 / 9 kW
General operating ranges and hydraulic data for system planning.
Operating Ambient Temperature
Cooling -5 to 48 C; Heating -25 to 35 C; DHW -25 to 43 C
Setting Water Temperature
Cooling 10 to 30 C; Heating 25 to 80 C; DHW 25 to 75 C
Piping Connections
G1-1/4 inch
Safety Valve Set Pressure
0.3 MPa
Flow Switch
0.36 / 0.6 / 0.6 / 0.6 m3/h
Expansion Tank Volume
5 L
Refrigerant Charge
1.1 / 1.43 / 1.43 / 1.43 kg

DOWNLOADS & DOCUMENTS

Deye R290 Heat Pump All-in-One Solution DatasheetDatasheet

What's in the Box

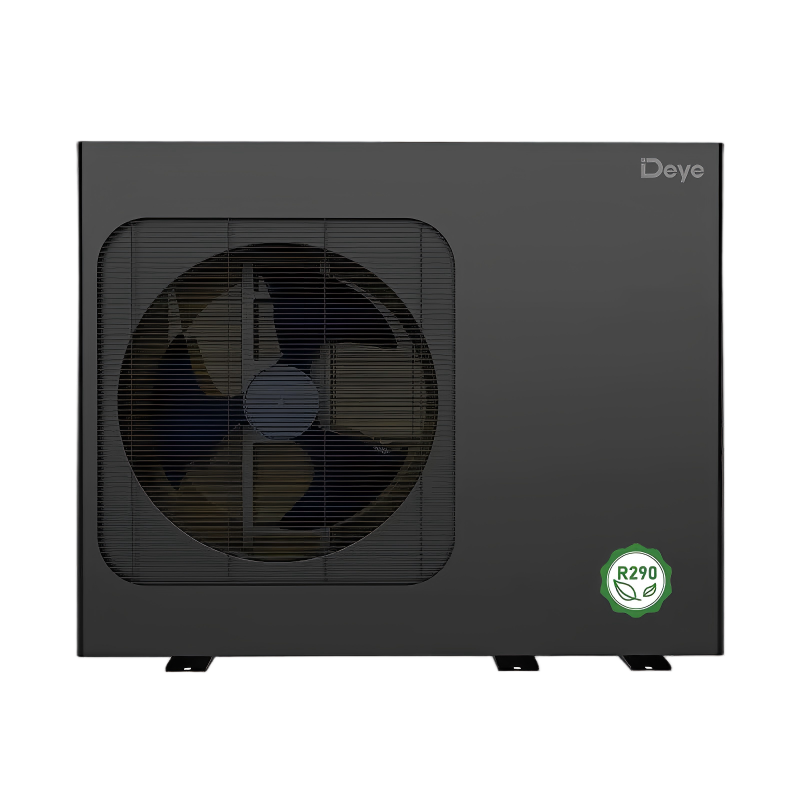

Deye R290 air-to-water heat pump for residential heating, cooling and domestic hot water
  1. 1 Selected Air-to-Water Heat Pump outdoor unit×1
  2. 2 Wired controller×1
  3. 3 Installation & user manual×1

Installation Notice

Terms of Pricing & Professional Installation Support

Please Note: The prices displayed on our platform are for the equipment only and strictly do not include local installation services.

Our Service Commitment: At Deye, we stand firmly behind our technology. We provide comprehensive technical documentation, detailed installation manuals, and robust professional remote support to ensure every system can be integrated flawlessly into your home energy ecosystem.

Mandatory Professional Installation: To ensure your safety, maximize operational efficiency, and secure compliance with local regulations, such as green energy subsidy requirements, this advanced heat pump unit must be installed and commissioned exclusively by a certified and qualified HVAC / heat pump installation professional.

Warranty & Liability Boundary: Deye takes full responsibility for the factory quality and technical support of our products. However, please note that any equipment faults, performance drops, or damages resulting from non-standard, faulty, or unauthorized installation by uncertified individuals shall be excluded from our warranty coverage, and Deye cannot bear liability for such installation-related issues.

By ensuring a licensed professional handles your installation, you protect your system's peak performance, and our team will be fully available to provide your installer with any necessary professional assistance.

Frequently Asked Questions

This page includes four R290 Hybrid ACDC air-to-water heat pump options: 10kW single-phase, 12kW single-phase, 12kW three-phase, and 16kW three-phase.

Yes. Compatible PV panels can support the heat pump through the built-in MPPT input, but the system can also run from AC grid power when solar panels are not installed, not available, or not producing enough energy.

The Deye Cloud Services App can give homeowners a clearer view of heating performance and the wider home energy system. With compatible equipment, intelligent scheduling helps coordinate PV, battery storage, EV charging, home loads, and heat pump operation for smarter daily energy use.

It is designed for space heating, comfort cooling, and domestic hot water. Typical projects may include underfloor heating, radiators, fan coils, buffer tanks, and DHW tanks, depending on the system design.

No. This R290 Air to Water Heat Pump is intended for household comfort and hot-water systems. For swimming pool or spa heating, use the separate Deye Solar R32 Swimming Pool Heat Pump product.

The right size depends on the home's heat loss, insulation, hot-water demand, emitter type, local climate, electrical supply, and available PV capacity. Choose single-phase or three-phase according to the site's electrical system, and confirm final sizing with a qualified installer.

It can be planned as part of a boiler replacement or low-carbon heating upgrade, but the final design depends on the building, existing heating emitters, hot-water tank, and local installation rules. An installer should confirm whether retrofit work is needed.

Yes. Hybrid ACDC operation means the system can use AC grid power when PV power is not available or not sufficient, helping maintain comfort through cloudy periods, evenings, and higher-demand conditions.

Please confirm capacity, PV string design, AC supply, hydraulic layout, water tank requirements, installation location, and local compliance with a qualified installer before checkout.

Installation should be completed by a qualified heat-pump installer who can confirm hydraulic design, electrical connection, PV string configuration, drainage, outdoor placement, and local compliance before commissioning.
