Deye Energy Storage Solution | BOS-G Pro (Pack5.1 / PDU-2)

Price
$3,019.51
$3,019.51
Model
Availability In Stock
IP65 enclosure
10 Years Warranty
10.2 kWh LiFePO4 residential battery

10.2 kWh low-voltage LiFePO4 battery for EU and AU residential ESS. Deye RW-F10.2 gives home energy systems a 51.2 V, 200 Ah battery platform with 10.2 kWh rated energy and 9.2 kWh usable energy at 90% DoD.

Strong battery-side power for solar storage and backup planning. RW-F10.2 supports a 43.2 V - 57.6 V operating range, 6 kW rated DC power, 12 kW max DC power, and 300 A peak discharge for 2 minutes at 25°C.

Protected installation for residential energy spaces. The IP65 enclosure, wall-mounted or floor-mounted installation, 600 x 760 x 200 mm dimensions, and approximately 104 kg weight give installers a clear planning profile.

Expandable low-voltage storage with Deye communication. RW-F10.2 supports up to 32 battery packs in parallel for systems up to 326 kWh, with CAN2.0 and RS485 communication plus a 125 A 4P, 60 Vdc built-in circuit breaker.

Long-cycle performance for daily solar self-use. The battery is specified with at least 6,000 cycles, 32 MWh energy throughput at 70% EOL, a 10-year warranty period, and certifications including UN38.3, IEC62619, CE, CEC 02-11, VDE2510-50, and CEC.

CAN2.0, RS485

Deye Energy Storage Solution | BOS-G Pro (Pack5.1 / PDU-2)

$3,019.51

Technical Specifications

5.12 kWh battery module data from the official Deye BOS-G Pro documentation.
Battery Type
LiFePO4 (LFP)
Nominal Voltage (Vdc)
51.2
Rated Capacity (Ah)
100
Rated Energy (kWh)
5.12
Nominal Charge/Discharge Current (A)
100
Peak Discharge Current (A)
120
Charge Temperature (°C)
0 ~ 55
Discharge Temperature (°C)
-20 ~ 55
Storage Temperature (°C)
0 ~ 35
Ingress Protection
IP20
Dimension (W×D×H, mm)
440×585×133
Weight Approximate
46 kg
High-voltage battery cluster control box data from the official Deye BOS-G Pro documentation.
Operating Voltage (Vdc)
200 ~ 1000
Nominal Charge/Discharge Current (A)
100
Max. Charge/Discharge Current (A)
120
DC Input Rating
12±2% V / 4.15A
Operating Temperature Range (°C)
-20 ~ 65
Ingress Protection
IP20
Dimension (W×D×H, mm)
440×570×150
Weight Approximate
19 kg
Stacked-system data from the official Deye BOS-G Pro documentation.
Cell Chemistry
LiFePO4
Module Energy (kWh)
5.12
Battery Module Qty In Series
5 (min) ~ 16
System Energy Range (kWh)
25.6 ~ 81.92
Recommend Depth of Discharge
90%
Cycle Life
6000 (25±2°C, 0.5C/0.5C, EOL70%)
Communication Port
CAN2.0 / RS485
Installation Location
Rack Mounting (3U-LRack / 3U-HRack)
Warranty
10 years
Certification
UN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE

DOWNLOADS & DOCUMENTS

BOS-G User Manual (EU/EN)User Manual BOS-G Datasheet (AU, HV 3U Battery)Datasheet

What's in the Box

  1. 1 Battery module (BOS-G-Pack5.1) — Battery Module variantx1
  2. 2 Communication cable (160 mm) — with modulex1
  3. 3 Power cable (200 mm) — with modulex1
  4. 4 Cluster control box (BOS-G-PDU-2) — Control Box variantx1
  5. 5 120 ohm terminal resistance — with control boxx1
  6. 6 Communication cable (250 mm) — with control boxx1
  7. 7 Power cable (140 mm) — with control boxx1
  8. 8 EPCable2.0 / ENCable2.0 (2 m each) — with control boxx1
  9. 9 140 mm ground wire — with control boxx1

Frequently Asked Questions

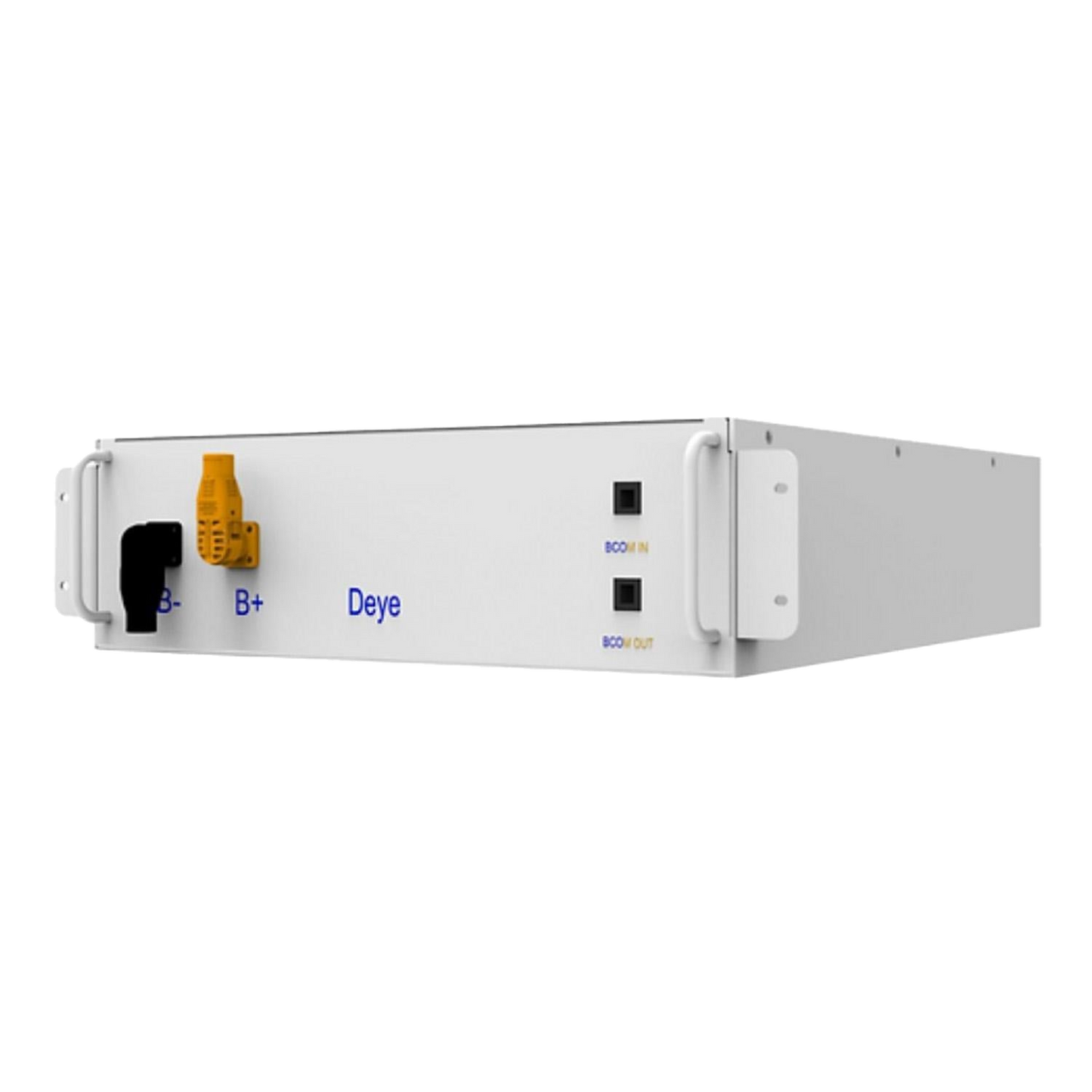

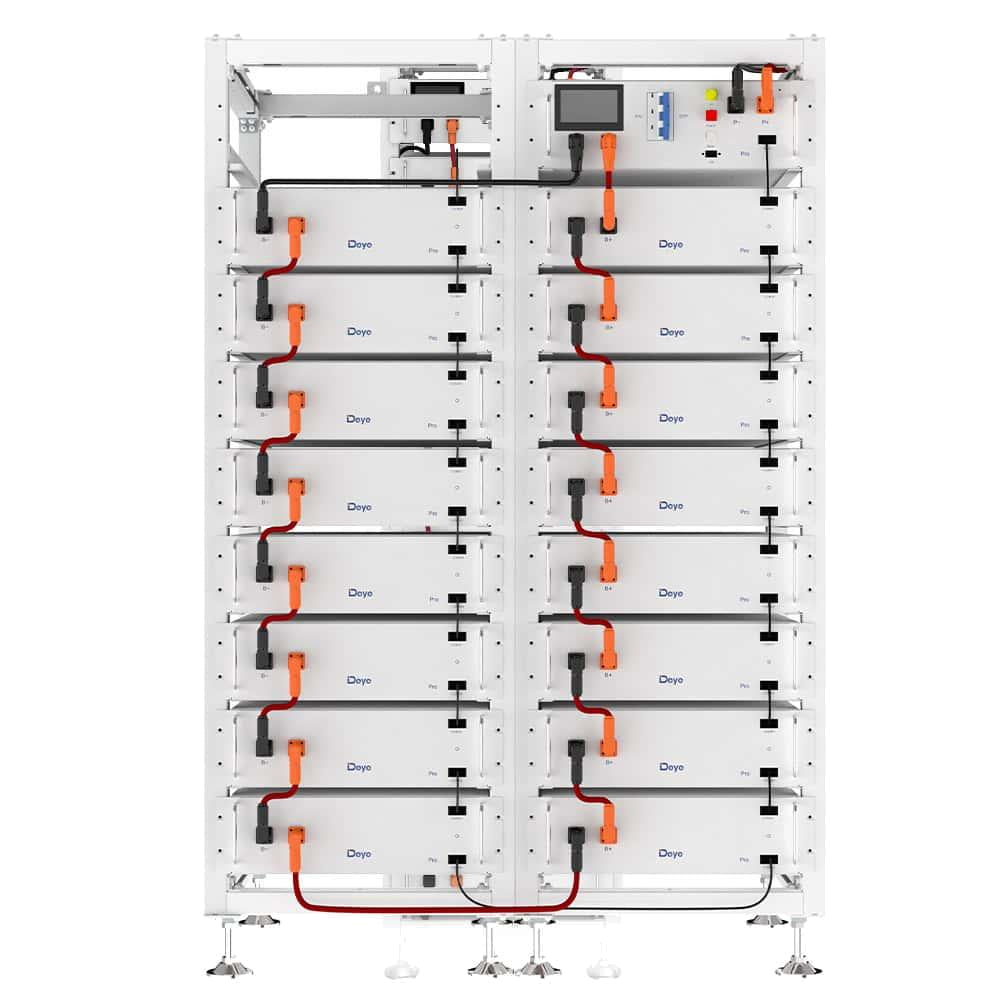

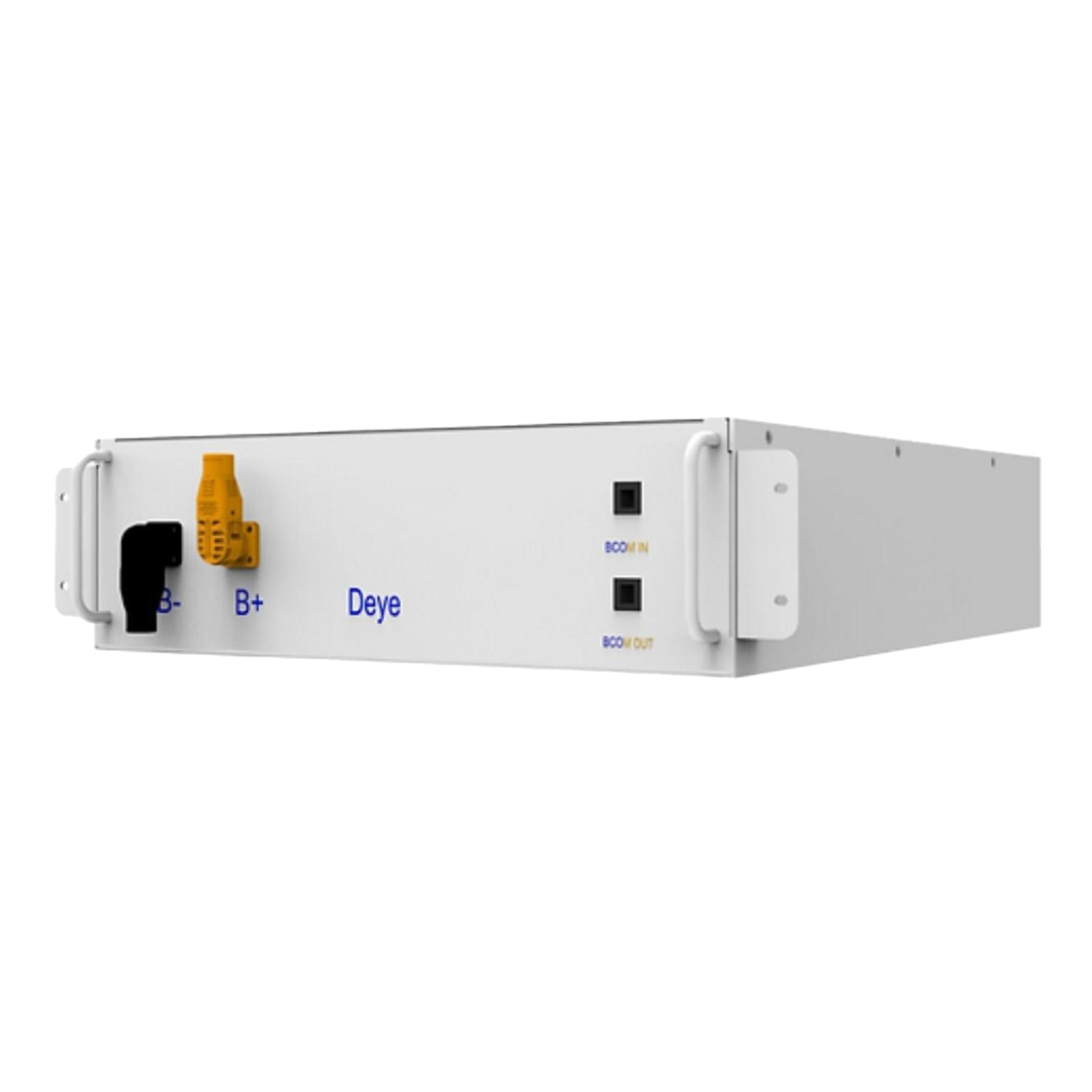

BOS-G Pro is a high-voltage stacked LiFePO4 battery system. It is built from 5.12 kWh battery modules (BOS-G-Pack5.1) managed by a cluster control box (BOS-G-PDU-2), installed in a 3U rack. This listing covers the module and the control box.

LiFePO4, 51.2 V nominal, 100 Ah, 5.12 kWh. Nominal charge/discharge current 100 A, peak discharge 120 A. IP20, 440×585×133 mm, 46 kg.

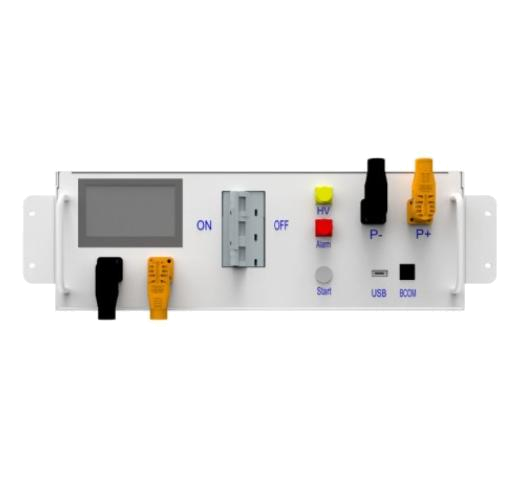

The PDU-2 is the high-voltage cluster control box. It operates over 200~1000 Vdc, at 100 A nominal / 120 A max charge-discharge, and manages up to 16 modules in series. IP20, 440×570×150 mm, 19 kg.

With 5–16 modules in series, system energy ranges from 25.6 kWh to 81.92 kWh.

Chemistry is LiFePO4; cycle life is 6000 (25±2°C, 0.5C/0.5C, to 70% EOL).

Communication: CAN2.0 / RS485. Installation is 19-inch rack-mounted in a 3U-LRack or 3U-HRack.

Certifications: UN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE.

Warranty: 10 years.
