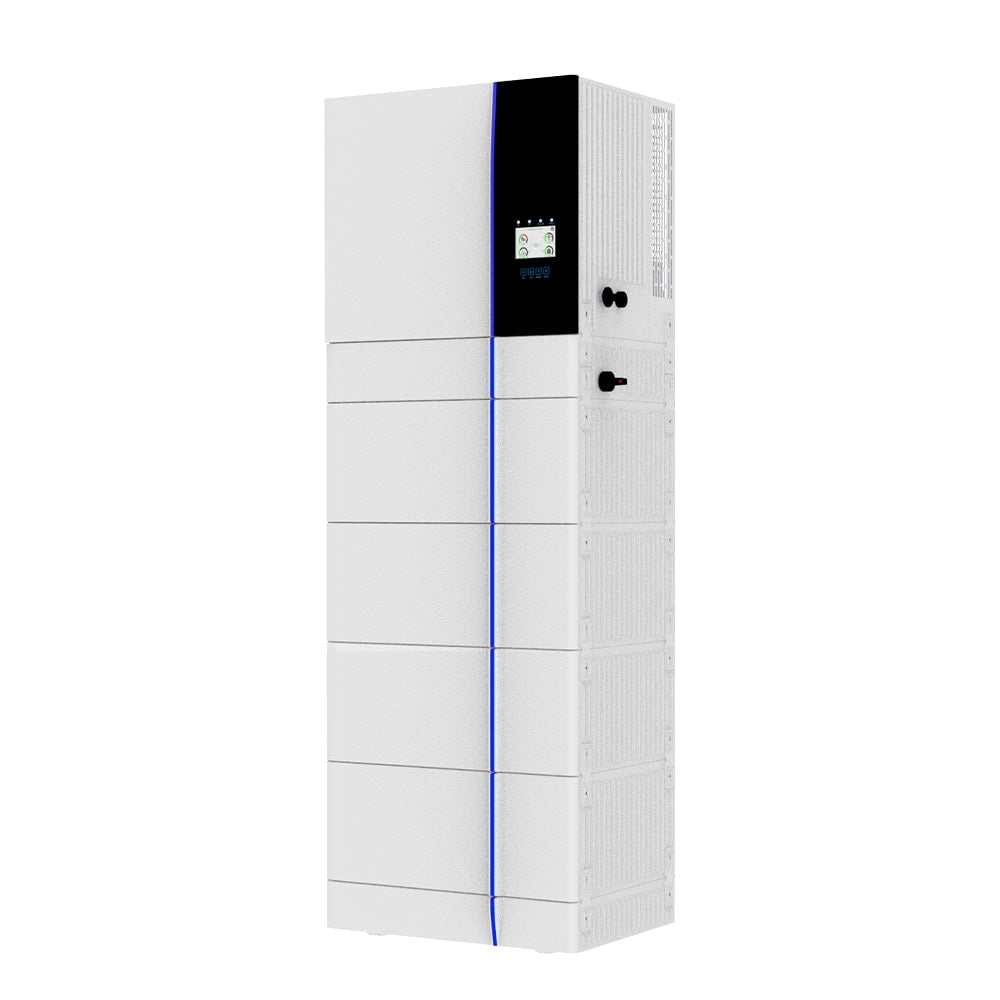

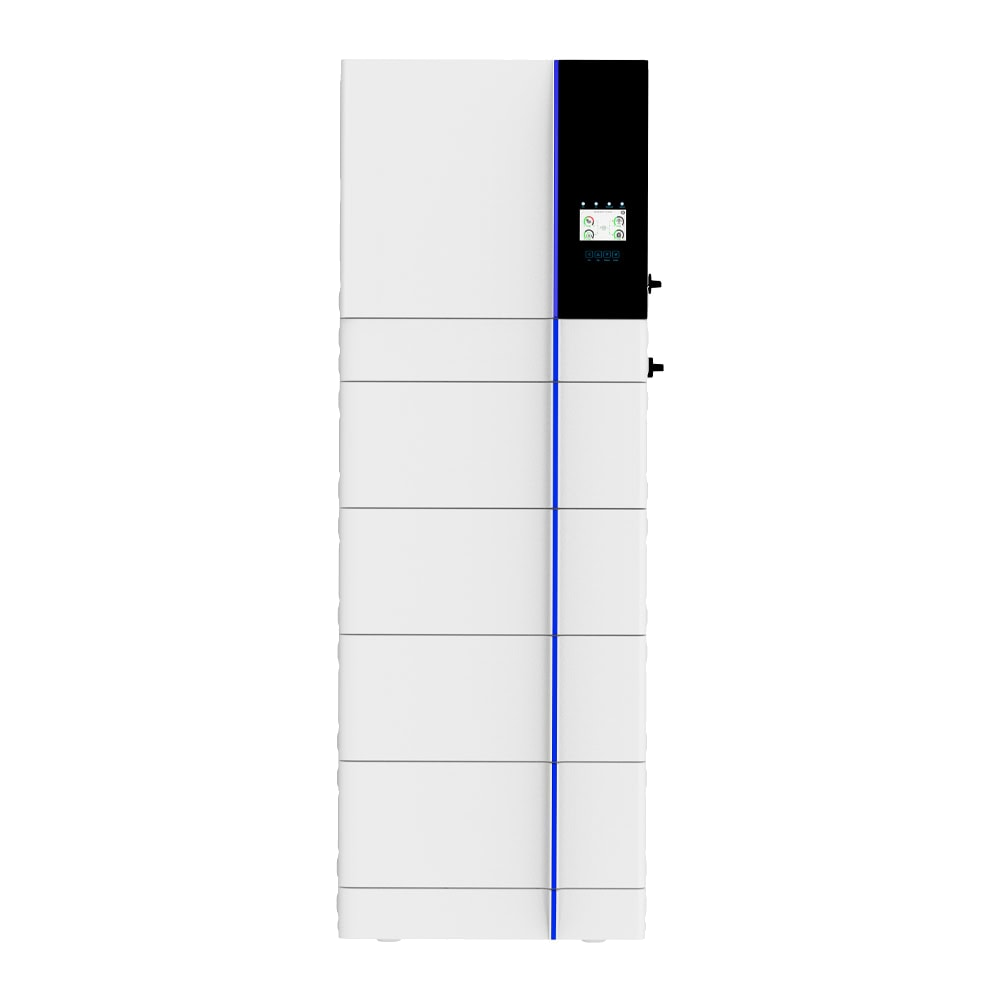

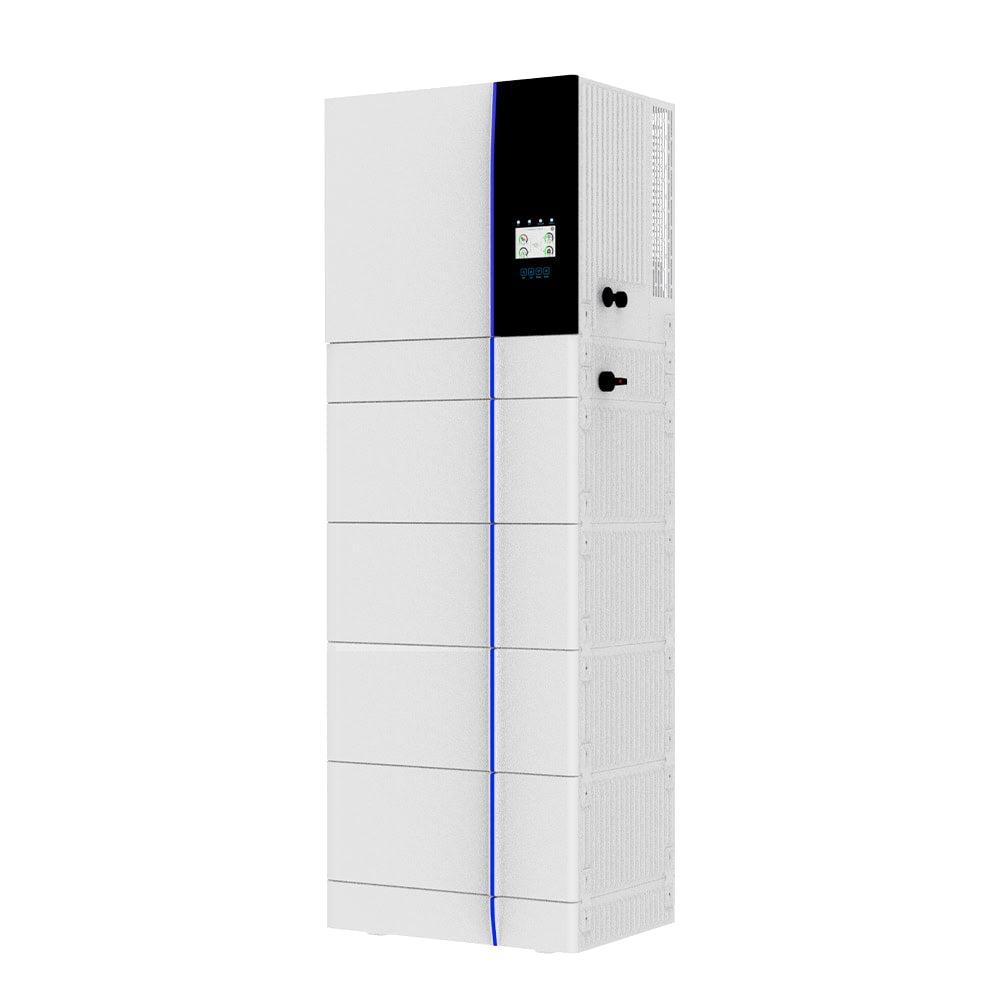

Deye Hybrid Inverter | GB-S 5/6/8/10/12/15/20K-AU (GB-SL Pro)

Price
$3,139.00
$3,139.00
Model
Availability In Stock
IP65 enclosure
10 Years Warranty
10.2 kWh LiFePO4 residential battery

10.2 kWh low-voltage LiFePO4 battery for EU and AU residential ESS. Deye RW-F10.2 gives home energy systems a 51.2 V, 200 Ah battery platform with 10.2 kWh rated energy and 9.2 kWh usable energy at 90% DoD.

Strong battery-side power for solar storage and backup planning. RW-F10.2 supports a 43.2 V - 57.6 V operating range, 6 kW rated DC power, 12 kW max DC power, and 300 A peak discharge for 2 minutes at 25°C.

Protected installation for residential energy spaces. The IP65 enclosure, wall-mounted or floor-mounted installation, 600 x 760 x 200 mm dimensions, and approximately 104 kg weight give installers a clear planning profile.

Expandable low-voltage storage with Deye communication. RW-F10.2 supports up to 32 battery packs in parallel for systems up to 326 kWh, with CAN2.0 and RS485 communication plus a 125 A 4P, 60 Vdc built-in circuit breaker.

Long-cycle performance for daily solar self-use. The battery is specified with at least 6,000 cycles, 32 MWh energy throughput at 70% EOL, a 10-year warranty period, and certifications including UN38.3, IEC62619, CE, CEC 02-11, VDE2510-50, and CEC.

CAN2.0, RS485

Deye Hybrid Inverter | GB-S 5/6/8/10/12/15/20K-AU (GB-SL Pro)

$3,139.00

Technical Specifications

Official model identity from the Deye GB-SL Pro AU brochure.
Models
GB-S 5K/6K/8K/10K/12K/15K/20K-AU
Product Type
Three-Phase Hybrid Inverter (GB-SL Pro all-in-one)
Grid Connection Form
3L+N+PE
Grid Regulation
AS/NZS 4777.2
Ingress Protection (IP) Rating
IP65
Warranty
10 Years
Inverter Enclosure (W×D×H, mm)
540 × 385 × 450
Inverter Weight
39.8 kg
Battery-side data from the official AU brochure.
Battery Type
Lithium-ion
Battery Voltage Range (V)
160 ~ 700
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Input
1
Solar input data from the official AU brochure (columns: 5K / 6K / 8K / 10K / 12K / 15K / 20K).
Max. PV access power (W)
10000 / 12000 / 16000 / 20000 / 24000 / 30000 / 40000
Max. PV Input Power (W)
7500 / 9000 / 12000 / 15000 / 18000 / 22500 / 30000
Max. PV Input Voltage (V)
1000
No. of MPP Trackers / Strings per MPP Tracker
2 / 1+1 (5–8K); 2 / 2+1 (10–12K); 2 / 2+2 (15–20K)
AC-side data from the official AU brochure (columns: 5K / 6K / 8K / 10K / 12K / 15K / 20K).
Rated AC Output Active Power (W)
5000 / 6000 / 8000 / 10000 / 12000 / 15000 / 20000
Rated AC Output Current (A)
7.3 / 8.7 / 11.6 / 14.5 / 17.4 / 21.8 / 29.0
Peak Power (off-grid)
1.5 times of rated power, 10 S
Rated Input/Output Voltage/Range (V)
230/400V 240/415V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5% In
Maximum Unbalanced Output
100% unbalanced output, each phase
Conversion efficiency from the official AU brochure.
Max. Efficiency
97.6%
Euro Efficiency
97%
MPPT Efficiency
99.9%
Interface and general data from the official AU brochure.
Display
LCD+LED
Communication Interface
RS232, RS485, CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN (optional)
Operating Temperature Range (°C)
-40 ~ 60, >45 Derating
Ingress Protection (IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC), OVC III(AC)
Type of Cooling
Natural Cooling / Intelligent Air Cooling
Grid Regulation
AS/NZS 4777.2
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

DOWNLOADS & DOCUMENTS

GB-SL Pro Series Brochure (AU)Brochure GB-SL Pro User ManualUser Manual

Frequently Asked Questions

GB-S is the three-phase hybrid inverter of Deye's GB-SL Pro all-in-one energy storage system, available in 5, 6, 8, 10, 12, 15 and 20 kW. The number in each SKU is the inverter's rated AC power. It pairs with the GB-L-Pro high-voltage battery to form a complete residential/light-commercial ESS.

It supports a high-voltage lithium-ion battery with a voltage range of 160 ~ 700 V, using self-adaption to the battery BMS. In the GB-SL Pro system it pairs with the Deye GB-L-Pro stacked battery.

Max. PV access power ranges from 10,000 W (5K) up to 40,000 W (20K), with Max. PV input power from 7,500 W to 30,000 W and a Max. PV input voltage of 1000 V across 2 MPP trackers.

Rated AC output active power matches the model: 5000 / 6000 / 8000 / 10000 / 12000 / 15000 / 20000 W, with rated AC current of 7.3 / 8.7 / 11.6 / 14.5 / 17.4 / 21.8 / 29.0 A respectively. Output is three-phase 230/400 V (240/415 V), 3L+N+PE.

Yes — 100% unbalanced output on each phase.

Max. Efficiency 97.6%, Euro Efficiency 97%, MPPT Efficiency 99.9%.

Display is LCD+LED. Communication interfaces: RS232, RS485, CAN. Monitoring: GPRS/WIFI/Bluetooth/4G/LAN (optional).

Grid Regulation: AS/NZS 4777.2. Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.

Ingress Protection is IP65, with an operating temperature range of -40 ~ 60°C (derating above 45°C) and natural / intelligent air cooling.

Warranty: 10 Years.
