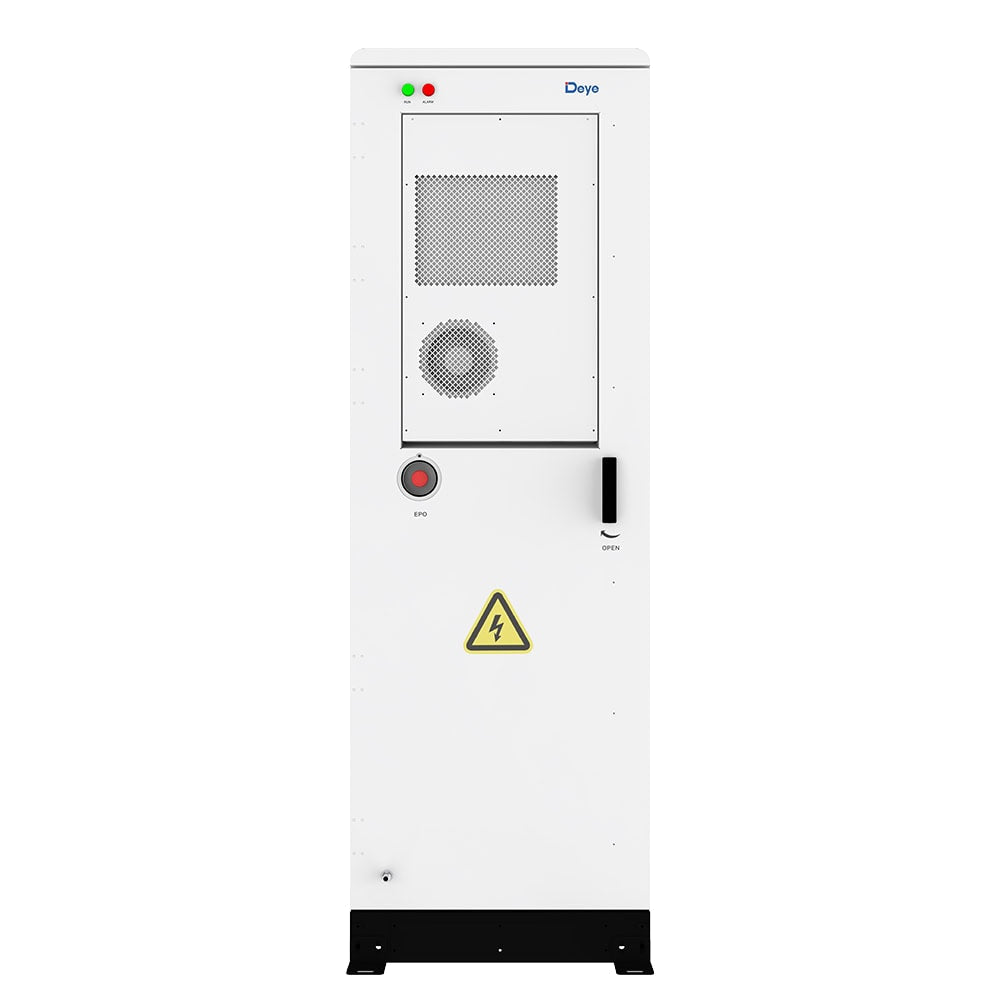

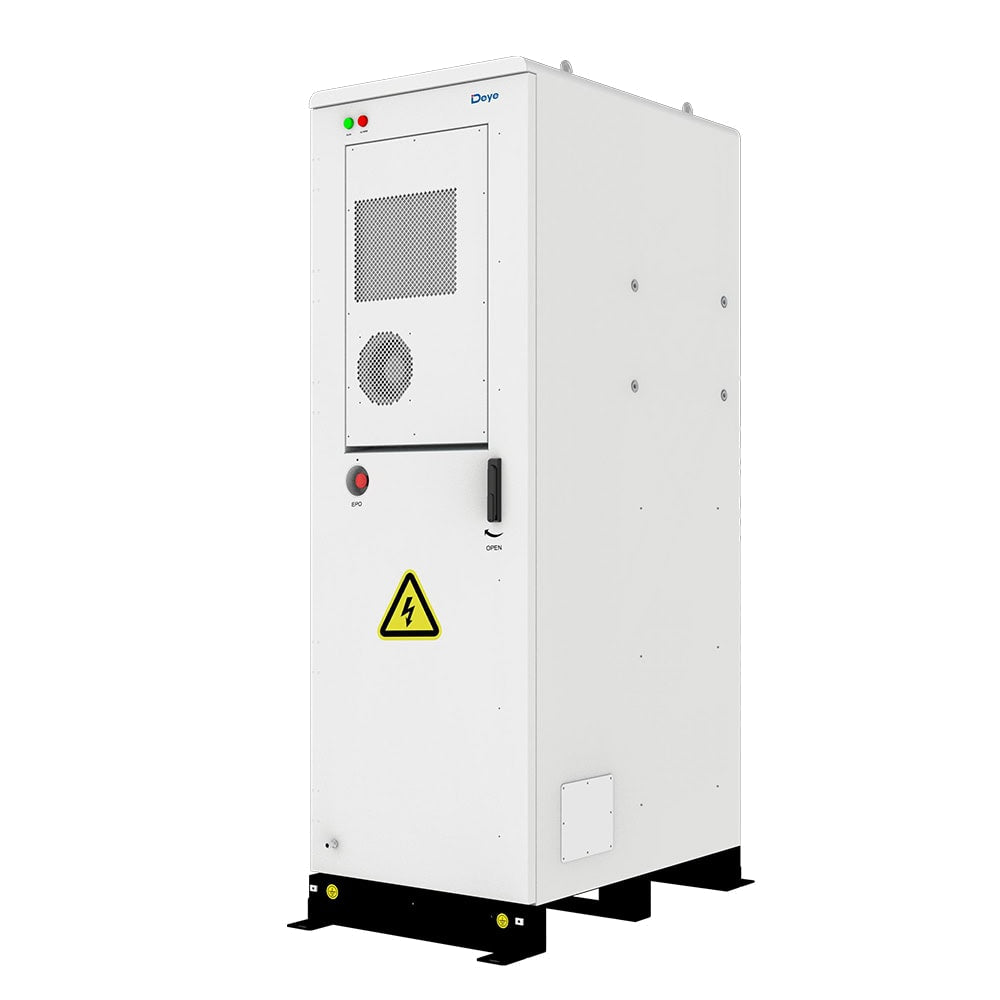

The GE-F60 is a small-scale commercial & industrial (C&I) outdoor battery cabinet using LiFePO4 chemistry. It contains 12 × 5.12 kWh modules in series for a 614.4 V system with 61.44 kWh of energy and 50 kW rated DC power.
System Energy and Usable Energy are both 61.44 kWh (at 100% Depth of Discharge). Rated DC Power is 50 kW.
Charge/Discharge Current: Recommend 100 A / Nominal 125 A.
Yes. Via DC parallel, up to 6 × F60 + a 50 kW inverter → 50 kW / 360 kWh. Via AC parallel, up to 10 groups → 500 kW / 3600 kWh.
Yes — the enclosure is rated IP55 for outdoor use, floor-mounted, with an operating temperature range of -30 ~ 60°C (derating above 45°C).
Communication ports are CAN2.0 / RS485. Status indicators: Yellow = battery high-voltage power on; Red = battery system alarm.
Cycle Life is 6000 (25±2°C, 0.5C/0.5C, to 70% EOL).
Certifications: UN38.3 / CB / CE / CEC / IEC 62040.
Dimensions (W×D×H): 783 × 1059 × 2235 mm; weight approximately 1070 kg. It is floor-mounted and requires appropriate lifting equipment for handling.
Installation, wiring, operation and maintenance must be carried out by professional electrical technicians per local regulations. The site should be dry and well-ventilated, away from toxic/flammable/explosive/corrosive materials and away from residential areas (noise), on a properly designed and constructed foundation.
Warranty: 10 years.
