More power and flexibility for single-phase home energy storage. The Deye SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU series gives homeowners a modern low-voltage hybrid platform for solar self-use, backup power, and smart battery control.
One platform, seven output choices. Select from 3.6 kW to 10 kW output to match the home, PV array, and battery bank, while keeping the same single-phase SG05LP1 architecture with 2 MPPT and 40-60 V battery support.
Designed for stronger battery performance. Up to 210 A charging/discharging current depending on selected model, lithium BMS self-adaption, and 6 programmable battery time periods help move more solar energy into the times when the household actually needs it.
Built for retrofit, backup, and expandable projects. AC coupling can help upgrade compatible existing solar systems, diesel generator energy storage support adds resilience, and up to 16 units can operate in parallel for larger on-grid or off-grid systems.
Clean installation, confident daily operation. IP65 protection, colorful touch LCD, intelligent air cooling, WIFI / RS485 / CAN communication, and Type II surge protection on DC and AC sides make SG05LP1 a strong fit for modern residential ESS installations.

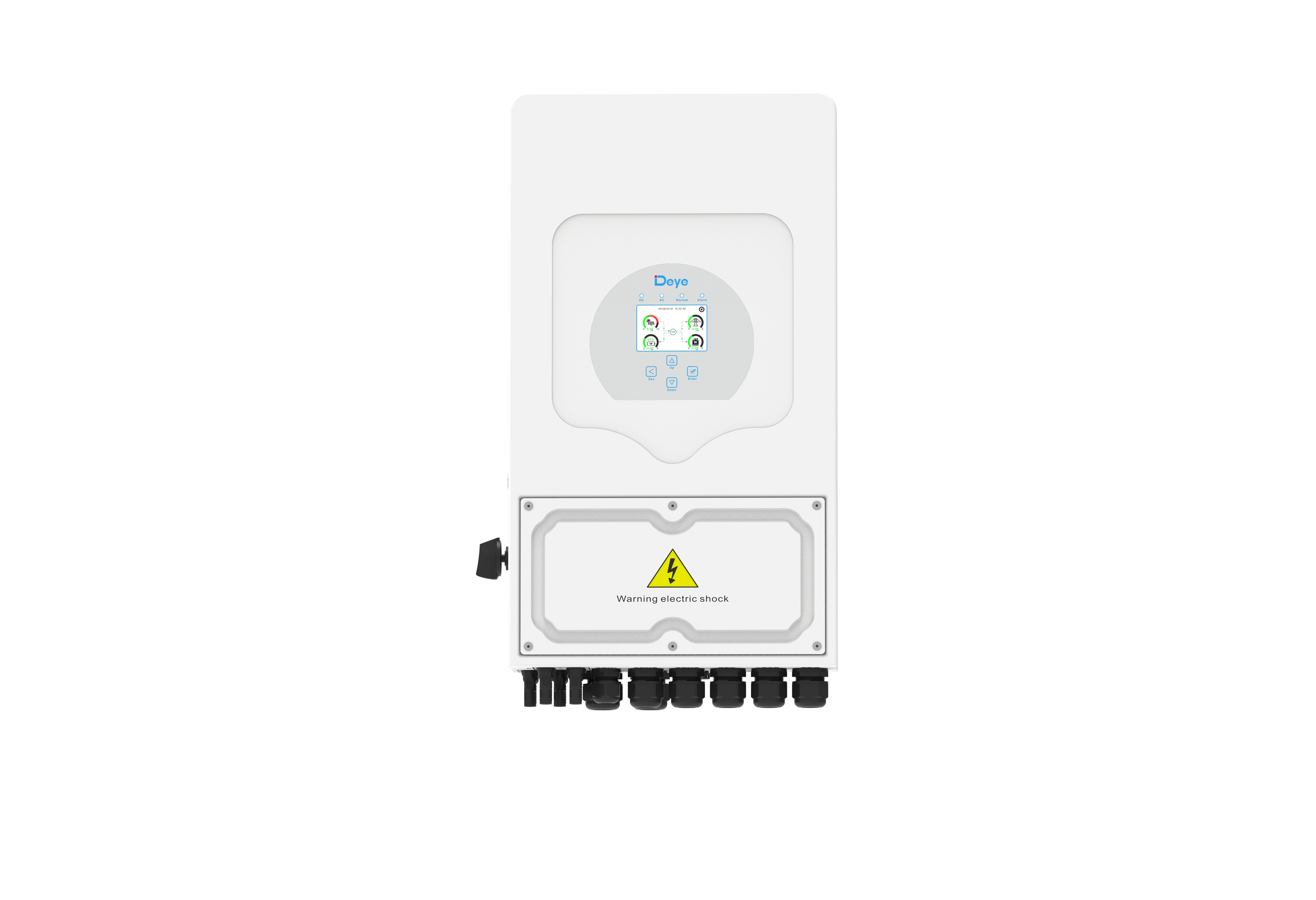

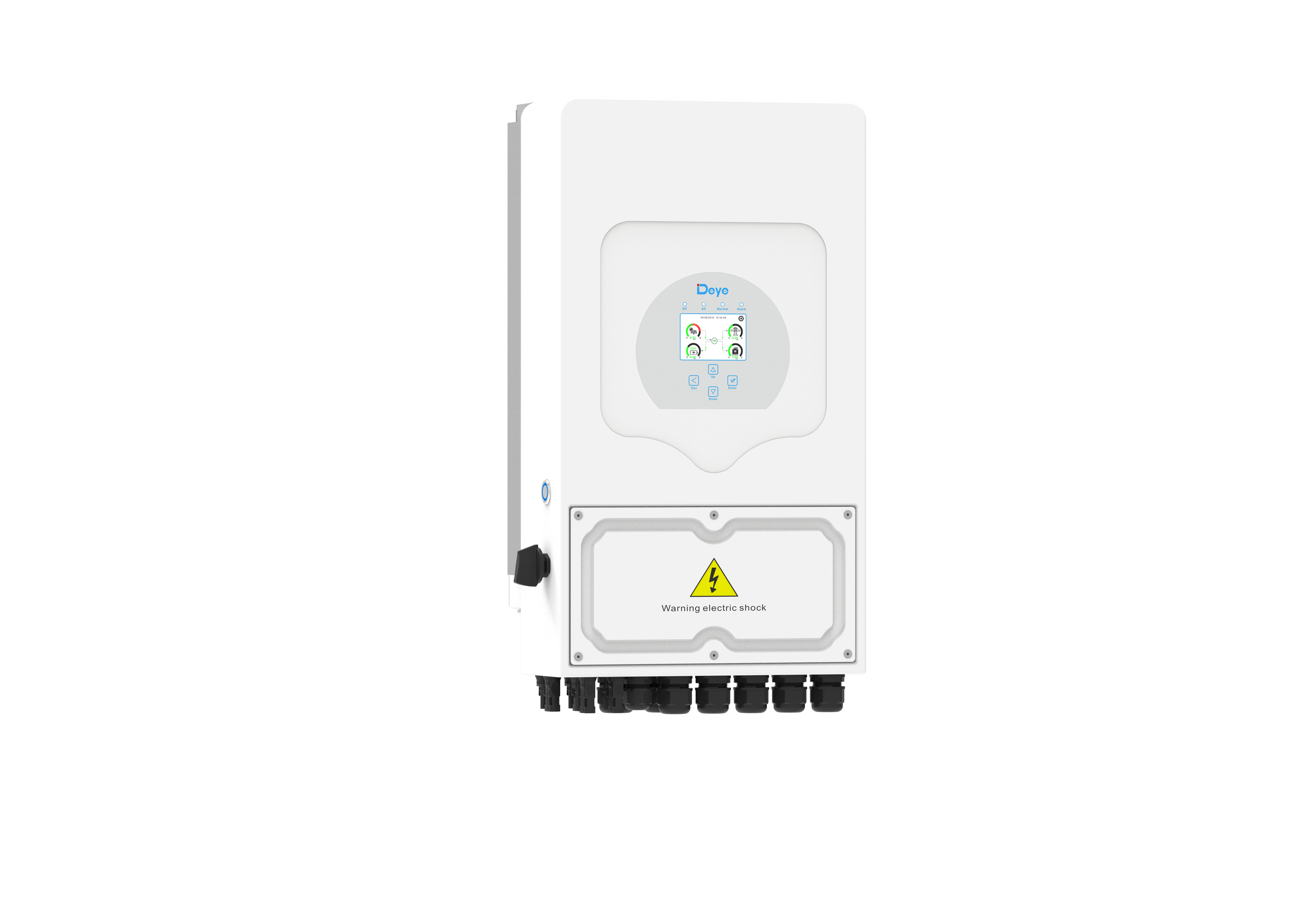

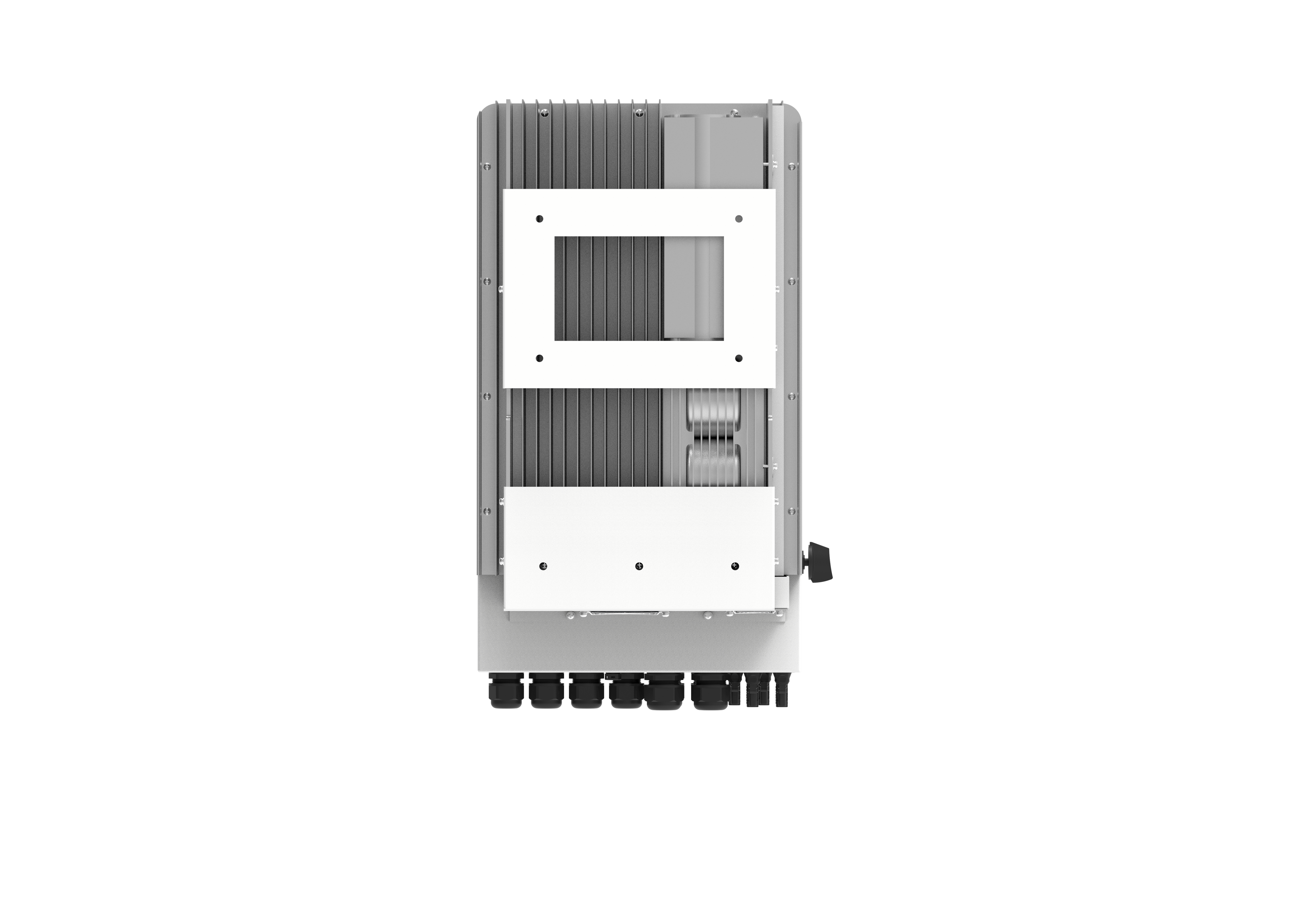

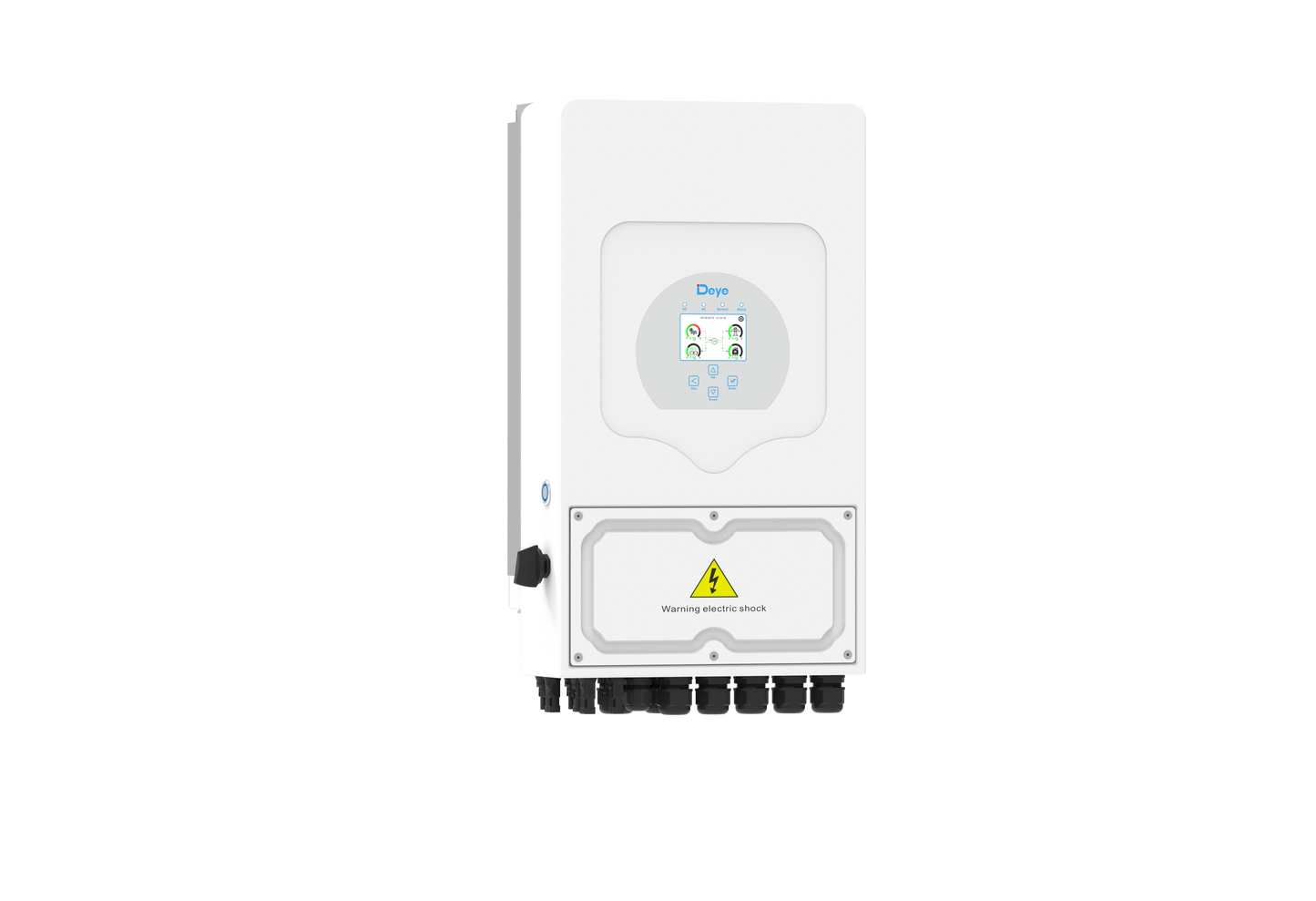

Deye Hybrid Inverter | SUN-8K-SG05LP1-AU-AM2-P
$3,699.00
Technical Specifications
Official model identity and platform data (from datasheet).
Model
SUN-8K-SG05LP1-AU
Product Type
Single Phase Hybrid Inverter
Grid Connection Form
L+N+PE
Parallel Operation
Max. 16pcs parallel for on-grid and off-grid operation
Ingress Protection
IP65
Warranty
10 Years
Battery-side data from the official datasheet.
Battery Type
Lead-acid or Li-Ion
Battery Voltage Range (V)
40-60
Max. Charging Current (A)
190
Max. Discharging Current (A)
190
External Temperature Sensor
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
Solar input data from the official datasheet.
Max. PV Input Power (W)
12000
Rated PV Input Voltage (V)
370 (125-500)
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150-425
Full Load PV Voltage Range (V)
200-425
PV Input Current (A)
26+26
Max. PV Isc (A)
39+39
Number of MPPT / Strings per MPPT
2/2+2
AC-side data from the official datasheet.
Rated AC Output and UPS Power (VA)
8000
Max. AC Output Power (W)
8000
AC Output Rated Current (A)
34.8
Max. AC Output Current (A)
34.8
Max. Continuous AC Passthrough (A)
50
Peak Power (off grid)
2 time of rated power, 10 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
230V/240V 0.85Un-1.1Un
Grid Connection Form
L+N+PE
Total Harmonics Current Distortion (THDi)
< 3% (of nominal power)
DC current injection
<0.5% In
Conversion efficiency from the official datasheet.
Max. Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
99.90%
Integrated protection from the official datasheet.
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
Over Voltage Category
DC Type II/AC Type III
General and environmental data from the official datasheet.
Operating Temperature Range
-40 to +60, >45 derating
Cooling
Natural cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
24.9
Size (mm)
330W x 580H x232D (Excluding connectors and brackets)
